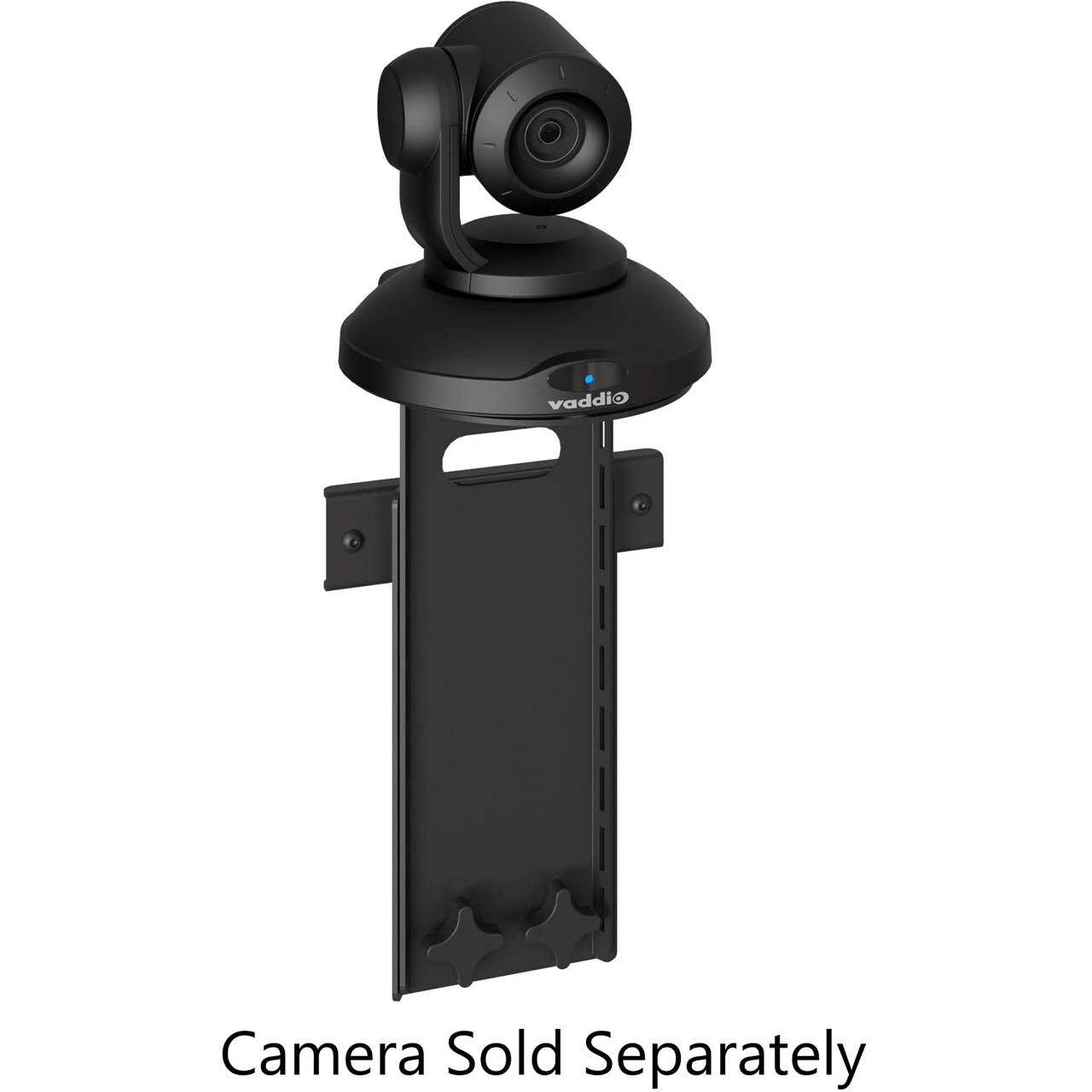

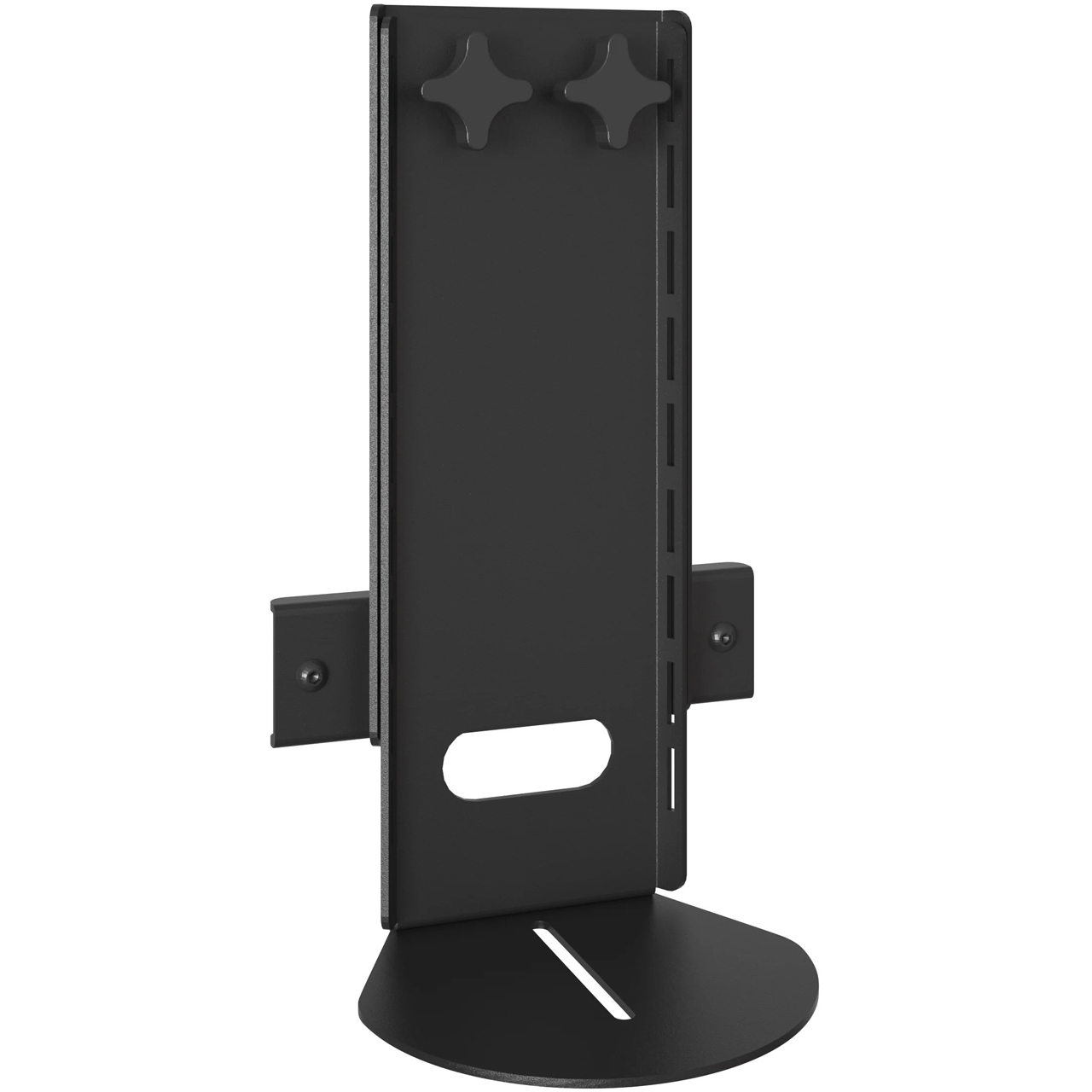

Chief AS3A100 Camera Shelf for Tempo Flat Panel Wall Mount System - 15 Pound Weight Capacity - Black

AS3A100 - Overview

• Features:

  • Camera shelf is 6" (152mm) and has a 3.28" (83mm) depth adjustment slot to facilitate placement of the camera using 1/4"-20 screw
  • Fits most cameras with 1/4"-20 tripod mounting hole
  • Quick and easy installation. The camera shelf glides and locks into place on the top or bottom rail of the Tempo Flat Panel Wall Mount System using strut channel nuts with captive screws.
  • Lateral shift allows you to position the camera shelf wherever you need it along the wall plate mounting rail
  • Toolless height-adjust knobs allow 6.27" (159mm) of travel to easily position the camera shelf at the right height above or below the display
  • Camera shelf can be installed between 12.7" (323mm) to 28.26" (718mm) of Tempo FP Wall Mount System center line
  • Window opening and slots along both sides of the vertical bracket facilitate cable management
  • Weight capacity of 15lbs (6.8kg)
  • Includes mounting bracket for Vaddio IntelliSHOT and ConferenceSHOT ePTZ cameras
  • Ships practically fully assembled! Just screw the shelf to the vertical bracket.


• Specifications:

  • Height: 12.53" (318mm) - 20.18" (513mm)
  • Manual Height Adjustment: 6.27" (159mm)
  • Weight Capacity: 15lbs (6.8kg)


• Warranty:

  • 10 Year Warranty


• GTIN:

  0841872177908
