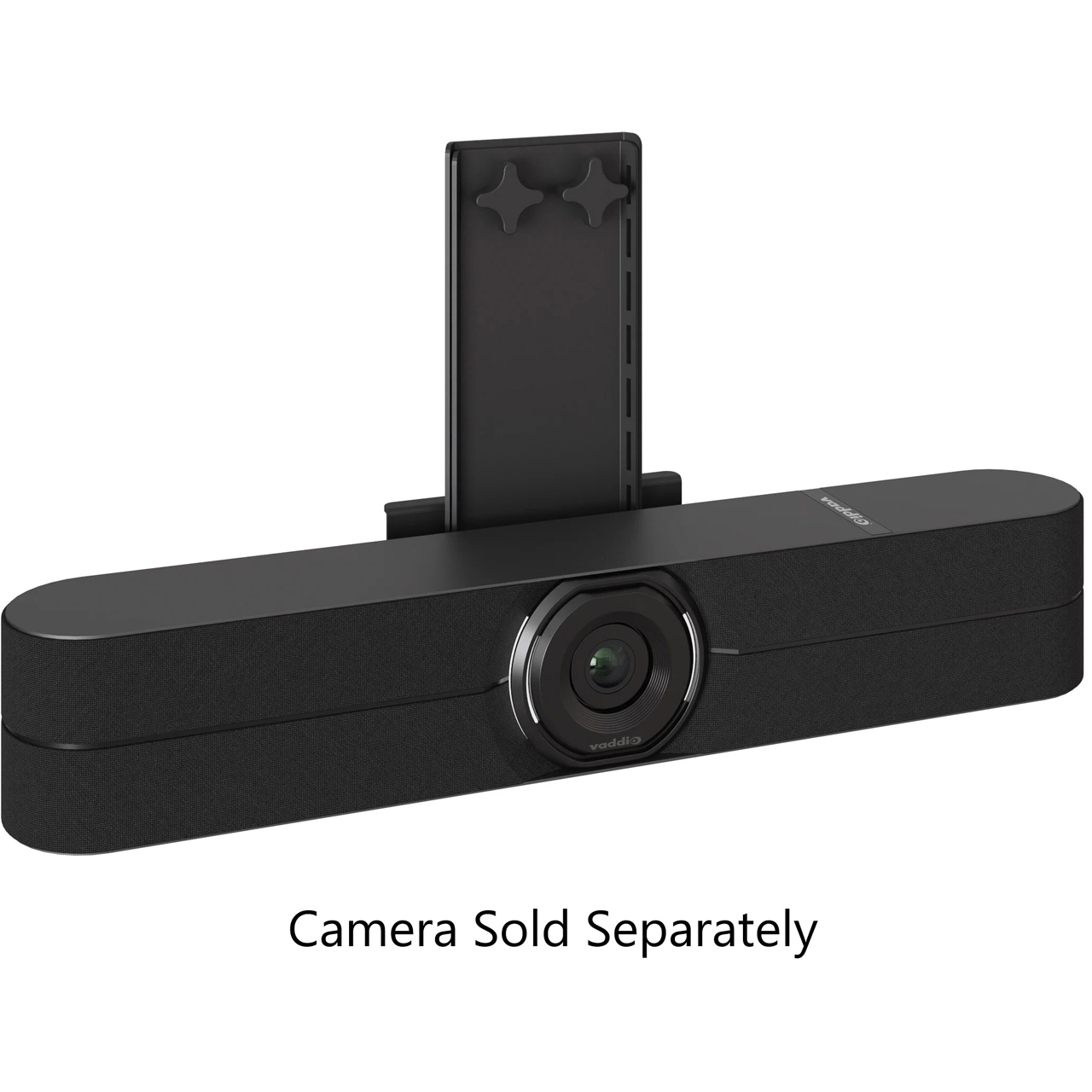

Chief AS3A101 Video-Sound Bar Mount for Tempo Flat Panel Wall Mount System - 20 Pound Weight Capacity - Black

AS3A101 - Overview

• Features:

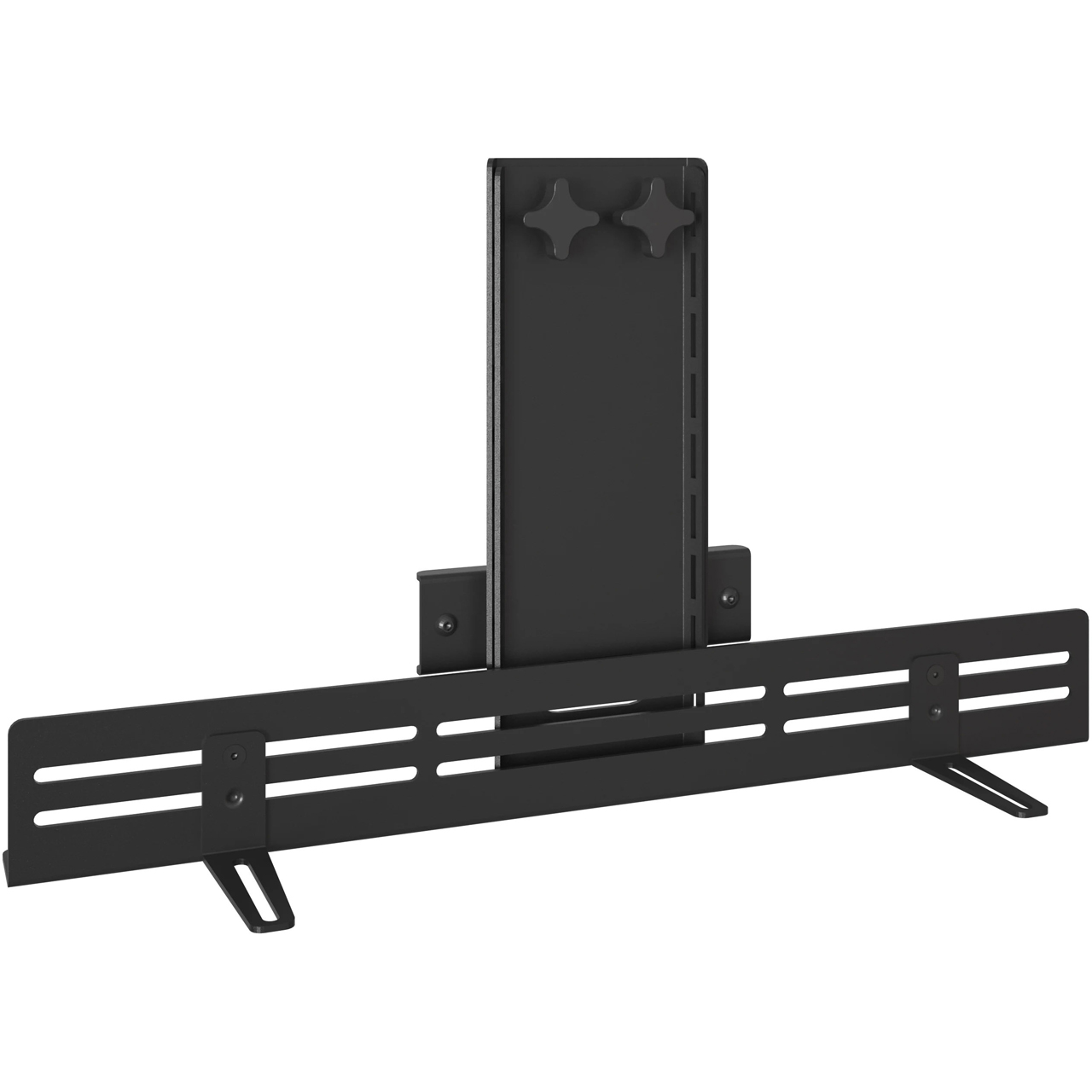

  • Video-sound bar interface bracket is 22.25" (565mm) wide by 2.88" (73mm) tall to avoid peek-a-boo with most video-sound bars. The ample 21.41" (544mm) wide slot allows you to secure most video-sound bars having rear mounting holes.
  • Quick and easy installation. The video-sound bar mount glides and locks into place on the top or bottom rail of the Tempo FP Wall Mount System using strut channel nuts with captive screws.
  • Lateral shift allows you to position the video-sound bar mount wherever you need it along the wall plate mounting rail
  • Toolless height-adjust knobs allow 6.27" (159 mm) of travel to easily position the camera shelf at the right height above or below the display
  • Video-sound bar mount can be installed between 9.75" (248mm) to 28.15" (715mm) of Tempo FP Wall Mount System center line
  • Window opening and slots along both sides of the vertical bracket facilitate cable management
  • Weight capacity of 20 lbs (9 kg) with video-sound bars mounted to interface bracket. When using "L" brackets to mount a video-sound bar the weight capacity is 15lbs (6.8kg).
  • Fits most video-sound bars having mounting holes in the back or bottom


• Specifications:

  • Height: 12.53" (318mm) - 22.96" (583mm)
  • Manual Height Adjustment: 6.27" (159mm)
  • Weight Capacity: 20lbs (9kg) when using interface bracket or 15lbs (6.8kg) when using "L" brackets


• Warranty:

  • 10 Year Warranty


• GTIN:

  0841872177915
