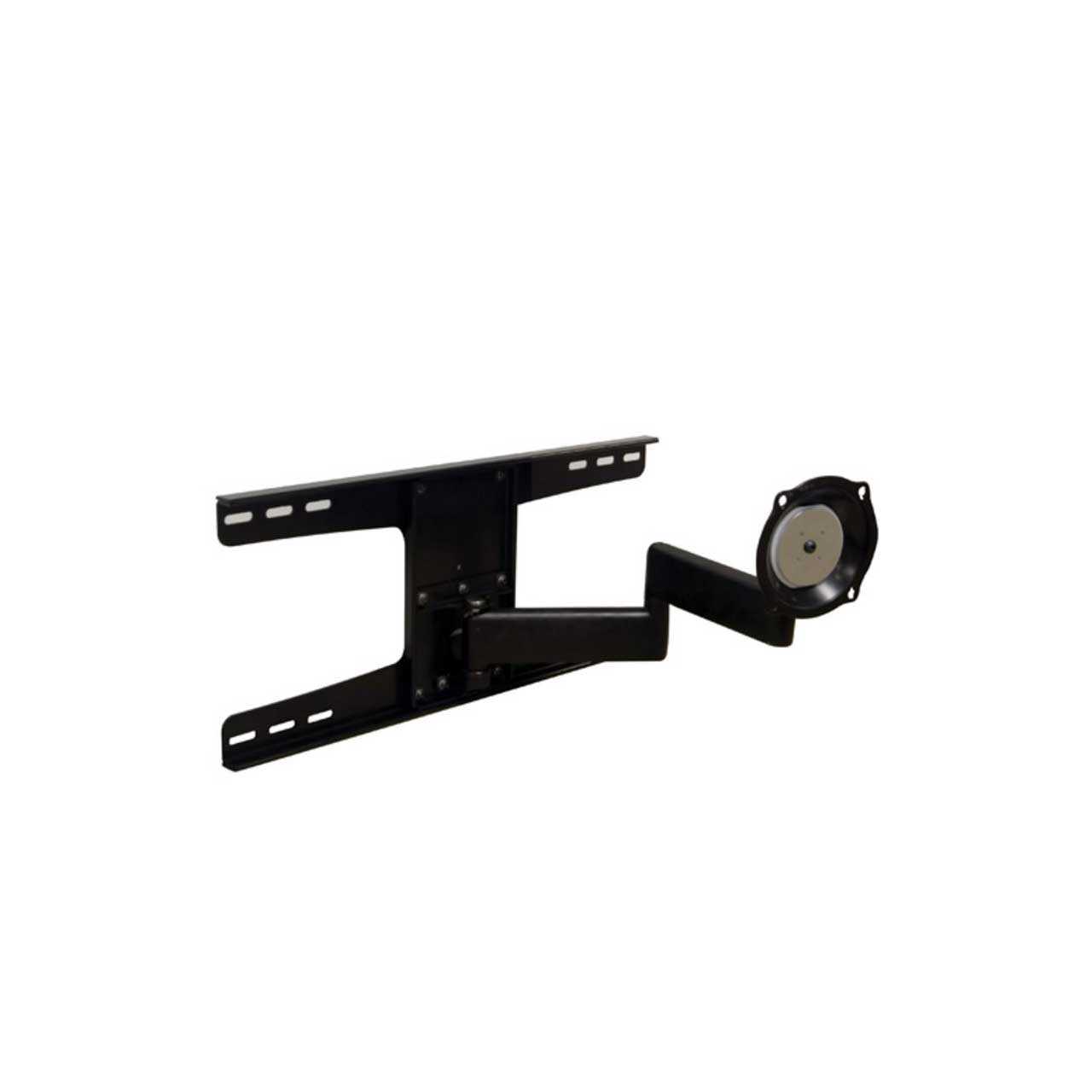

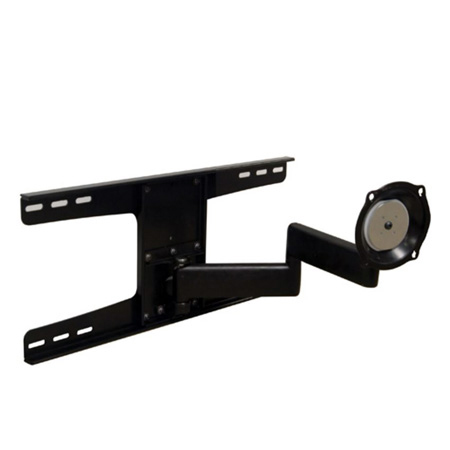

Chief Medium 20 Inch Arm Extension Wall Mount - Flat Panel Displays - Black

JWDSKVB - Overview

• Features:

  • Mounts a dual swing arm to 16" 20" or 24" on-center steel studs
  • Centris Technology provides smooth, fingertip tilt in any direction
  • Smooth extension over 20" (517 mm) to achieve the ideal viewing angle
  • Folds in close to the wall for a low-profile appearance
  • Quick, easy cable management
  • All mounting hardware included
  • VESA 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)


• Specifications:

  • Color: Black
  • Maximum Extension: 20.4"
  • Minimum Depth: 3.4"
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm
  • Notes: Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
  • Orientation: landscape
  • Overall Dimensions (HxWxD): 13.0" x 26.0" x 3.4"
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 28 lbs
  • Solution Type: Universal
  • Tilt: +15° / - 15°
  • Typical Screen Sizes: 26 - 45"
  • Wall Stud Compatibility: Metal Studs, LCM3X3U, 24
  • Weight Capacity: 75 lbs


• GTIN:

  0841872103938
