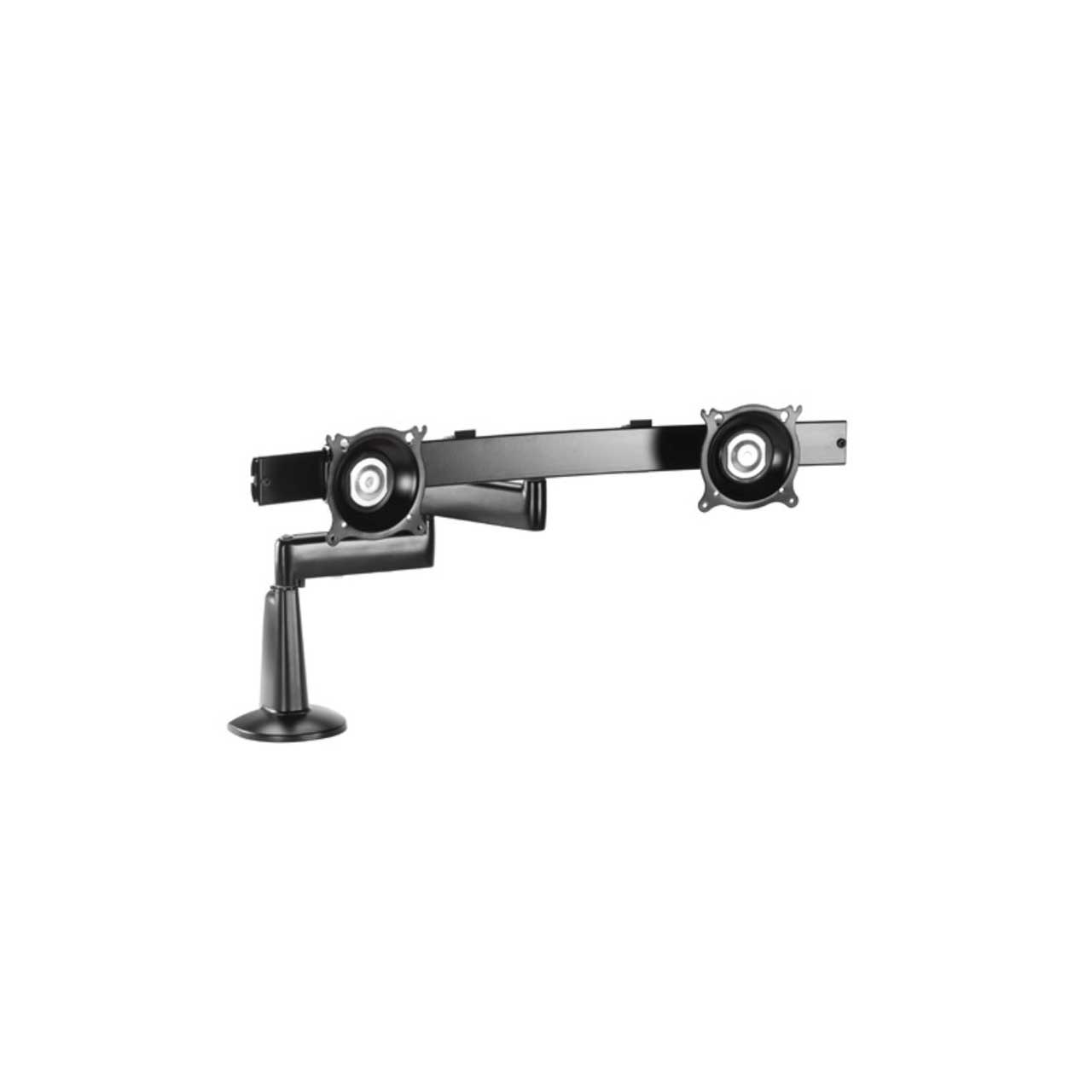

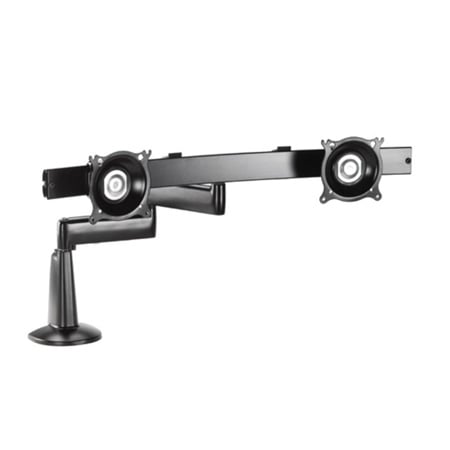

Chief Dual Arm Desk Mount - Dual-Display - Black

KCD220B - Overview

• Features:

  • Centris Technology provides smooth, fingertip tilt in all directions
  • Screen angle stays set until you decide to re-adjust
  • Clamp option allows mount to be installed from the top of the mounting surface
  • Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
  • Clean look with minimal hardware visible from underside of work surface
  • Independently adjustable tension at pivot points for customized control; tension can be optimized for touchscreen use
  • Quick, easy cable management with infinitely adjustable cable management clips
  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)


• Specifications:

  • Color: Black
  • Desktop Thickness Range: 0.5 - 3.5"
  • Grommet Hole Size Range: 0.38 - 3"
  • Maximum Extension: 20.5"
  • Minimum Depth: 6.4"
  • Mounting Pattern Compatibility (Universal Versions): 75 x 75mm ,100 x 100mm
  • Notes: Weight capacity is per monitor
  • Number Of Monitors: 2
  • Orientation: landscape and portrait
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 23 lbs
  • Solution Type: Universal
  • Tilt: + 15° , - 15°
  • TV Width Range: 10 - 22.7"
  • Typical Screen Sizes: 10 - 24"
  • Weight Capacity: 17 lbs


• GTIN:

  0841872044705
