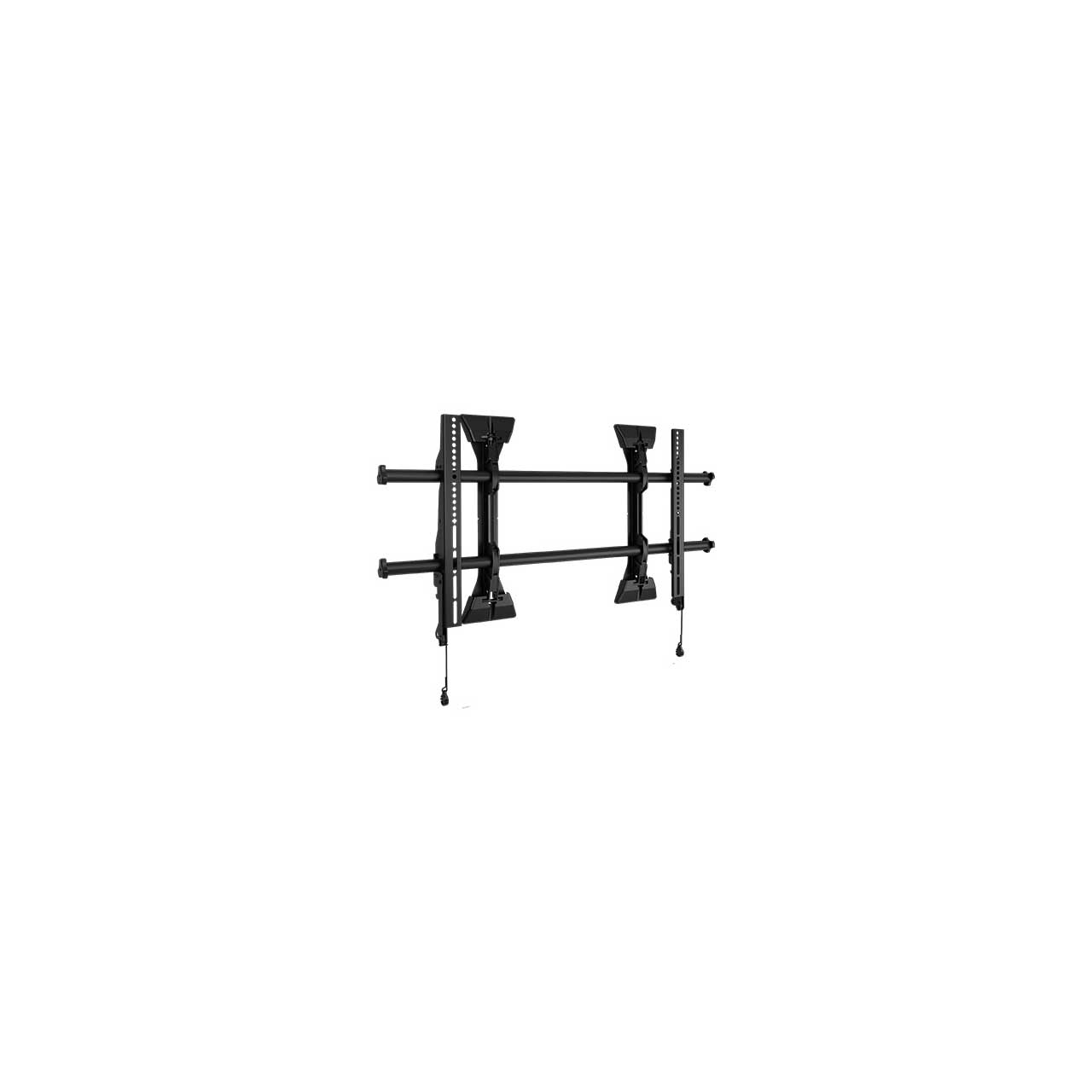

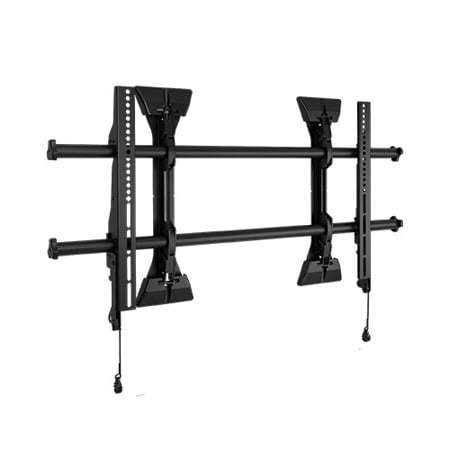

Chief Fusion Large Adjustable Fixed Wall Mount - Black

LSM1U - Overview

• Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 17.4" (441 mm)
  • Manual Height Adjustment: 1" (25 mm)
  • Minimum Depth: 2" (51 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 mm x 100 mm - 880 mm x 400 mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 18.25 x 34.75 x 2" (464 x 883 x 51 mm)
  • Shipping Weight: 19.37 lbs
  • Solution Type: Universal
  • Typical Screen Sizes: 37 - 63"
  • Wall Stud Compatibility (inches): 16-32
  • Weight Capacity: 200 lbs (91 kg)


• GTIN:

  0841872163260
