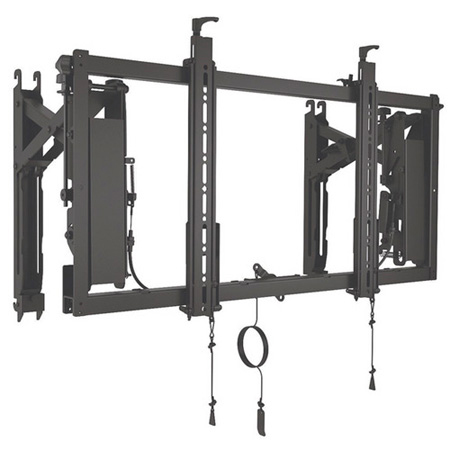

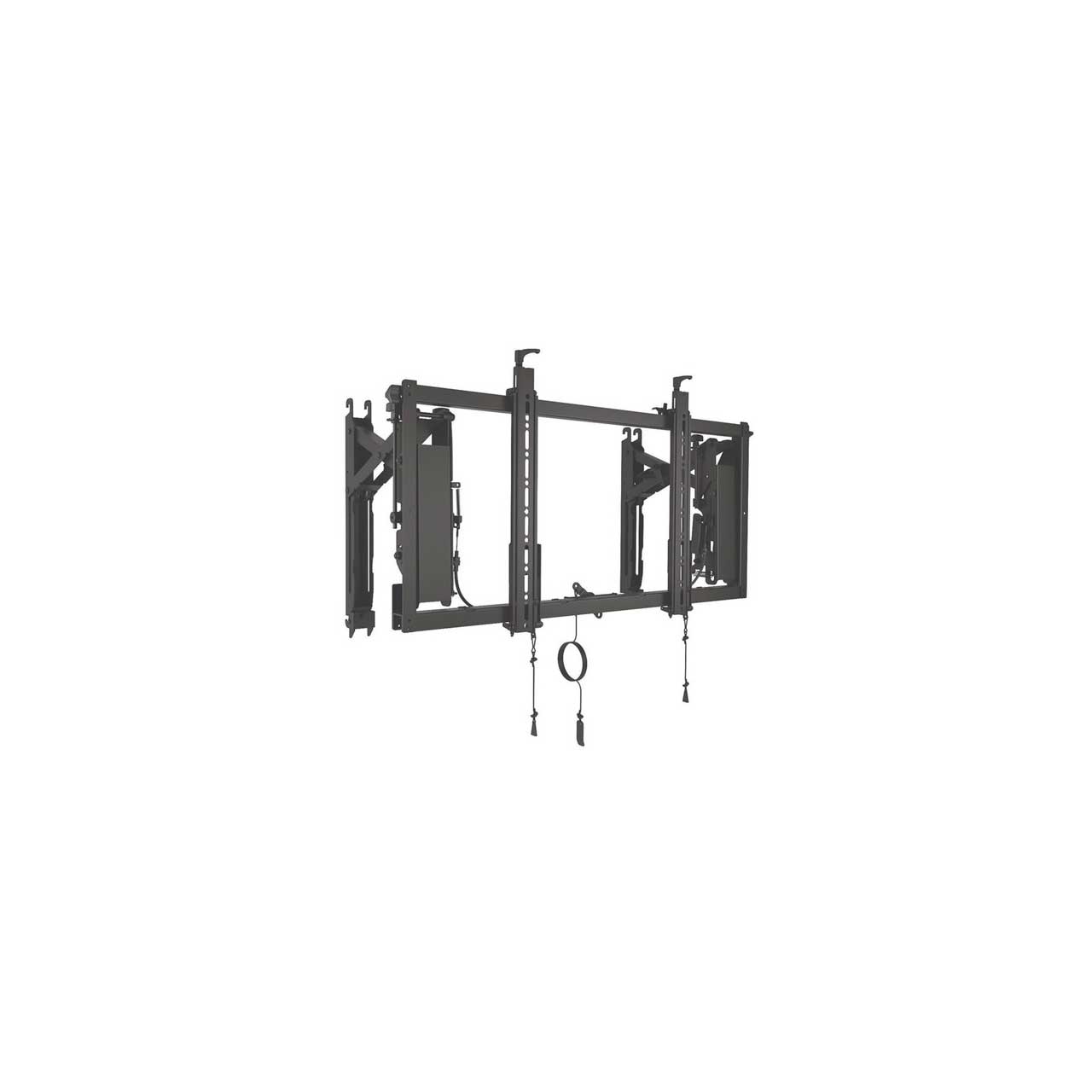

Chief ConnexSys Single Display Video Wall Mount - Black

LVSXU - Overview

• Features:

  • SPEED
  • Hang units on a single strut channel for quick row leveling
  • No need for horizontal spacers
  • Vertical measurement is simply the height of the display to the next rail
  • Compatible with most 1-5/8" sizes of channel strut
  • Reduces installation time - especially for XL and recessed configurations
  • Tool-free ClickConnect latching secures displays
  • PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount


  • ALIGNMENT
  • PowerZone Adjustments
  • Height adjustment ±1" on each interface
  • Tilt adjustment at single pivot point, protects displays from twisting
  • Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
  • Both sides adjust independently, compensating for imperfections in the wall
  • Walls can be out of alignment by up to 2" (horizontally)
  • 3 levels of lateral adjustment
  • 1.Mount left/right along rail
  • 2.Interface left/right along mount
  • 3.Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions


  • SERVICEABILITY
  • RapidDraw Display Release
  • Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
  • Protects displays by not requiring an aggressive push to release/pop-out
  • Releases only on demand, preventing accidental pop-outs
  • Cord can be set up to pull for release from any 90 degree angle
  • Kickstand provides 20 degrees of bottom tilt access


  • RIGIDITY
  • Rigid frame keeps displays where you set them, even after extending for service
  • Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes


  • MISCELLANEOUS
  • Security - pad lock 1/4" shank diameter
  • Safety tested
  • Universal interface
  • Each mount comes out of the box with adjustments set in the exact same position


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Manual Height Adjustment: ± 1"
  • Maximum Extension: 13.4" (34.0 cm)
  • Minimum Depth: 4"
  • Mounting Pattern Compatibility (Universal Versions): 200 x 100 - 700 x 400 mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 21.8 x 35.5 x 4.0" (554 x 903 x 102 mm)
  • Shipping Weight: 37.00 lbs
  • Solution Type: Universal
  • Tilt: + 4.0°, -2.5°
  • Typical Screen Sizes: 42 - 80"
  • Weight Capacity: 150 lbs (68 kg)


• GTIN:

  0841872161174
