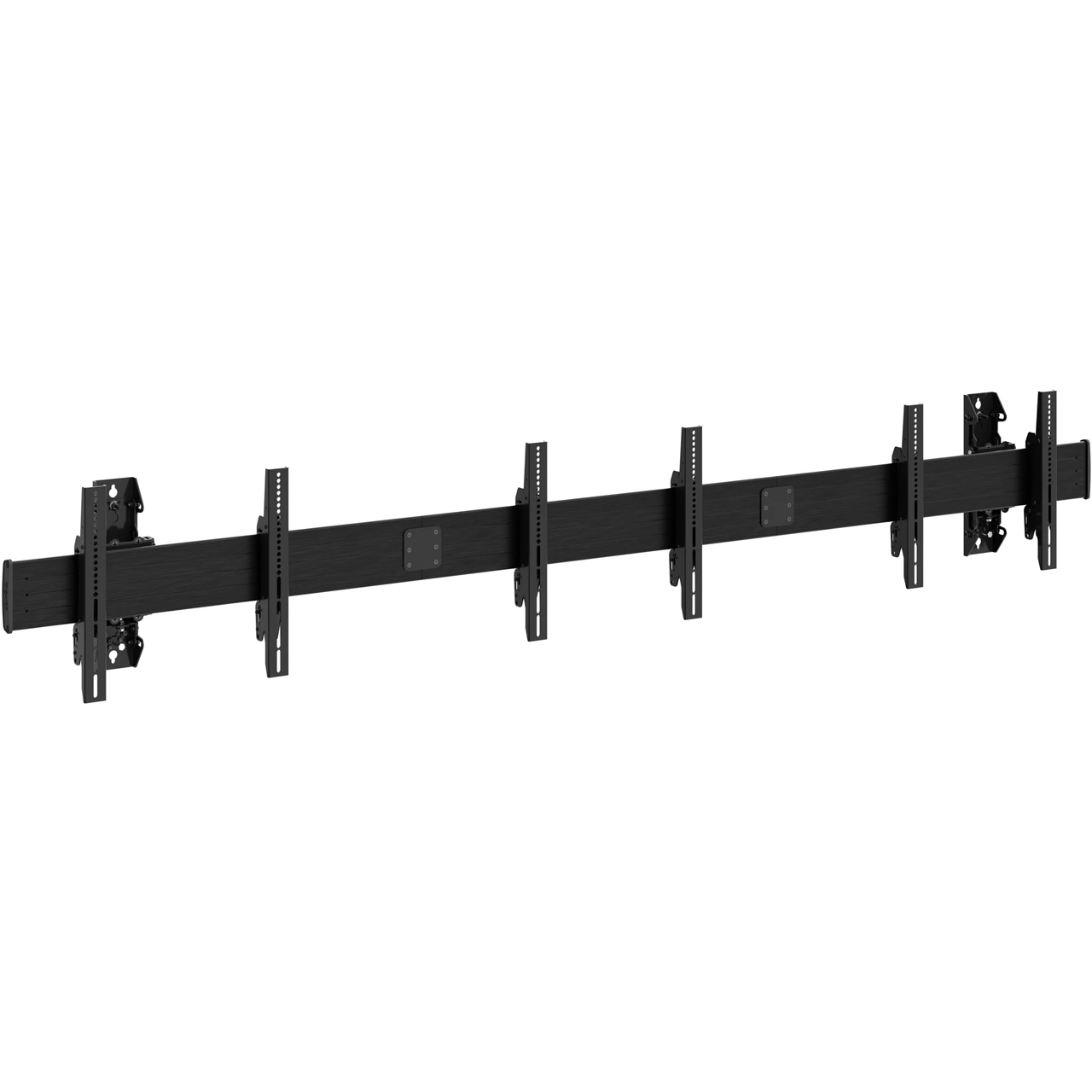

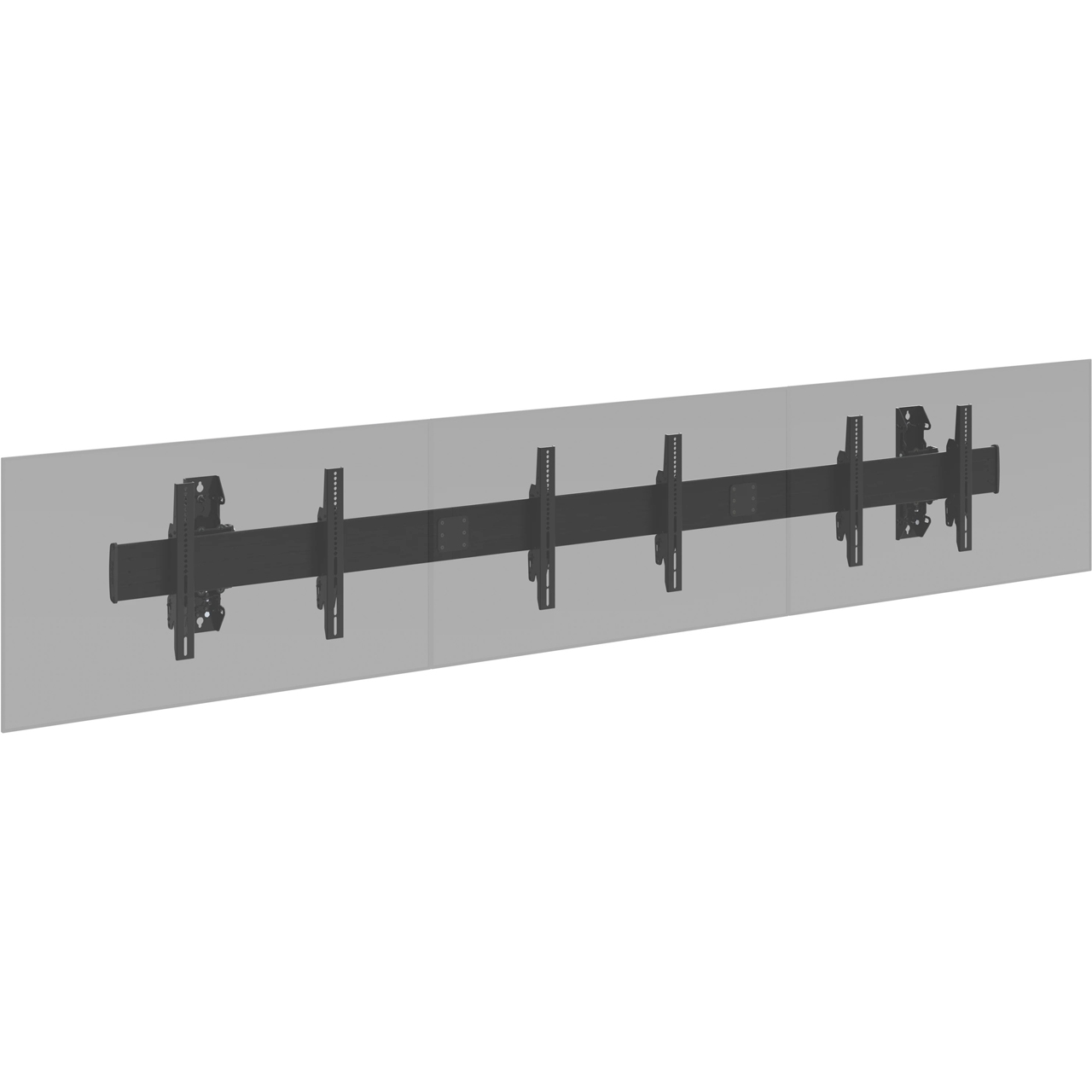

Chief LWM3X1UM Fusion Large Wall 3x1 Modular Multi Display Menu Board Mount - Landscape - 25 Pound Weight Capacity

LWM3X1UM - Overview

• Features:

  • ControlZone micro-height adjustment
  • Centris tilt between +0° and -20°
  • Tool-free screen engagement
  • Portrait and landscape options for 2x1 and 3x1 configurations
  • Landscape for 4x1 and 5x1 configurations
  • Accommodate 40" - 55" screens
  • Optional padlock security
  • Full line of accessories that work across Fusion wall, ceiling and freestanding lines

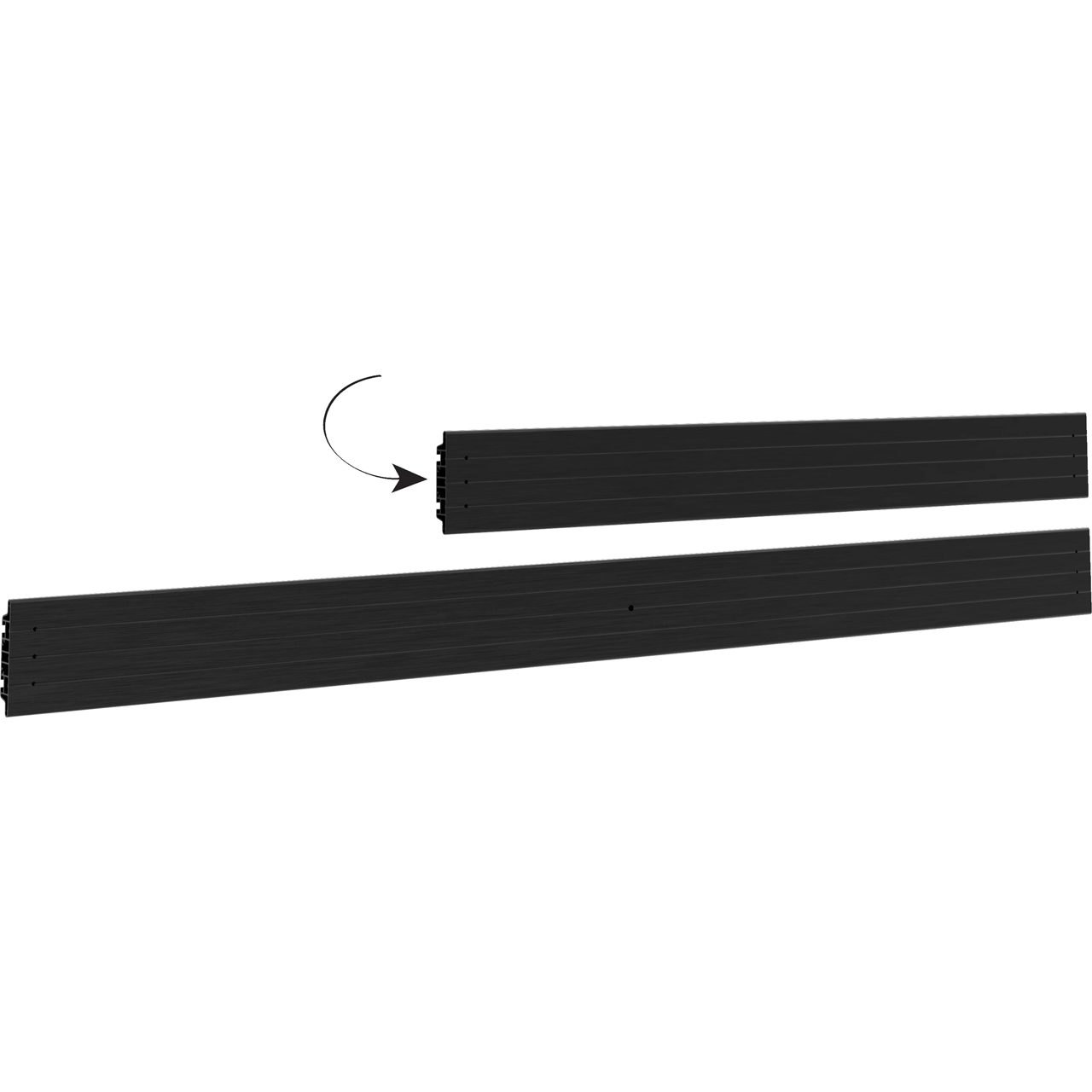

  • Shorter, modular extrusions with installation connectors
  • Compact packaging fits on standard-sized pallets for easy shipping


• Specifications:

  Dimensions & Measurements
  • Depth: 10
  • Height: 49
  • Minimum Depth: 5.8" (14.7cm)
  • Overall Dimensions: 49" x 18.5" x 10"
  • Shipping Weight: 36.7lbs (16.7kg)
  • Weight Capacity: 125lbs (56.7kg)
  • Width: 18.5

    Characteristics & Features
  • Adjustability: Tilt, Height Adjustable, Lateral Shift
  • Application: Wall
  • Array Configuration: 3x1
  • Color: Black
  • Number of Displays: 3
  • Orientation: Landscape
  • Post-Installation Leveling Roll: Dependant upon wall spacing
  • Solution Type: Universal
  • Special Features: Modular, Multi-Display
  • Tilt: +0°/-20°
  • Certifications: UL Listed


• Warranty:

  • 10 Year Warranty


• GTIN:

  0841872178226
