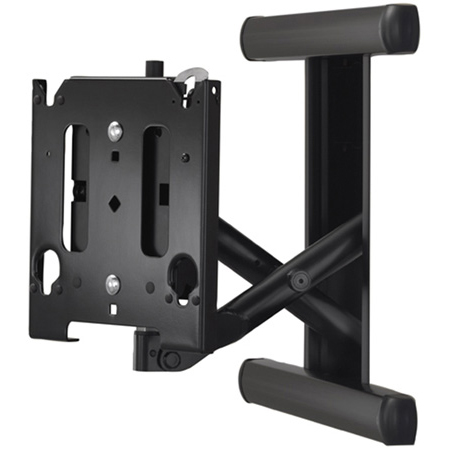

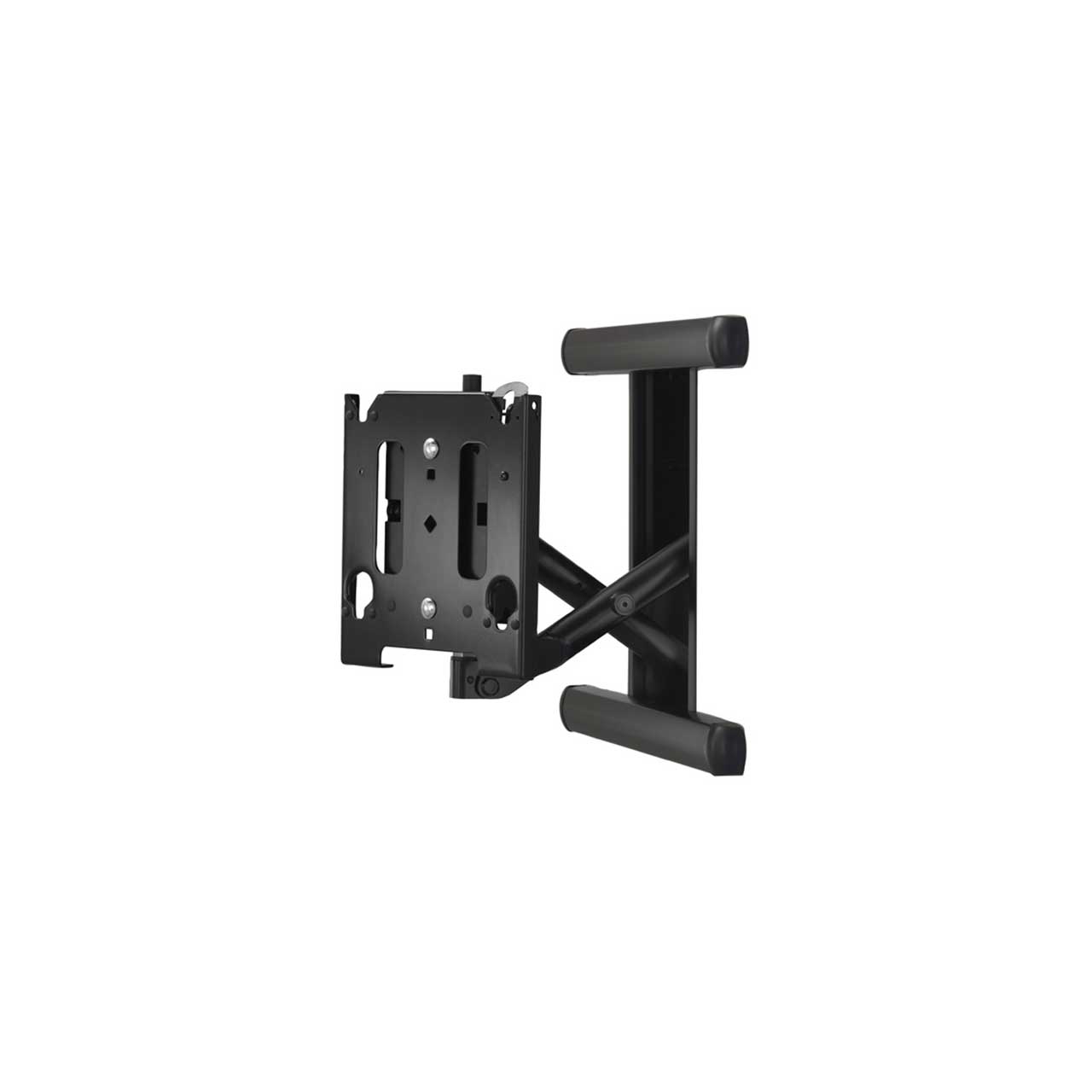

Chief MIWRFUB Medium Low-Profile In-Wall Swing Arm Mount - 10 Inch

MIWRFUB - Overview

• Features:

  • Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
  • Low-profile design hides the mount behind the display
  • Centris Technology provides smooth, fingertip tilt
  • Provides post-installation height adjustment
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management
  • Ships as complete in-wall swing arm - zero assembly required


• Specifications:

  • Color: Black
  • Lateral Shift: 5" (127.mm)
  • Manual Height Adjustment1" (25 mm)
  • Maximum Extension: 10" (254 mm)
  • Minimum Depth: 1.7" (43.2 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
  • Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation: landscape and portrait
  • Pivot Numerical Value: +/- 37.5° (depending on screen width)
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 49.5 lbs (22.45 kg)
  • Solution Type: Universal
  • Tilt+ 2° , - 15°
  • Typical Screen Sizes: 30 - 55"
  • Wall Stud Compatibility In: 16" (406 mm)
  • Weight Capacity: 125 lbs (56.7 kg)


• GTIN:

  0841872110646
