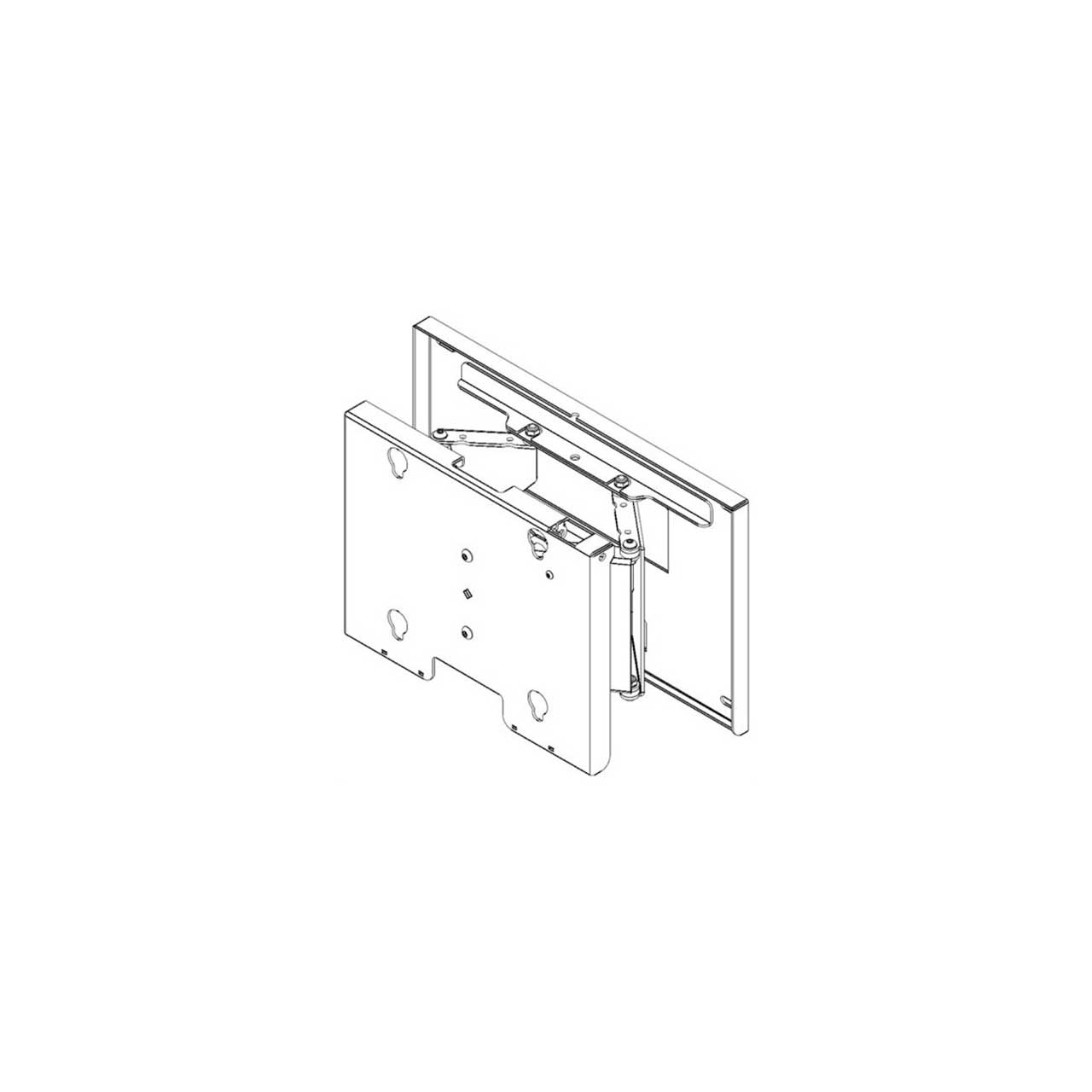

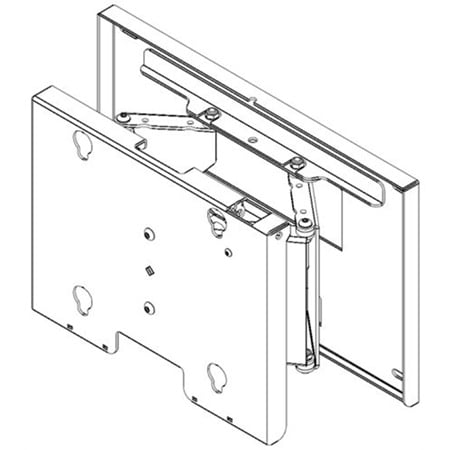

Chief MPTUB Medium Flat Panel Swing Arm Wall Display Mount - 9 Inch Extension

MPTUB - Overview

• Features:

  • Up to 9.69" (246.1 mm) extension
  • Ultra low-profile 1.88" (47.6 mm) deep in home position
  • 10 degrees forward tilt and 5 degrees backward tilt
  • 45 degrees of swivel in either direction (dependent on screen size)
  • Ships with a universal interface bracket
  • Installs on 16" center studs, single or dual wood stud installation/dual steel stud installation
  • Simple cable management
  • Integrated lateral shift for repositioning the mount right or left after installation for amazing positioning flixibility.
  • Display can be installation in portrait or landscape position. PAC 400 or MAC400 accessory can be used to rotate without removing the screen.


• Specifications:

  • Color: Black
  • Lateral Shift: 0.75" (19.1mm)
  • Maximum Extension: 9.7" (246.4 mm)
  • Minimum Depth: 1.9" (48.3 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
  • Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation: landscape and portrait
  • Overall Dimensions (H x W x D): 11.3" x 18.0" x 1.9" (287 x 457 x 48mm)
  • Shipping Weight: 34.7 lbs (15.74 kg)
  • Solution Type: Universal
  • Tilt+ 5° , - 10°
  • Typical Screen Sizes: 30 - 55"
  • Wall Stud Compatibility In: 16" (406 mm)
  • Weight Capacity: 125 lbs (56.7 kg)


• GTIN:

  0841872145211
