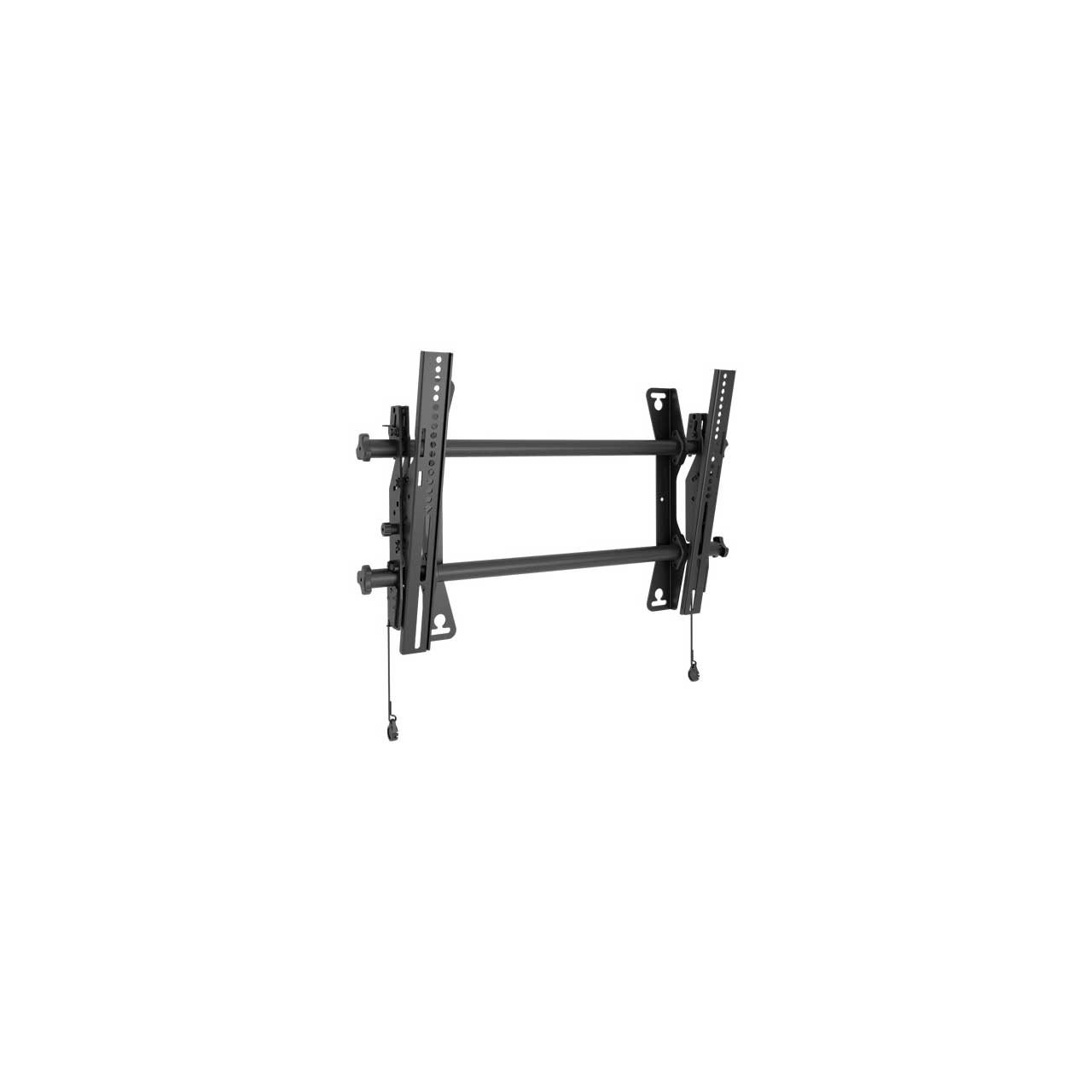

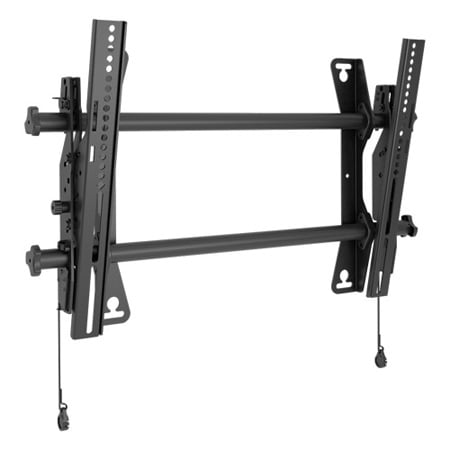

Chief Fusion Medium Tilt TV Wall Mount - Black

MTA1U - Overview

• Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering
  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 12.9" (327 mm)
  • Maximum Screen Thickness: 6"
  • Minimum Depth: 2" (51 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm - 640 x 400 mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 16.5 x 25.75 x 2" (419 x 654 x 51 mm)
  • Shipping Weight: 15.86 lbs
  • Solution Type: Universal
  • Tilt: +2°, -12°
  • Typical Screen Sizes: 26 - 47"
  • Wall Stud Compatibility (inches): 16-24
  • Weight Capacity:125 lbs (56.8 kg)


• GTIN:

  0841872163741
