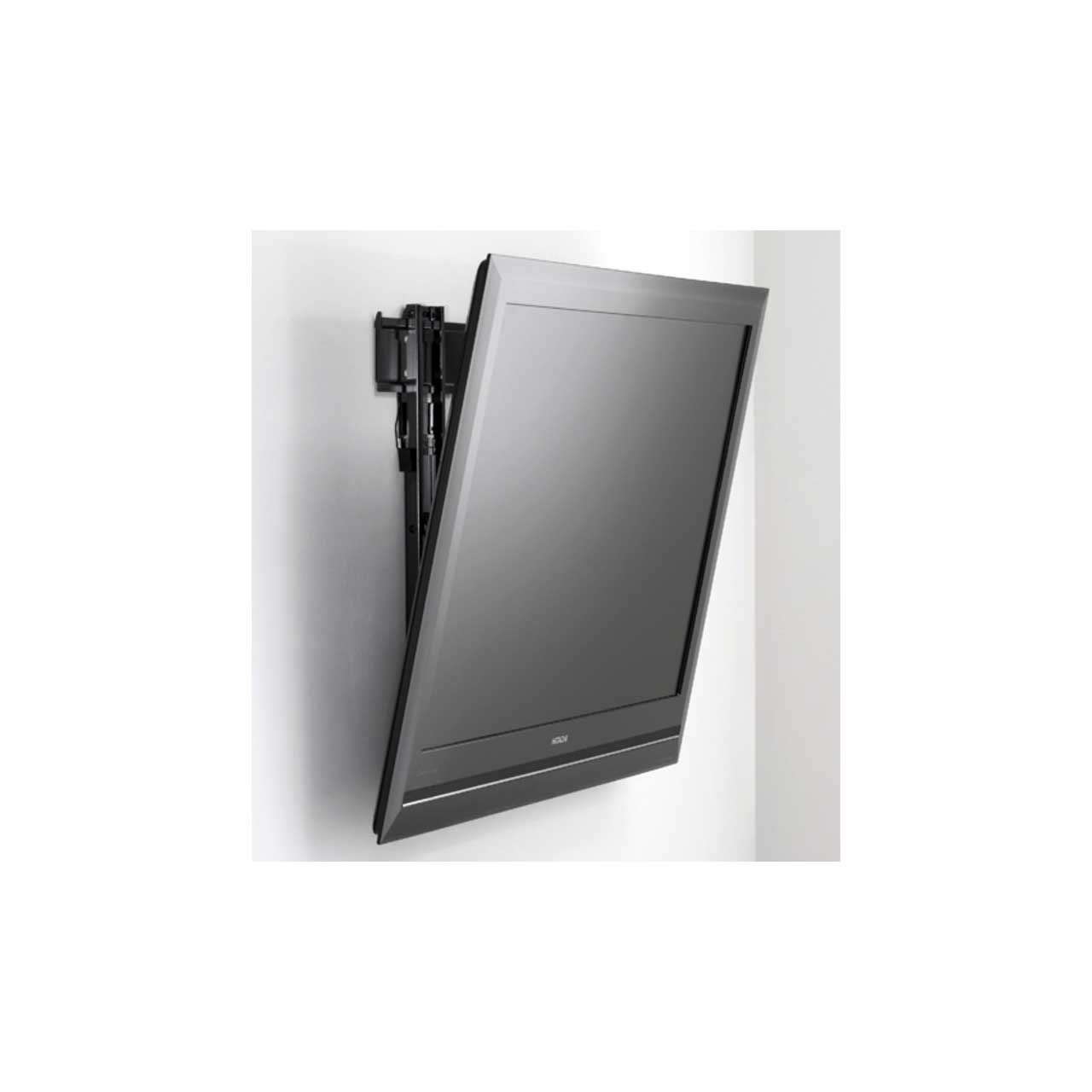

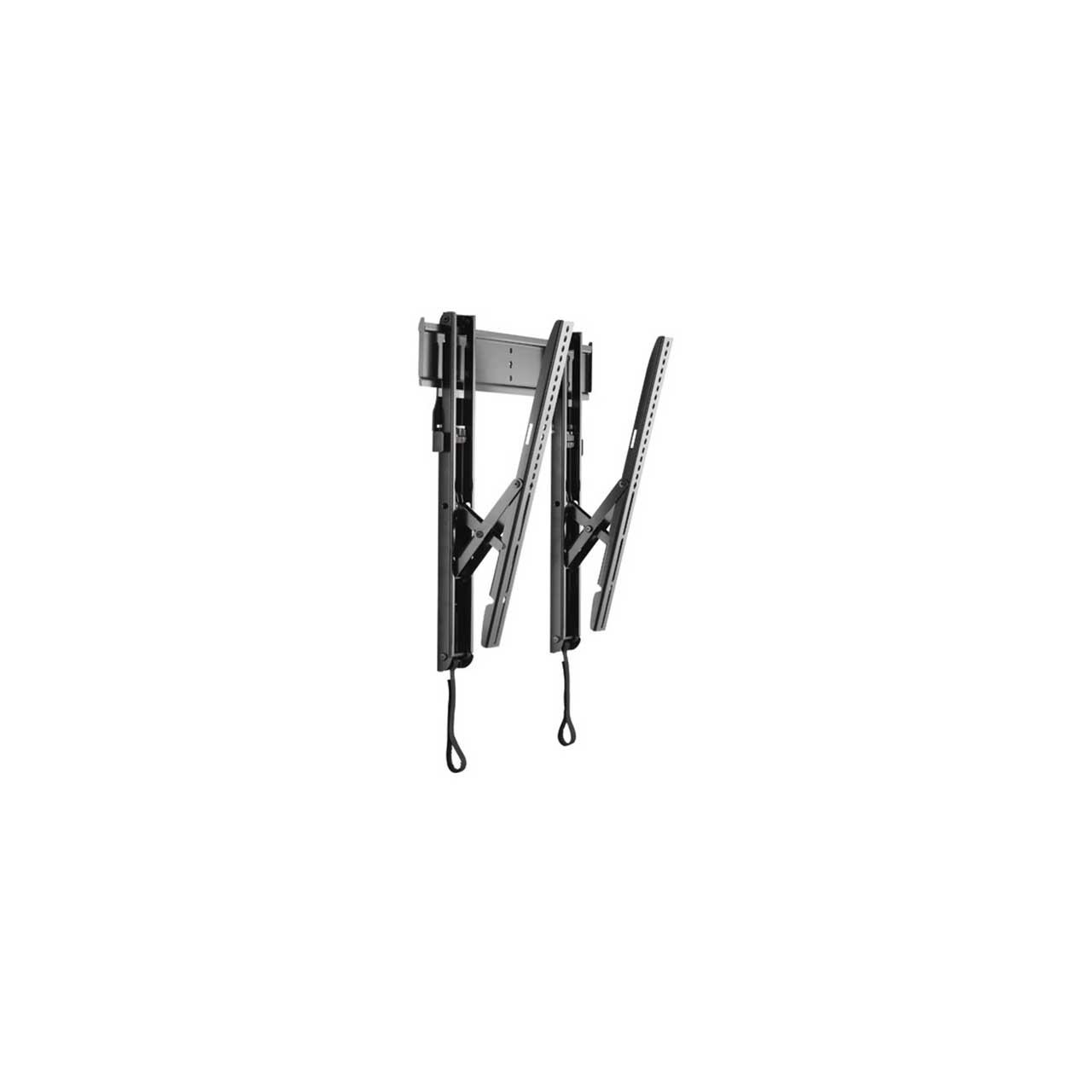

Chief Thinstall 26-47 Inch Display Medium Tilt TV Wall Mount

MTTU - Overview

• Features:

  • Designed specifically for and only compatible with new ultra-thin TVs 2" (51 mm) deep or less
  • Ultra low-profile design compliments ultra-thin flat panel TVs
  • Provides 12° of smooth, fingertip tilt
  • GlideLock provides tool-less latching for faster installation
  • Consists of one-piece steel bracket with two tilting interfaces
  • Each interface includes a sliding flat for increased security
  • Features a cable stand and bottom pullout for cable access
  • Provides lateral shift for increased flexibility
  • Can be installed in landscape mode only


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: Depends on mounting pattern of screen
  • Maximum Screen Thickness: 2" (51 mm)
  • Minimum Depth: 0.75" (19.1mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 600 x 400mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 17.6" x 27.8" x 0.8" (448 x 706 x 19mm)
  • Shipping Weight: 12.55 lbs
  • Solution Type: Universal
  • Tilt: + 0° , - 12°
  • Typical Screen Sizes: 26 - 47"
  • Wall Stud Compatibility (inches): 16
  • Weight Capacity: 100 lbs (45.4kg)


• GTIN:

  0841872117232
