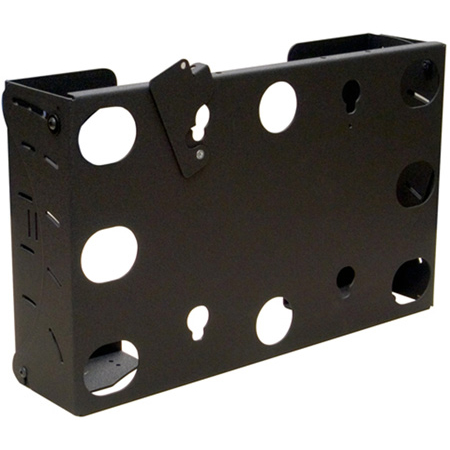

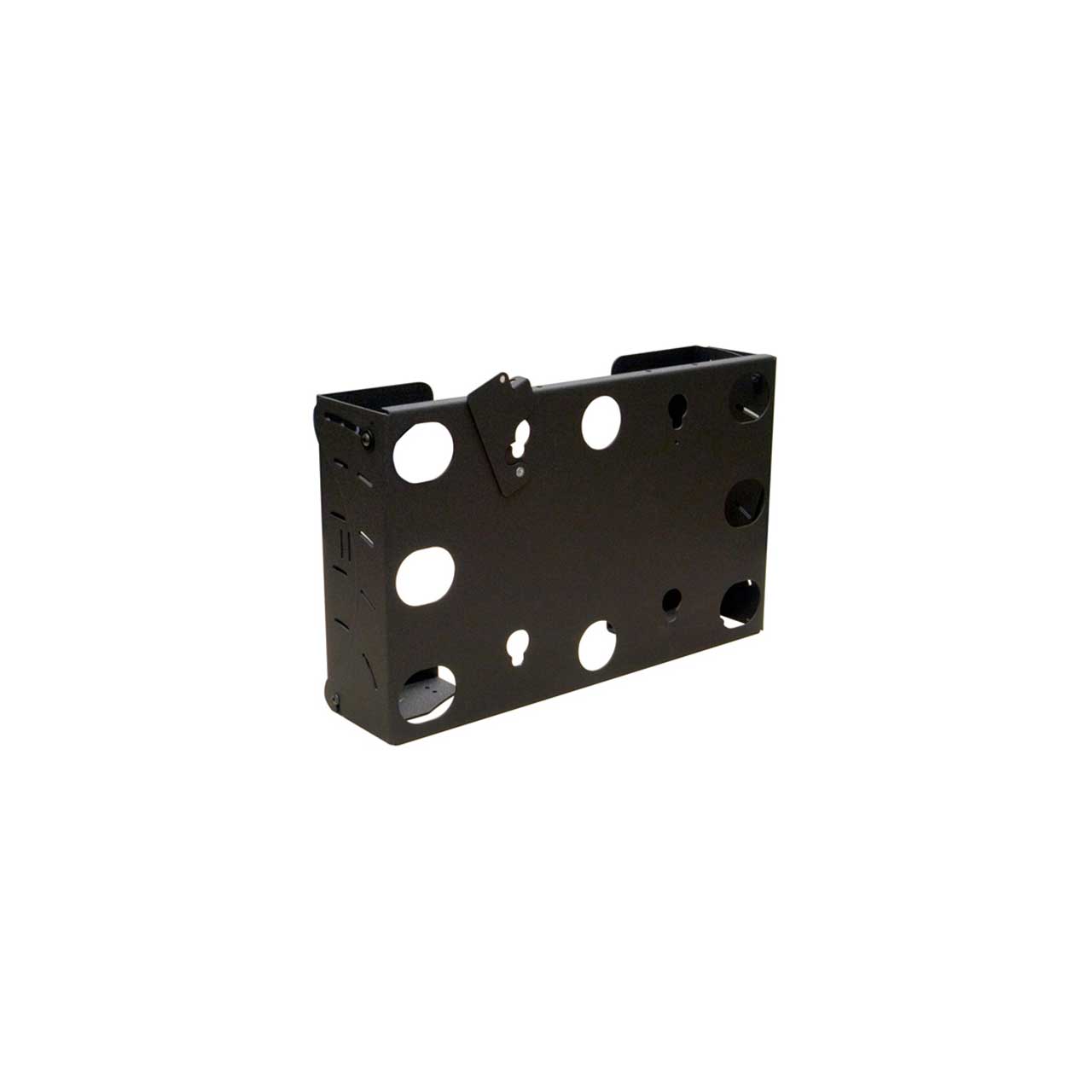

Chief MWCV Medium Tilt Mount with CPU Storage

MWCV - Overview

• Features:

  • Complete solution designed to easily integrate a media player into a flat panel installation
  • Provides lockable tilt at 0, 5, 10 and 15°
  • Integrated lateral shift up .75" left or right of 16" center stud system
  • 200 mm Q-Latch installation
  • Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
  • TAA Compliant


• Specifications:

  • Certifications: TAA Compliant
  • Color: Black
  • Lateral Shift: 1.5" (38.1mm)
  • Max Equip Size H x W x D: 14" x 18.82" x 3.82" (356 x 478 x 97 mm)
  • Maximum Screen Thickness: 6"
  • Minimum Depth: 4.5" (114.3mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm
  • Number Of Monitors: 1
  • Orientation: landscape and portrait
  • Shipping Weight: 19.75 lbs (8.96 kg)
  • Solution Type: Universal
  • Tilt: + 0° , - 15°
  • Typical Screen Sizes: 26 - 55"
  • Wall Stud Compatibility In: 16" (406 mm)
  • Weight Capacity: 100 lbs (45.4 kg)


• GTIN:

  0841872072715
