Chief Thinstall 18 Inch Extension Monitor Arm Wall Mount - Black

TS118SU - Overview

• Features:

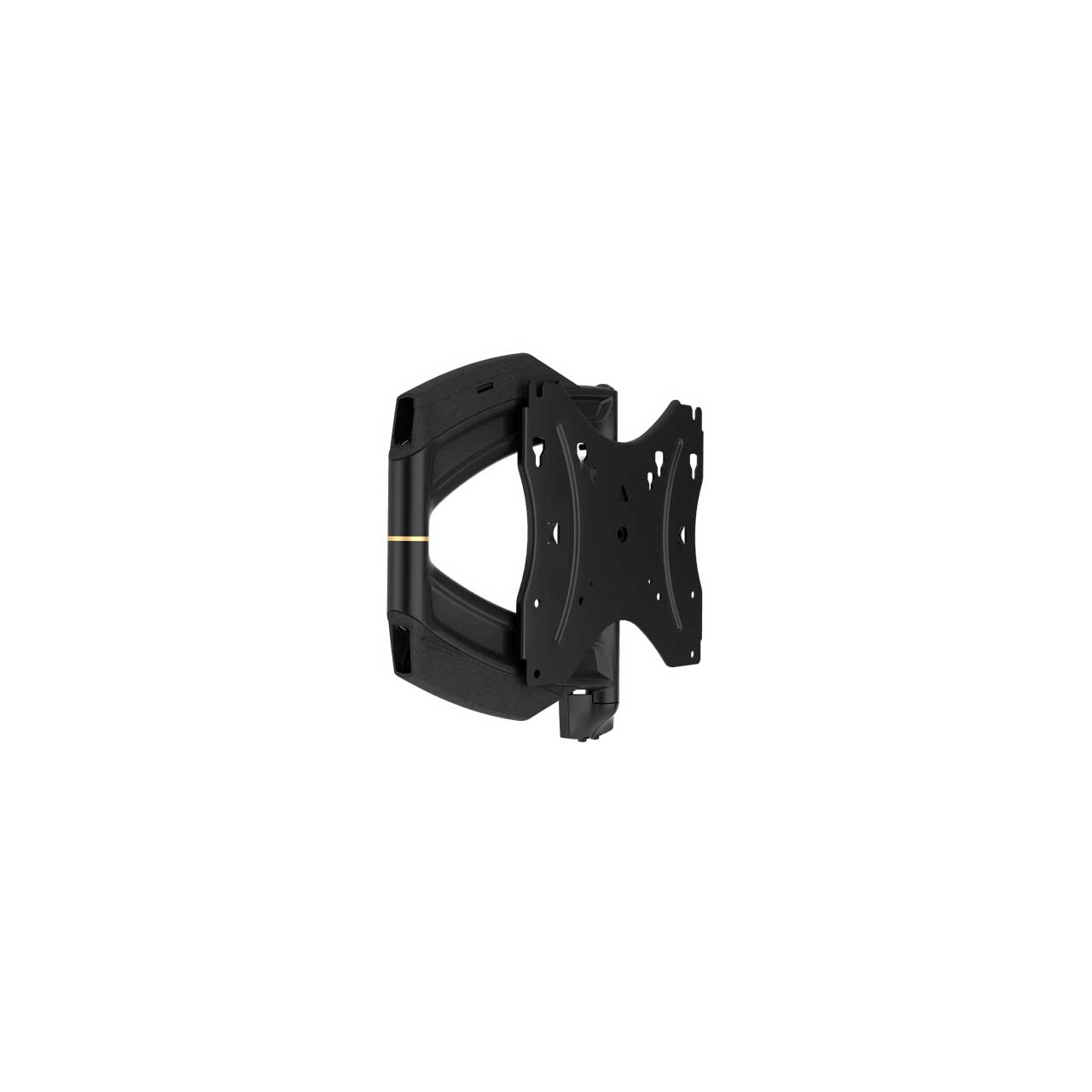

  • Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.

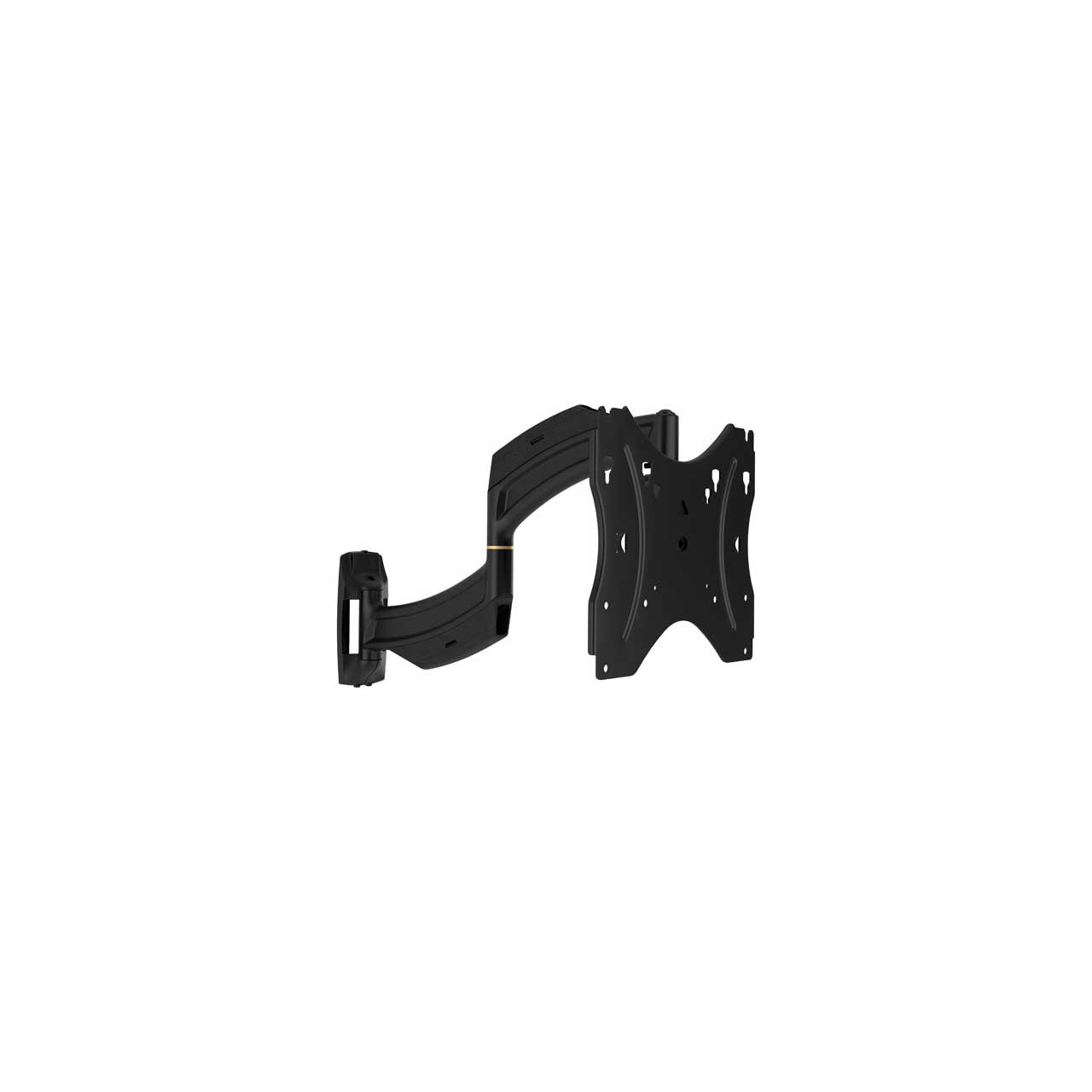

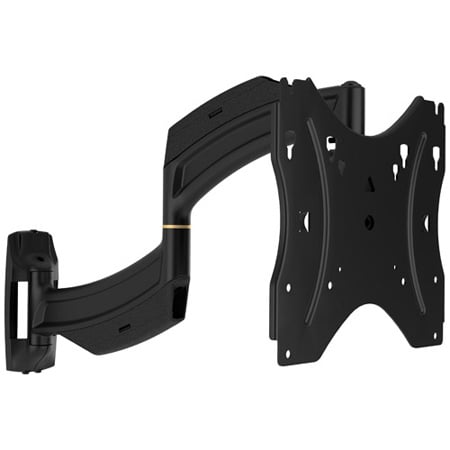

  • Extends up to 18" (457 mm) Full extension maximizes viewing potential.
  • Centris low-profile tilt Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
  • Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Maximum Extension: 18.0" (457mm)
  • Maximum Screen Thickness: 5" (127mm)
  • Mounting Pattern Compatibility (Universal Versions): 75 x 75, 100 x 100, 200 x 100, 200 x 200mm
  • Orientation: Landscape, Portrait
  • Overall Dimensions (H x W x D): 11.6" x 13" x 1.5" (294 x 330 x 38mm)
  • Pivot (numerical value): ±90° (depending on screen width)
  • Post-Installation Leveling (Roll): Yes
  • Shipping Weight: 8.00 lbs
  • Solution Type: Universal
  • Tilt: + 0° , - 12°
  • Typical Screen Sizes: 10 - 32"
  • Wall Stud Compatibility (inches): Single Stud
  • Weight Capacity: 35 lbs (15.9kg)


• GTIN:

  0841872153551
