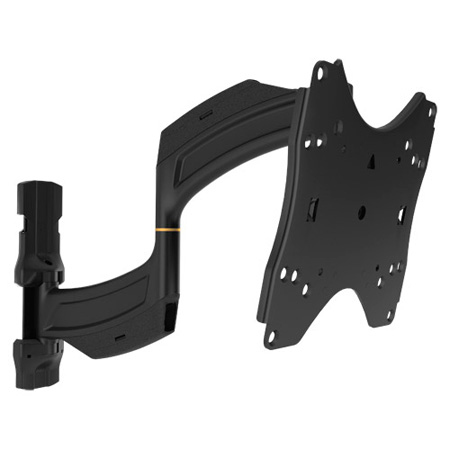

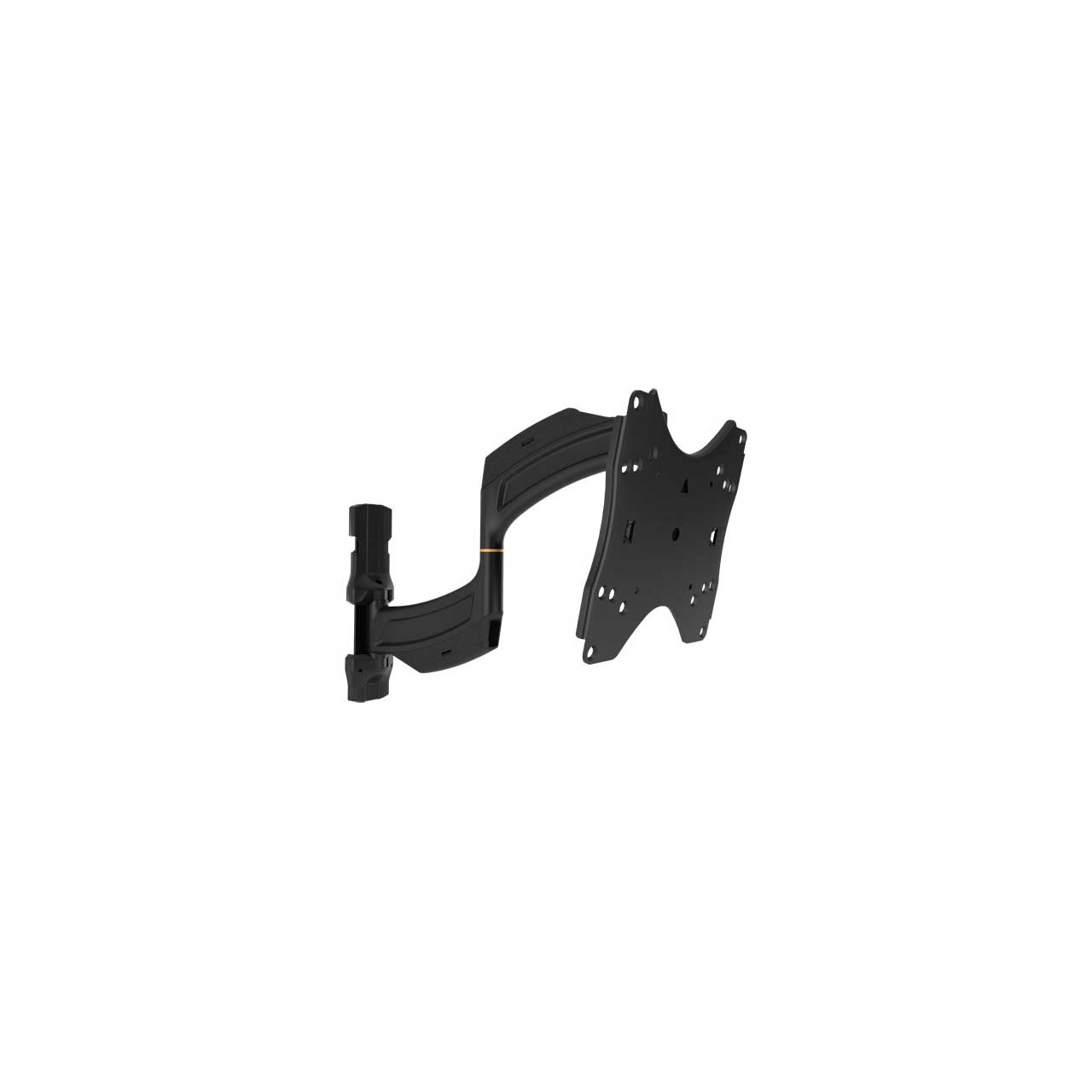

Chief Thinstall 18 Inch Arm Extension Wall Mount - Black

TS218SU - Overview

• Features:

  • Ultra Low Profile: Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
  • Extends up to 18" (457 mm): Full extension maximizes viewing potential.
  • Centris low-profile tilt: Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
  • Integrated Cable Management: Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.
  • Post Installation Height Adjustment: A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Manual Height Adjustment: 1" (25mm)
  • Maximum Extension: 18.0" (456 mm)
  • Maximum Screen Thickness: 5" (127mm)
  • Minimum Depth: 1.5" (38 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200 and 400 x 400mm
  • Orientation: Landscape, Portrait
  • Overall Dimensions (H x W x D): 14" x 13" x 1.5" (356 x 330 x 38 mm)
  • Pivot (numerical value): ±90° (depending on screen width)
  • Post-Installation Leveling (Roll): Yes
  • Shipping Weight: 13.00 lbs
  • Solution Type: Universal
  • Tilt: + 0° , - 12°
  • Typical Screen Sizes: 26 - 47"
  • Wall Stud Compatibility (inches): Single Stud
  • Weight Capacity: 75 lbs (34 kg)


• GTIN:

  0841872152448
