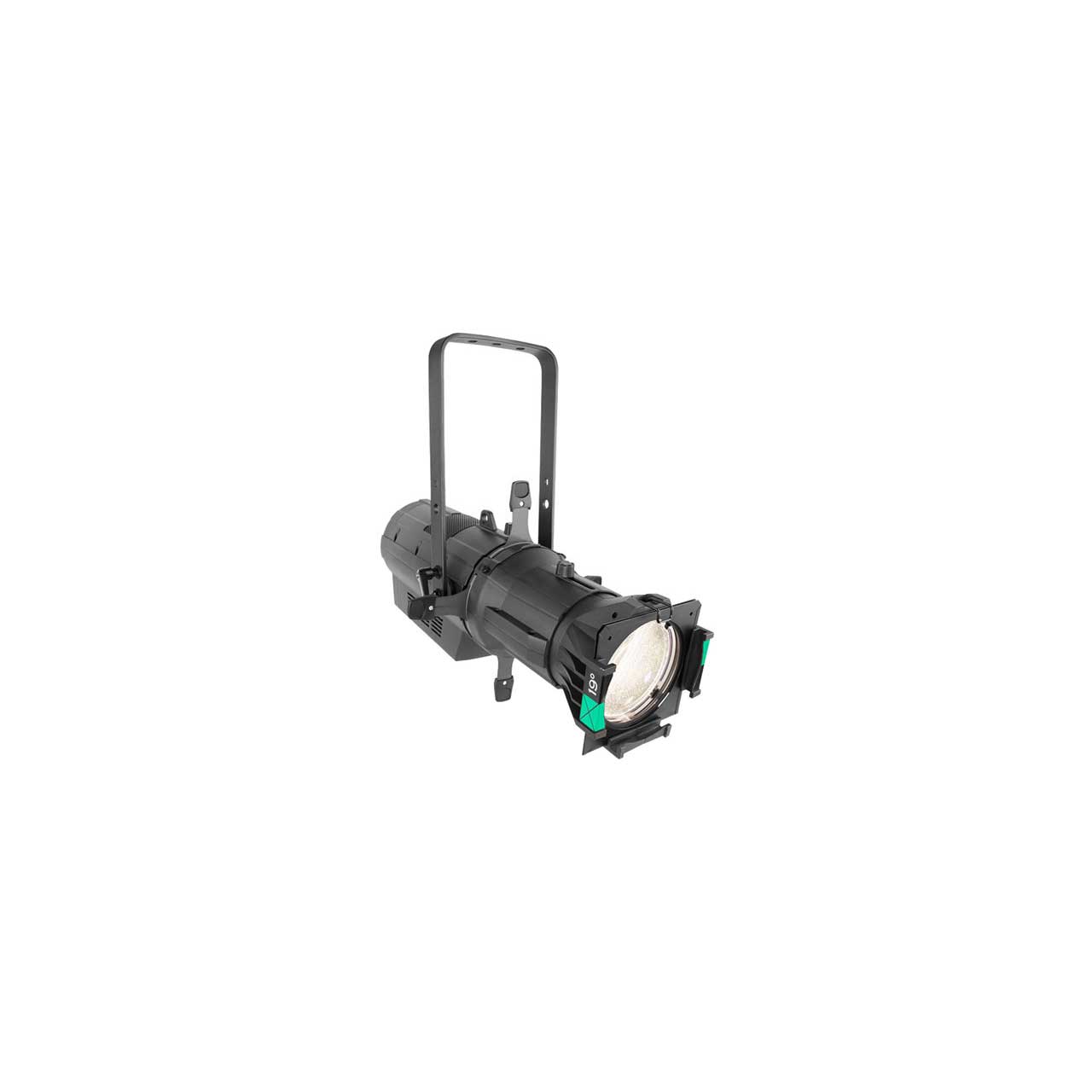

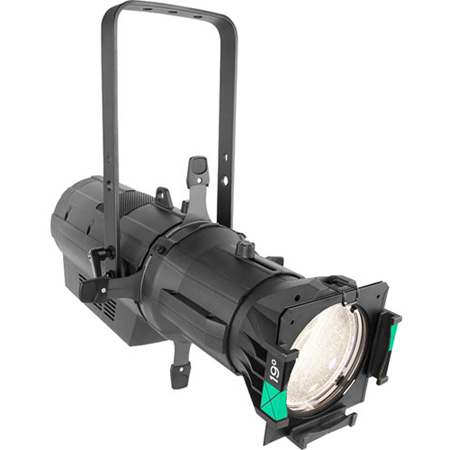

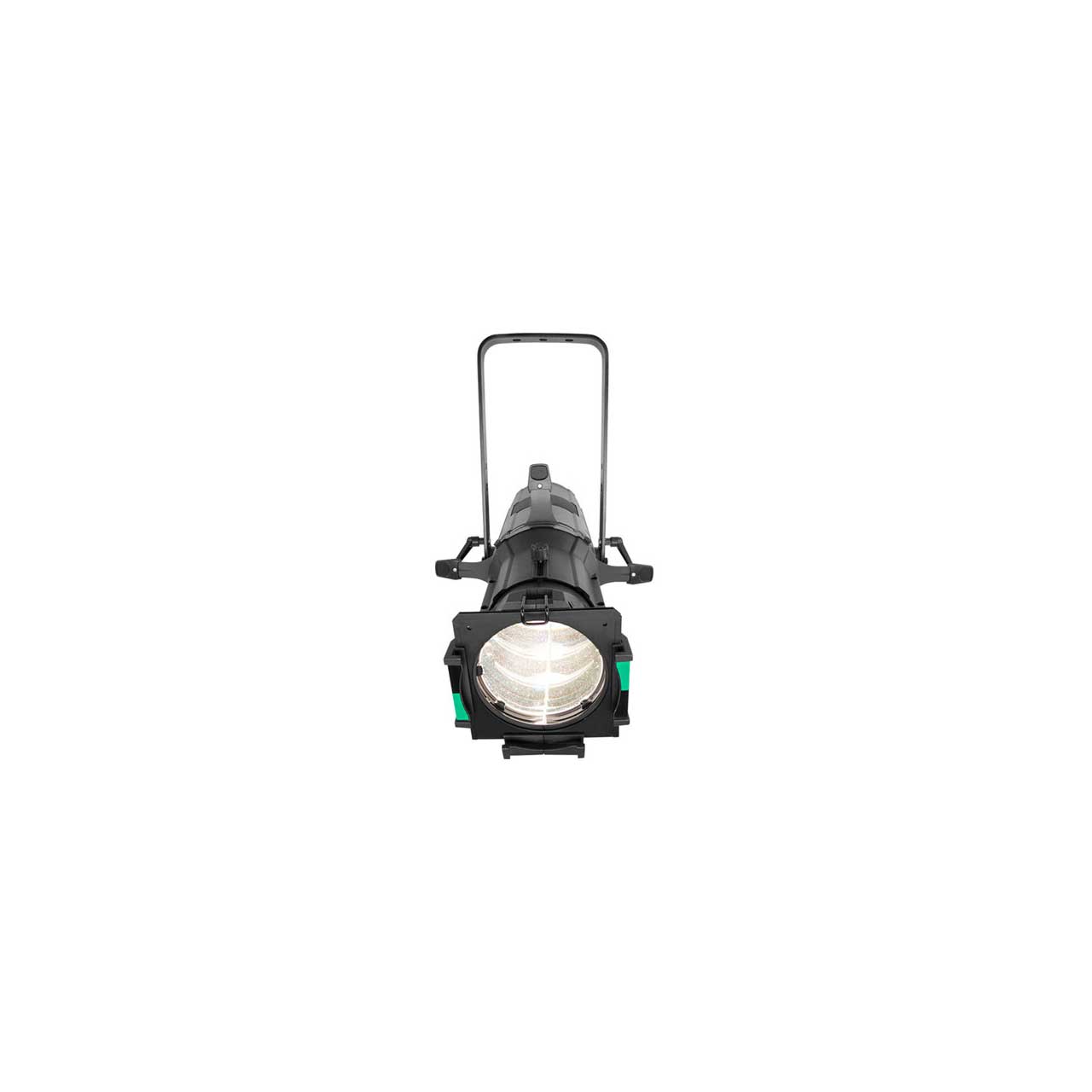

Chauvet OVATIONE260WW Ovation Warm White Light - Light Engine Only with powerCON Power Cord - No Lens

OVATIONE260WW - Overview

• Features:

  • Warm white ERS style fixture with output exceeding a tungsten 750 W source
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories


• Specifications:

  • Optical
  • Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
  • Color Temperature (at full): (WW) 3149 K
  • CRI: (WW) 96
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 13°
  • Beam Angle (w/26° lens): 16°
  • Beam Angle (w/36° lens): 20°
  • Beam Angle (w/50° lens): 28°
  • Beam Angle (w/15°-30° lens)(Narrow): 12°
  • Beam Angle (w/15°-30° lens)(Wide): 14°
  • Beam Angle (w/25°-50° lens)(Narrow): 21°
  • Beam Angle (w/25°-50° lens)(Wide): 22°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°-30° lens)(Narrow): 15°
  • Field Angle (w/15°-30° lens)(Wide): 29°
  • Field Angle (w/25°-50° lens)(Narrow): 26°
  • Field Angle (w/25°-50° lens)(Wide): 46°
  • Dimming Modes: 4
  • Lumens (w/19° lens): (WW) 7,587
  • Lumens (w/26° lens): (WW) 10,284
  • Lumens (w/36° lens): (WW) 10,121
  • Lumens (w/50° lens): (WW) 9,655
  • Illuminance (w/14° lens): (WW) 13,439 lux @ 5 m
  • Illuminance (w/19° lens): (WW) 9,256 lux @ 5 m
  • Illuminance (w/26° lens): (WW) 6,910 lux @ 5 m
  • Illuminance (w/36° lens): (WW)4,053 lux @ 5 m
  • Illuminance (w/50° lens): (WW)1,703 lux @ 5 m
  • Illuminance (w/15°-30° lens)(Narrow): (WW) 16,827 lux @ 5 m
  • Illuminance (w/15°-30° lens)(Wide): (WW) 10,626 lux @ 5 m
  • Illuminance (w/25°-50° lens)(Narrow): (WW) 7,210 lux @ 5 m
  • Illuminance (w/25°-50° lens)(Wide): (WW) 3,295 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: (WW) 0 to 27 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Construction/Physical
  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in
  • Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in
  • Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in
  • Dimensions (w/15°-30° lens): 32.87 x 14.61 x 14.61 in
  • Dimensions (w/25°-50° lens): 27.17 x 14.61 x 14.61 in
  • Weight (fixture only): 15.4 lb
  • Weight (w/14° lens): 20.8 lb
  • Weight (w/26° lens): 19.4 lb
  • Weight (w/15°-30° lens): 29.4 lb
  • Weight (w/25°-50° lens): 27 lb
  • Exterior Color: Black
  • Gobo Size (Optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in
  • Accessory Holder/Gel Frame Size (15°-30° lens): 7.5 in
  • Accessory Holder/Gel Frame Size (25°-50° lens): 7.5 in

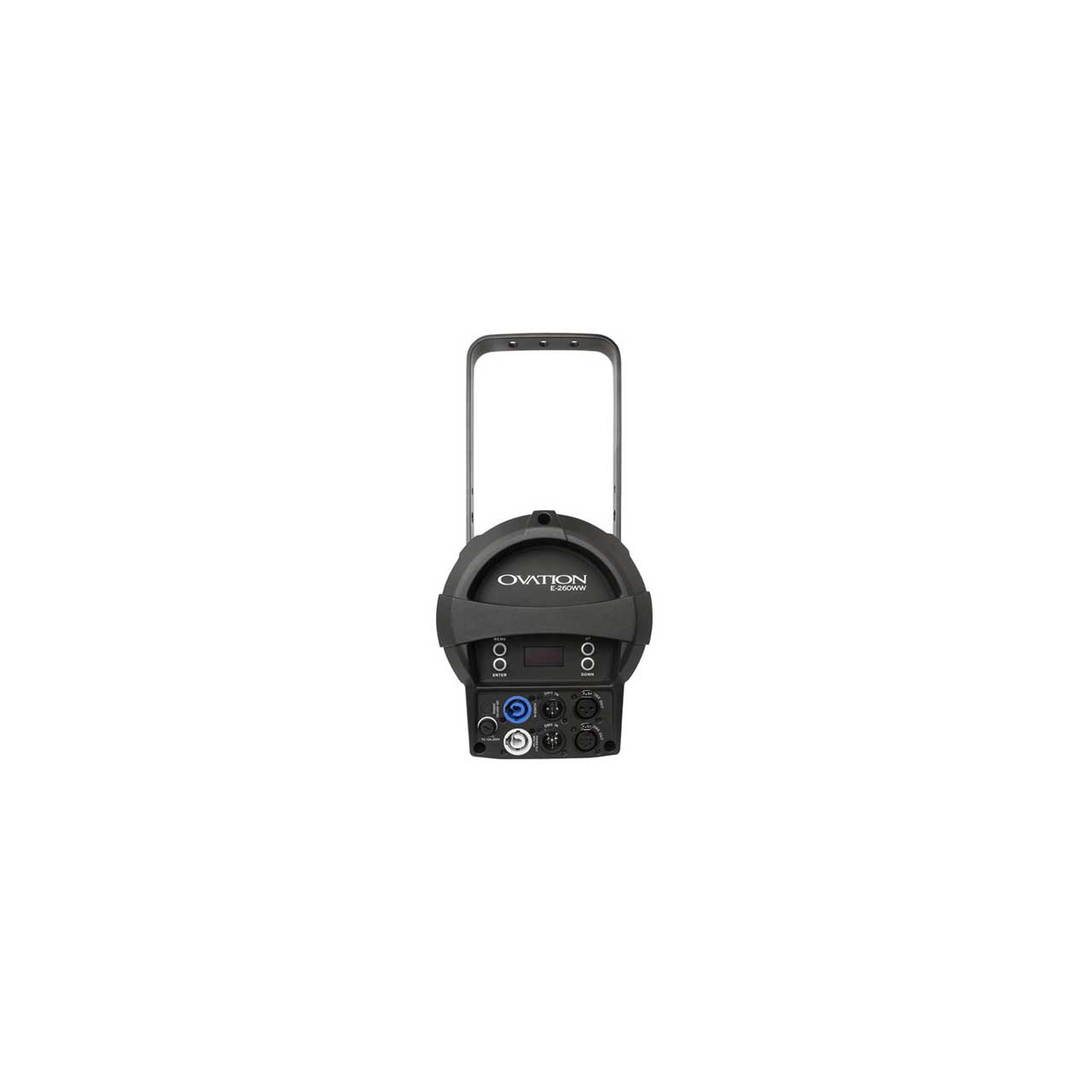

    Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: (WW) DMX
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: (WW) 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
  • Power and Current: (WW) 209 W, 1.7 A @ 120 V, 60 Hz


• Item Includes:

  • Ovation E-260WW/Ovation E-260CW
  • Neutrik powerCON power cord


• GTIN:

  0781462215347
