Clear-Com CZ-BP340 Two-Channel Beltpack for the DX340ES Wireless Intercom System - 2.4Ghz

ITEM #: CLCM-CZ-BP340 MFG #: CZ-BP340

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$590.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


CZ-BP340 - Overview

The Clear-Com CZ-BP340 is a Two-Channel Beltpack that is part of the DX340ES Wireless Intercom System.

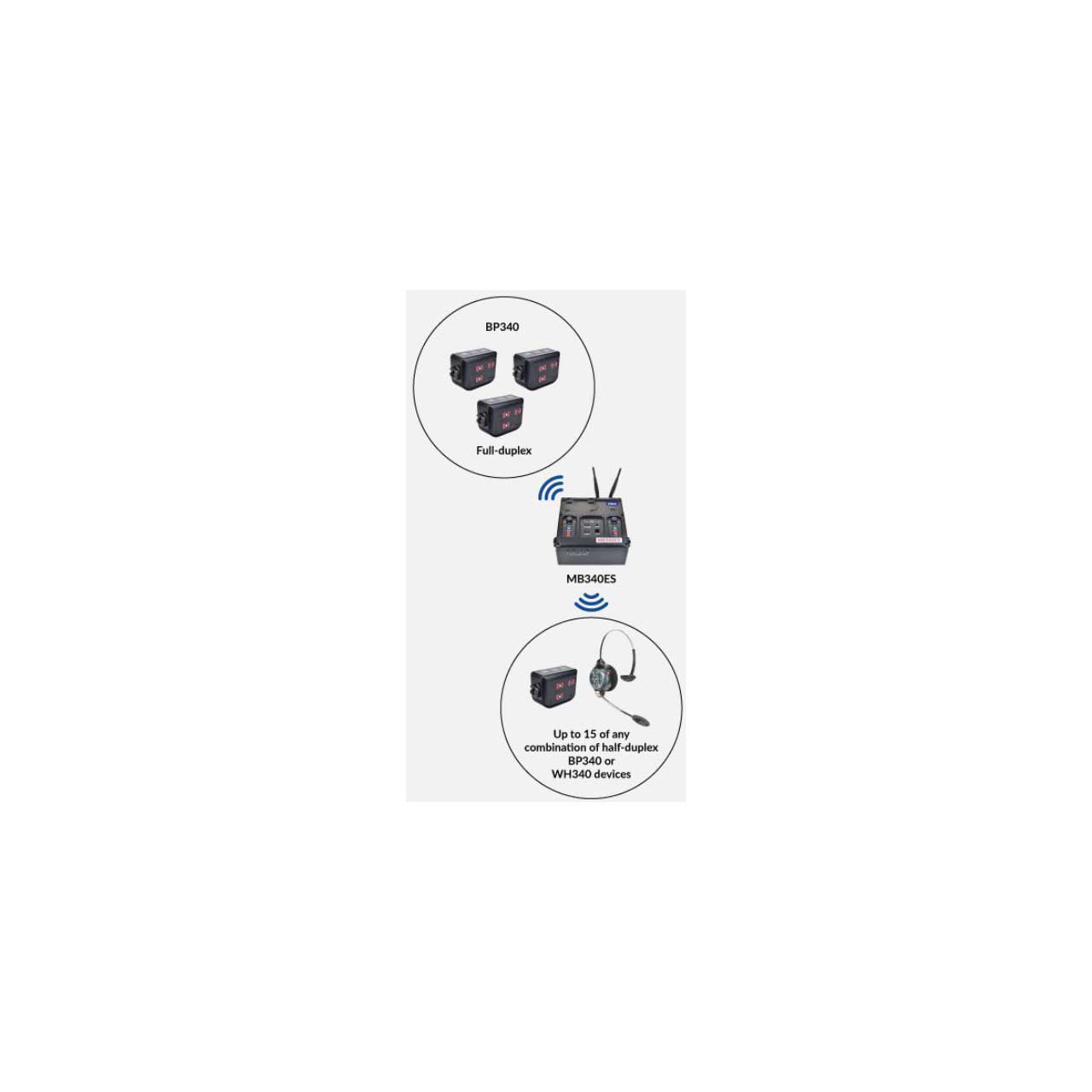

The DX340ES system consists of the MB340ES Base Station, BP340 Beltpack with the CLCM-CC-15-MD4 headset or the WH340 All-in-One Headset that doesn't require a beltpack all sold separately.

The DX340ES supports hands-free, two-way digital conversations with interfacing for two channels of external radio or intercom communications. Its compact design makes it highly portable and very quick to set up and operate. Special features include two-channel operation, 4-wire audio interfaces, wideband 7kHz audio, lost packet concealment, and improved out of band RF filtering for reduced interference. With multi-channel support and relay closures, the DX340ES can also support live event, remote broadcast, movie and video production applications.

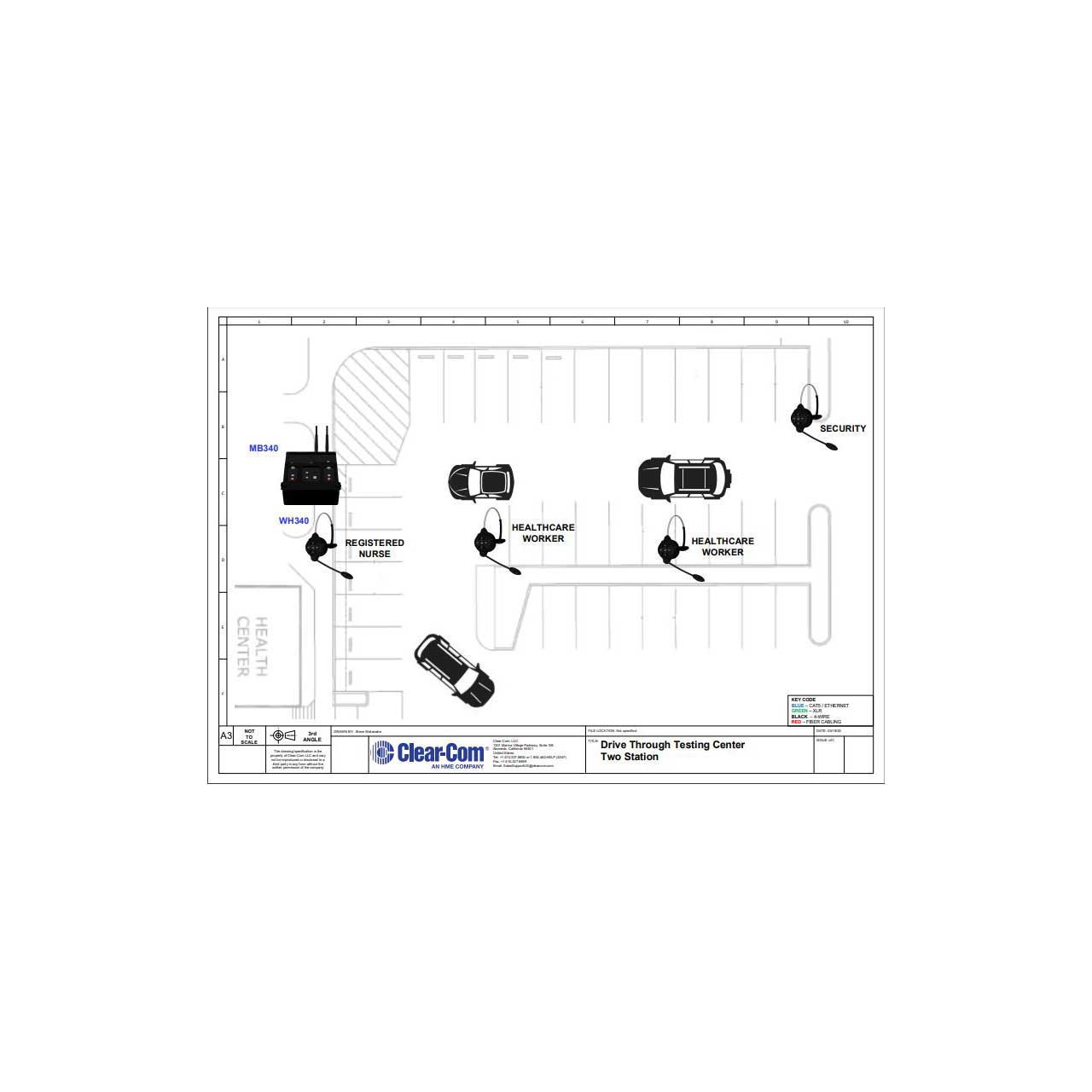

This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Two-Channel Beltpack for DX340ES Wireless System
    • 2.4GHz license-free operation
    • Up to 4 full-duplex or 12 half-duplex beltpacks and/or all-in-one handsets per base station
    • 7kHz wideband audio
    • Single or dual-channel operation
    • Light-weight, compact design, ergonomic design, weighing 7.4 oz
    • Rugged and reliable
    • Voice prompts
    • Internal antenna
    • Up to 20 hours of battery life
    • Uses BAT41 Batteries and AC40 Battery Charger

  • Specifications:

    • System
    • Frequency Range: All (2400 - 2483.5MHz), Low (2401.92 to 2439.936MHz) or High Band (2443.392 to 2481.408MHz)
    • Frequency Response: 200Hz to 7kHz
    • Security: 64-Bit Encryption
    • Temperature Range: -4 to131°F (-20 to 55°C)typical
    • Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS)
    • Transmit Power: 100mw Burst
    • Modulation Type: Gaussian Filtered FSK, TDMA
    • Frequency Stability: 13ppm
    • Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature
    • RF Sensitivity: <-90dBm w 10-3 BER
    • System Distortion: <2%
    • Dynamic Range: -90dBm to -20dBm
    • FCC Acceptance: Part 15

      Beltpack
    • Antenna Type: Internal, Dual Diversity (beltpack)
    • Transmission Modes: Continuous (Latched) or Push-to-Talk (PTT)
    • Mic Input: Electret
    • Headset Output: 160mw into 32W
    • Controls (Default): Power-On/Off, Volume-Up/Down, IC-Talk, ISO-Relay
    • Indicators: Power/Transmit/Low Battery LED & Voice Prompts
    • Beltpack Headset Connector: Mini-DIN
    • Beltpack Carrying Pouch: Santoprene

      Battery Life
    • Latched: Up to 14 Hours
    • PTT: Up to 20 Hours

      Dimensions
    • 3.4 x 2.6 x 1.5in (WxHxD)
    • (86 x 66 x 38mm)

      Weight
    • 7.4oz (0.21kg) with Battery & Pouch
