Clear-Com HLI-SMFO Singlemode SFP LC Duplex Fiber Transceiver for HLI-FBS

ITEM #: CLCM-HLI-SMFO MFG #: HLI-SMFO

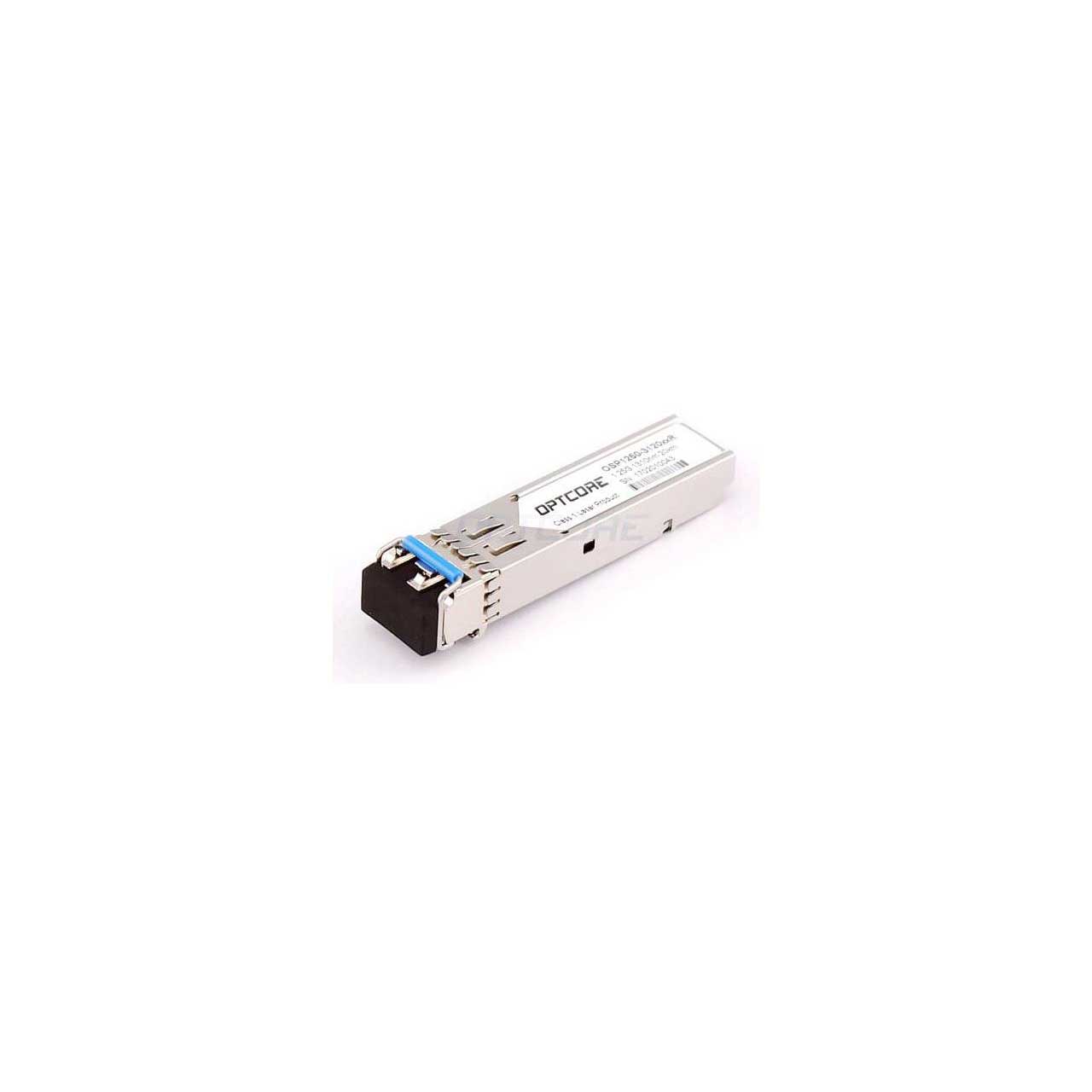

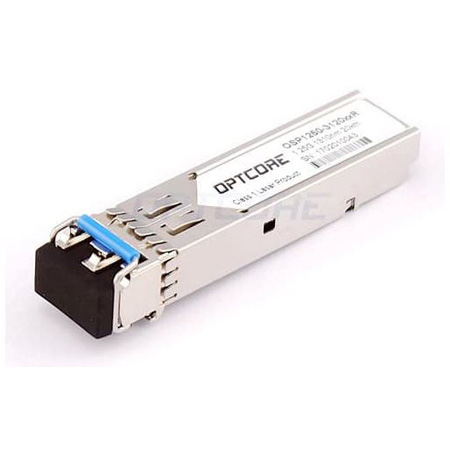

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLCM-HLI-SMFO

HLI-SMFO - Overview

The ClearCom HLI-SMFO is a Single-Mode SFP LC duplex transceiver for the HelixNet HLI-FBS fiber module, FSII-BASE-II or FSII-SPL fiber splitter. (all sold separately)

The HelixNet HLI-FBS fiber linking interface is a dual port Ethernet switch interface module with 100MB SFP connectors for the HMS-4X main station. The HLI-FBS 100MB SFP connectors can be populated with ANY compatible single or multi-mode fiber transceiver.

  • Specifications:

    • HLI-FBS
    • Network Specifications (Version 4.2+)

      Network Protocols
    • Ethernet IPv4-Unicast Audio and Control
    • mDNS-Multicast Device Discovery
    • Layer 3 routable with mDNS function limitations
    • HTTP-Management
    • RTP-Audio Transport
    • WavPack-Audio Codec

      Network Ports
    • Unicast:
    • Port 80 TCP-System Management
    • Port 655 TCP-Link Group Audio/Database Communication
    • Port 6001 TCP-System Management
    • Port 6001 UDP-Audio Streams
    • Multicast
    • Port 5353 UDP-mDNS, Names, Discovery, Linking, Expansion
    • Optional for device names and linking


Required Accessories

HLI-SMFO - Required Accessories
