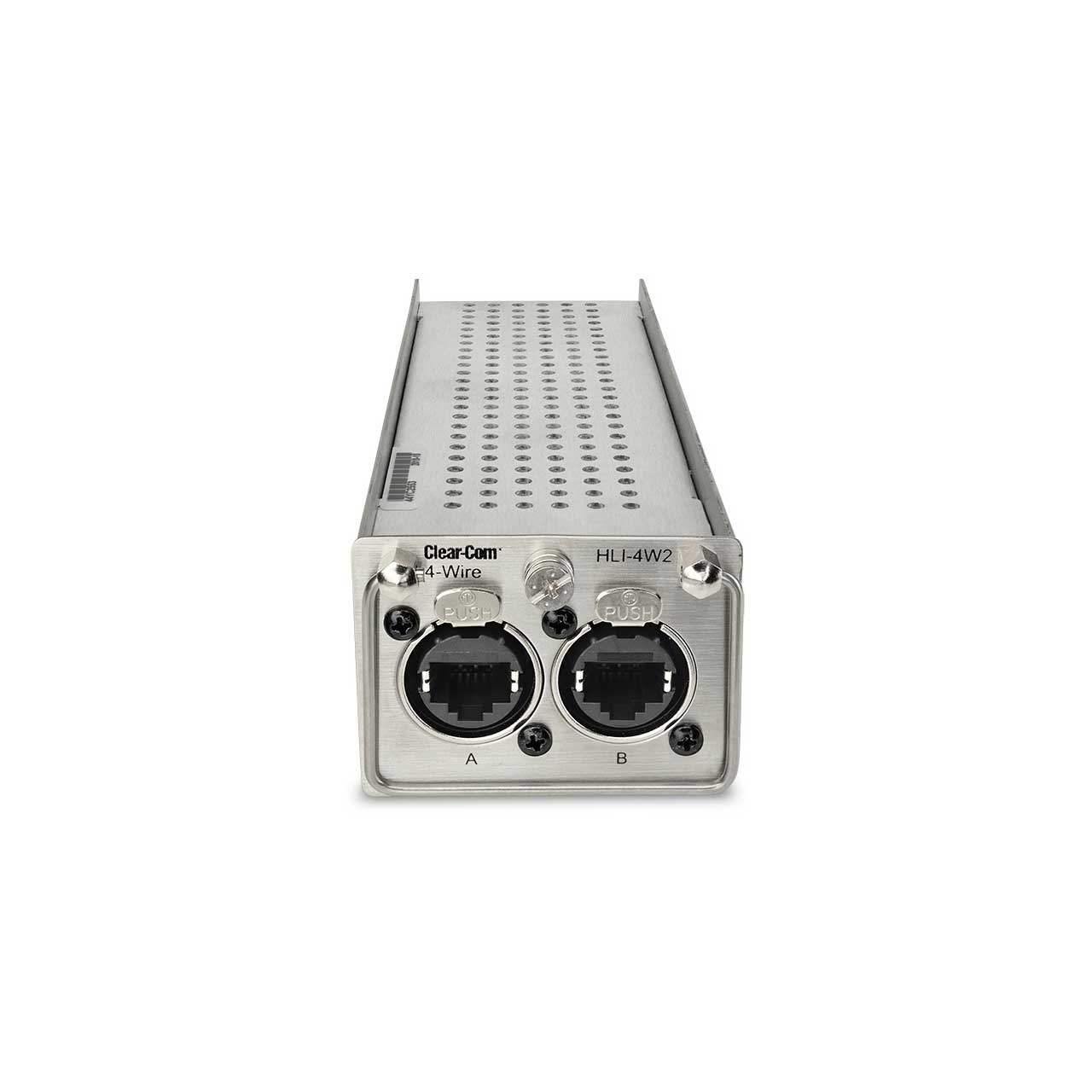

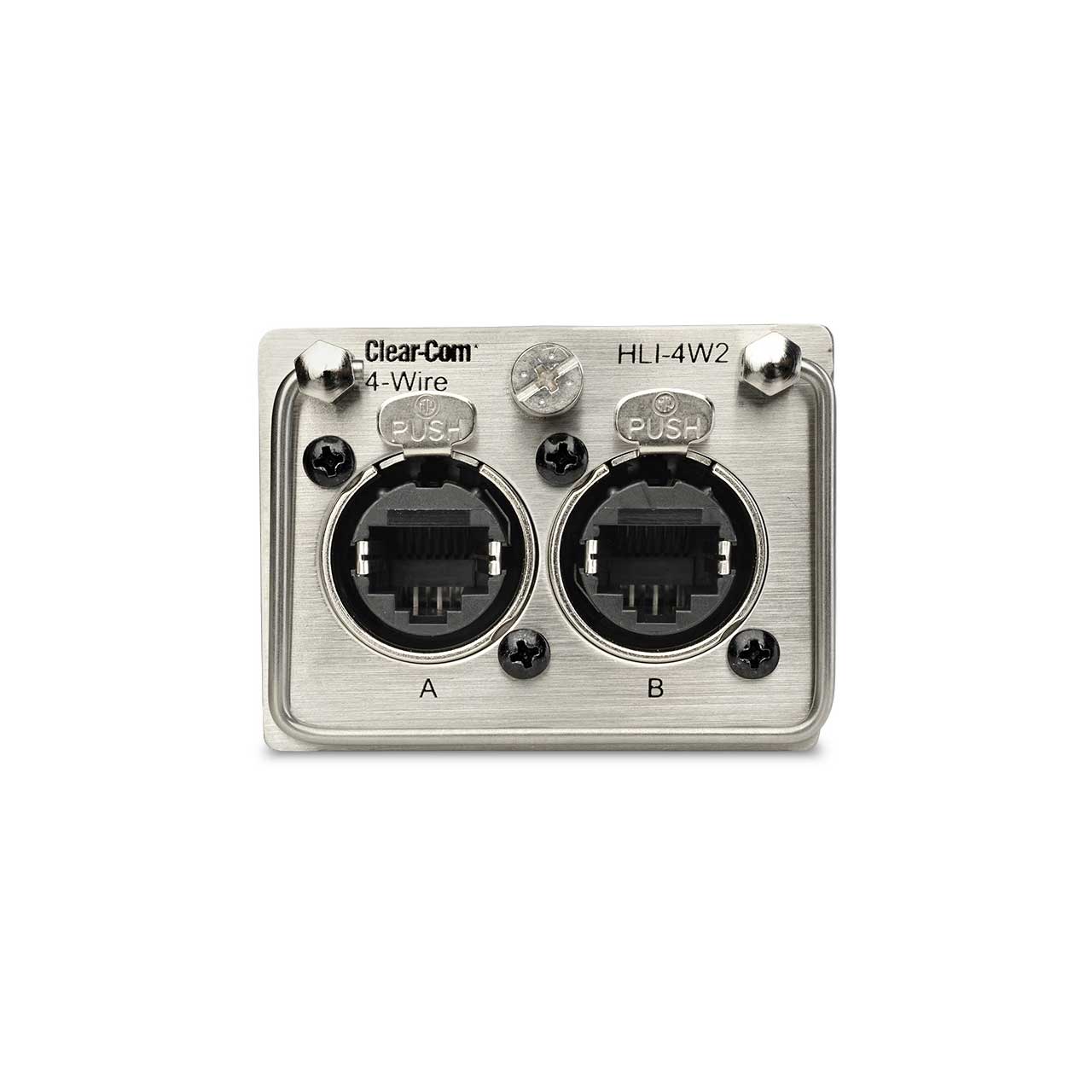

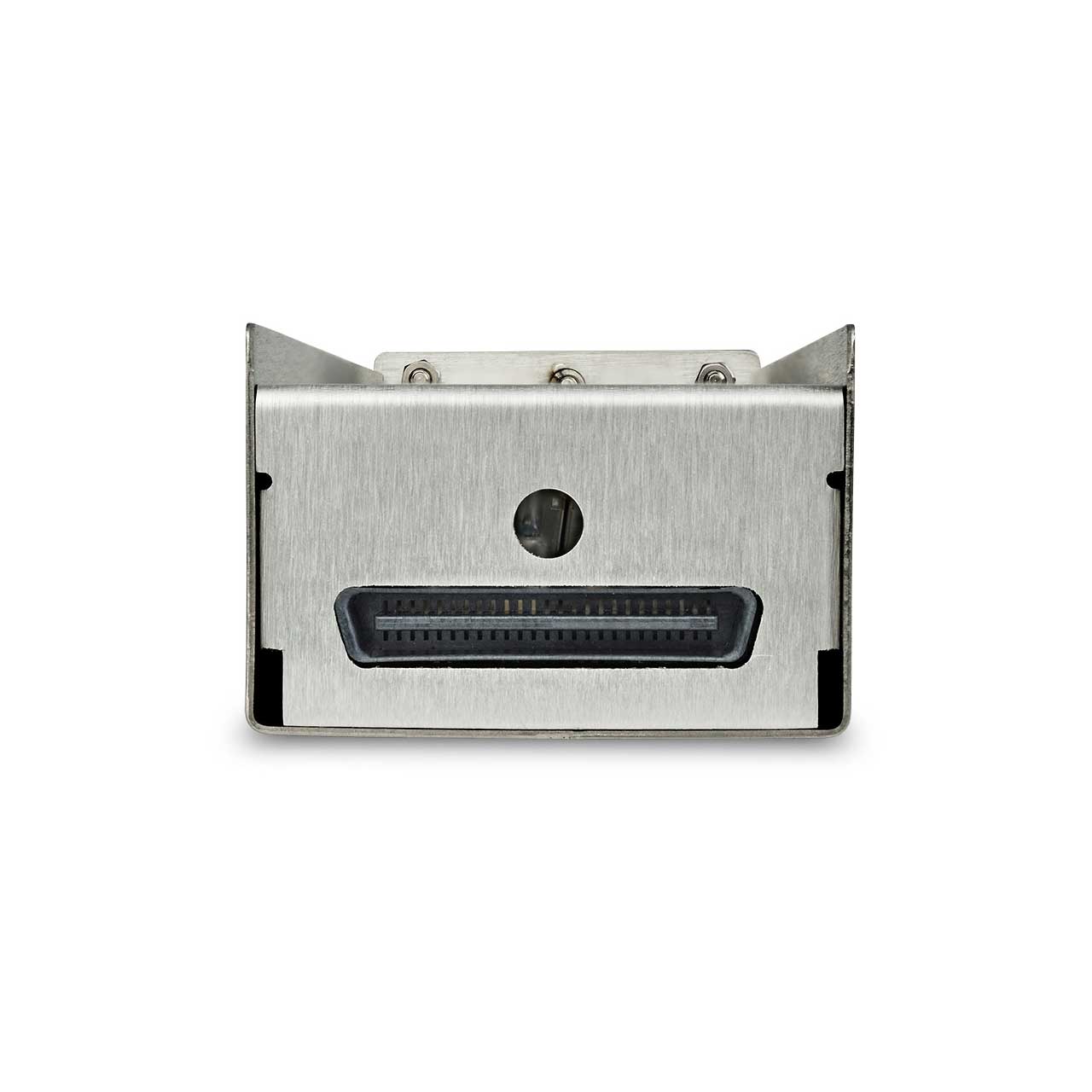

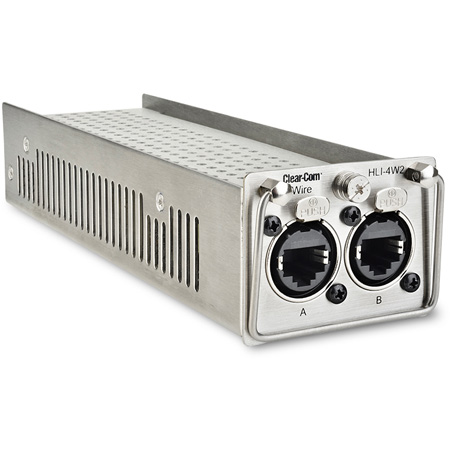

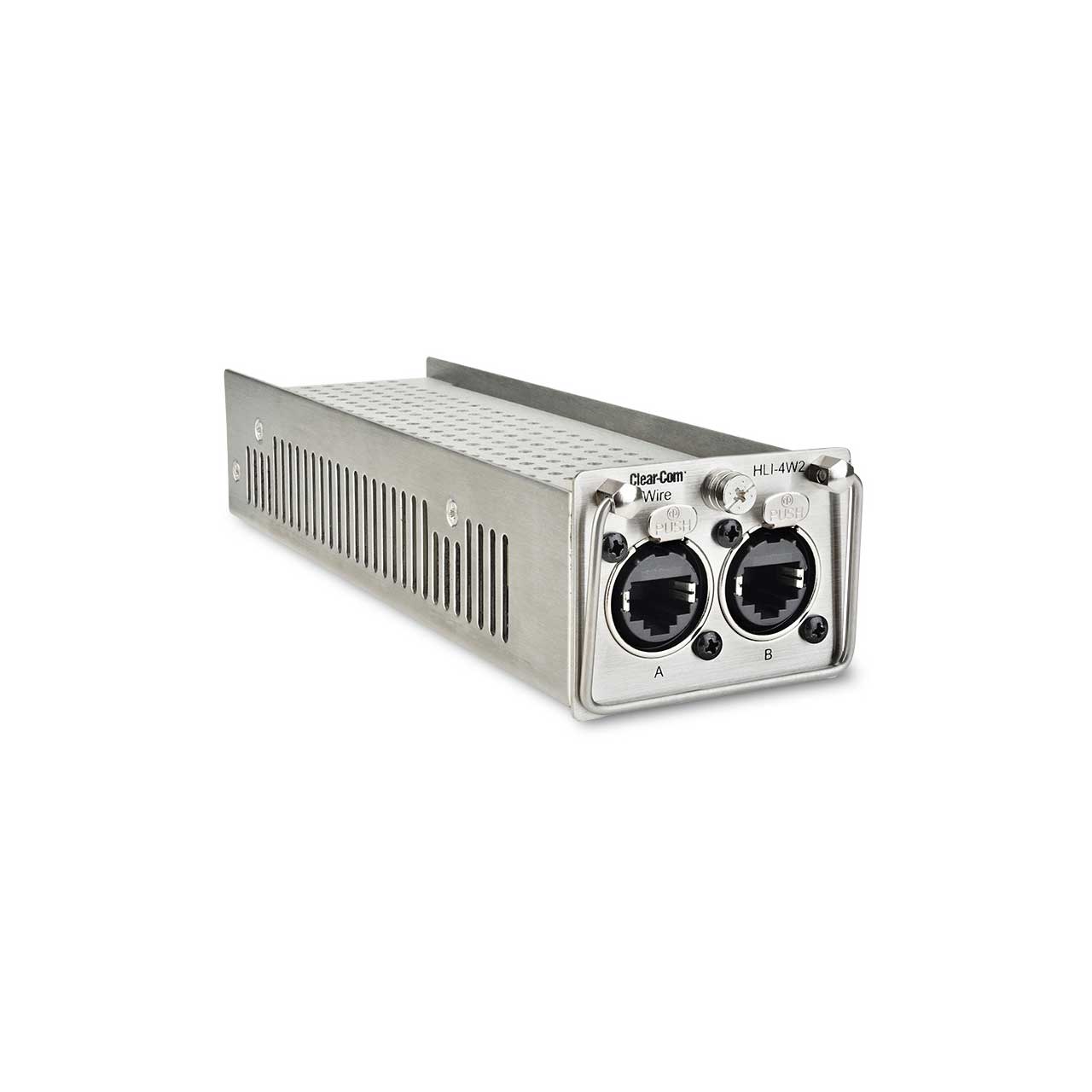

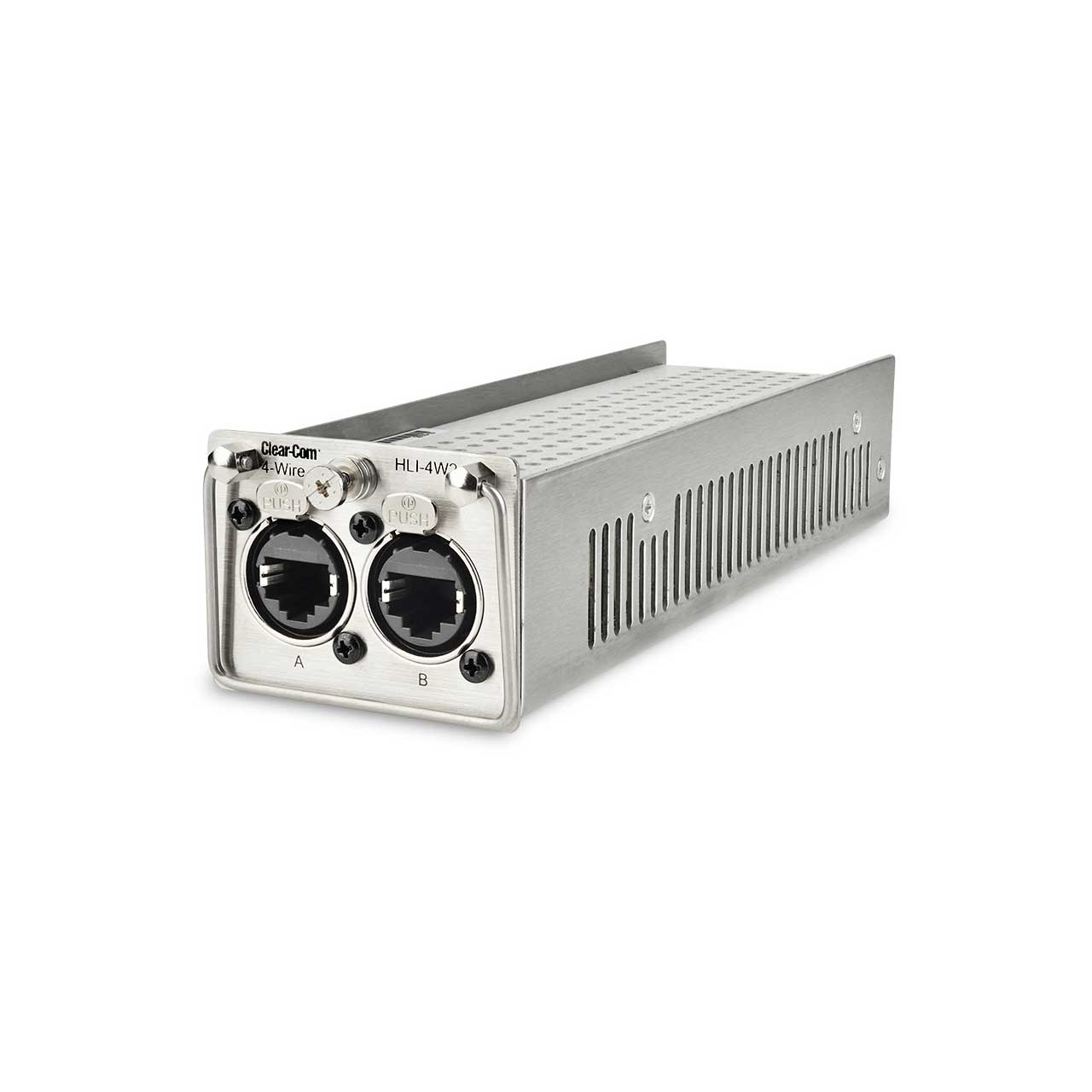

Clear-Com HLI-4W2 HelixNet 4-Wire Interface Module for HMS-4X Intercom Main Station

ITEM #: CLCM-HLI-4W2 MFG #: HLI-4W2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,320.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    HLI-4W2 - Overview

    The ClearCom HelixNet HLI-4W2 is a dual 4-wire interface module for the HelixNet HMS-4X Intercom System Main Station (sold separately). HelixNet® is a fully networked partyline intercom, supporting up to 24 channels and independent Program Audio over XLR, LAN and WAN. Interfacing HLI-4W2's 4-wire analog transformer and electrically isolated interfaces are assignable to any channel in the HelixNet system and provide discreet analog line level input and output. The 4-wire ports allow connectivity to any 4-wire intercom system, cameras, telephone circuits, stage announce, recorders or any other generic audio devices. Level control and VOX/Gate capability is provided for each interface to accommodate the connected device. HLI-4W2 include call signaling circuits when used with compatible Clear-Com devices such as Eclipse ® HX matrices and FreeSpeak II ® Base II base stations.

    HLI-4W2 can be added to any HMS-4X main station with an available option slot. Once installed, any channel can be independently assigned to either 4-wire port locally on the HMS-4X front panel or centrally from the Core Configuration Manager ™.

    Please Note! This item is just one component of a larger system.

    • Features:

      • Interface
      • 4-wire interface for HMS-4X
      • Transformer isolated
      • Level and VOX control
      • Clear-Com call signal
      • The HelixNet System

        Networked Intercom System
      • Flexible cabling
      • 12 partyline channels; expandable to 24 channels via optional license
      • Program Audio distribution with independent level control

        Effortless Management
      • Fast front panel control and configuration
      • Easy to use CCM browser configuration
      • Plug-and-go with auto discovery
      • Central upgrades from main station

    • Specifications:

      • Dimensions: 7.36" x 2.24" x 1.54" (187mm x 57mm x 39mm)
      • Weight: 13oz (0.35kg)
      • Connectors: Intercom Line: (2) RJ-45 (Ethercon)

        Four-wire Option Module Inputs
      • Maximum Level Before Clipping: 18dBu
      • Nominal Input Level: 0dBu (selectable)
      • Input Impedance: >= 10KO
      • The following specified for a route to four-wire output at 0dBu out:
      • Frequency Response: 20Hz - 10kHz ±3dB
      • Distortion: <0.2% THD @ 1kHz
      • Noise: <-65dBu

        Four-wire Option Module Outputs
      • Maximum Level Before Clipping: 18dBu
      • Nominal Output Level: 0dBu (selectable)
      • Output Impedance: <= 100O
      • The following specified for a route from a dynamic headset:
      • Frequency Response: 300 Hz - 12 kHz ±3dB
      • Distortion: <0.1% THD @ 1 kHz
      • Noise: <-55dBu

    • GTIN:

      0609385863097
