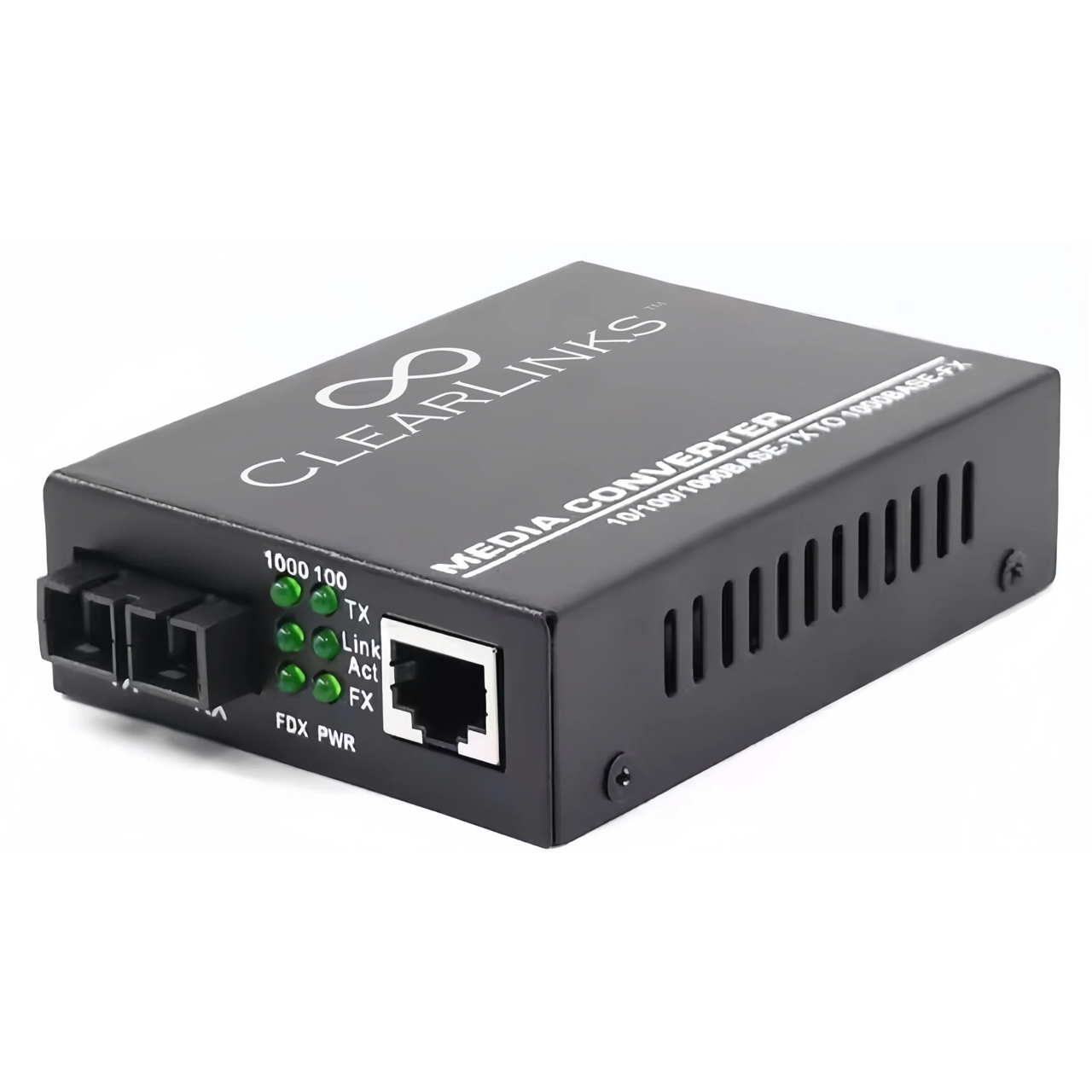

ClearLinks CFU-00101C1 RJ45 to SC Fast Ethernet Media Converter - Multi-Mode Fiber - 550m Range - With SFP

CFU-00101C1 - Overview

• Features:

  • Optical Module Compatibility: Equipped with an 850nm multi-mode dual-fiber optical module, supporting transmission distances up to 500 meters. Upgradable to a 1310nm multi-mode dual-fiber optical module for extended transmission distances of up to 2km.
  • Ethernet to Fiber Conversion: Converts 10/100Base-T Ethernet signals to 100Base-FX fiber optic signals using multi-mode fiber cables.
  • Versatile Media Converter: Supports Ethernet 10Base-T and 100Base-TX to 100Base-FX fiber optic conversion.
  • Standards Compliance: Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.1d standards.
  • Flow Control: Supports full-duplex flow control and half-duplex back pressure flow control with automatic negotiation.
  • Speed Adaptation: Automatically adapts between 10Mbps and 100Mbps network speeds.
  • Reliable Performance: Ensures reliable data transmission with excellent optical and electrical characteristics for a long operational lifespan.
  • Diagnostic Features: Provides remote link loss diagnosis, as well as diagnostics for both electrical and optical port connections. Features dynamic data transmission indicators and status lights for duplex modes and rates.
  • Power Consumption: Operates with low power consumption at 5W, with input voltage ranging from AC110 to 240V.
  • Durability: Offers an average trouble-free operating time of over 50,000 hours, meeting telecommunications industry standards.
  • Comprehensive After-Sales Service: Includes up to three years of quality assurance and maintenance support.


• Specifications:

  • Optical Ports: 1x 100Base-SC
  • Copper Ports: 1x 10/100BaseT RJ45
  • Wavelength: 1310nm
  • Range: 550m (1800 Feet)
  • Fiber Mode: Multi-mode
  • Input Power: 5V DC, 1A
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature 14°F - 158°F (-10°C - 70°C)


• Item Includes:

  • 1x Power cord
  • 1x Warranty card


• Warranty:

  • 3 Year Warranty
