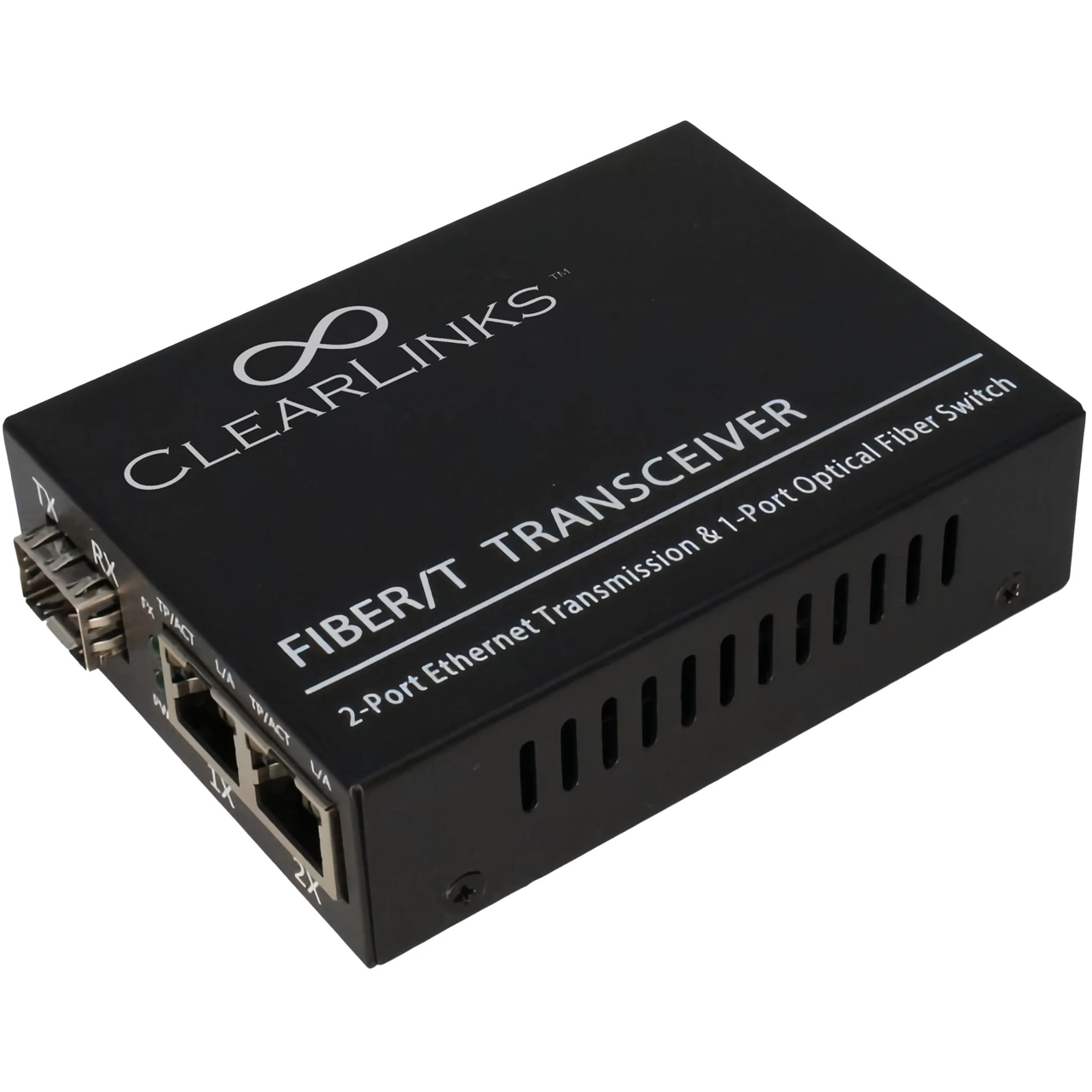

ClearLinks CGU-00102S RJ45 to SFP 1 Gigabit Media Converter - 1x SFP Port & 2x RJ45 Ports

Name: ClearLinks CGU-00102S RJ45 to SFP 1 Gigabit Media Converter - 1x SFP Port & 2x RJ45 Ports
Brand: ClearLinks
SKU: CLK-CGU-00102S
Price: 44.00 USD
Availability: PreSale

ITEM #: CLK-CGU-00102S MFG #: CGU-00102S

ClearLinks

Our Price:

$44.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CGU-00102S - Overview

With the capacity to convert between 10/100/1000BASE-T and 100/1000BASE-X networks, ClearLinks CGU-00102S media converter offers the versatility of 10/100/1000Mbps Ethernet media via RJ45 port together with extremely steady gigabit fiber performance. The device determines and configures the fastest connection speed and mode automatically and supports MDI/MDIX auto detection. Interchangeable SFP modules allow media converters to work in single- and multi-mode networks (transmission over two or one fiber). The method is especially cost-effective when considering future plans for network expansion because it only needs to change the SFP modules.

Please Note: SFP modules required, sold separately.

Features:
- 10/100/1000Mbps RJ45 Port: Supports auto-negotiation, enabling seamless integration of various network speeds and devices into a high-performance Gigabit fiber network.
- Multiple Connection Options: Features 2RJ45 10/100/1000Base-Tx ports and 1100/1000Base-X fiber media converter for versatile network expansion.
- High-Speed Bandwidth: Designed for large-scale workgroups that demand high-speed bandwidth and reliable Ethernet network expansion.
- SFP Module Compatibility: Supports both multi-mode and single-mode fiber optics using various SFP modules.
- Extended Ethernet Range: Capable of extending Ethernet connections up to 120km with a 1.25G SFP module.
- Standards Compliance: Adheres to IEEE 802.3 10BaseT, IEEE 802.3u 1000BaseTX, and 1000BaseFX standards for wide compatibility and dependable performance.
- Auto-Negotiation & Auto-MDI/MDI-X: Automatically adjusts speed and crossover settings, simplifying network setup and reducing manual configuration.
- LED Status Indicators: Easy-to-read LEDs provide real-time monitoring of device status and network performance.
- Power Efficiency: Consumes only 5W of power with input support from AC110 to 240V, ensuring energy-efficient operation.
- Comprehensive After-Sales Service: Backed by up to three years of quality assurance and maintenance services for peace of mind.
Specifications:
- Optical Ports: 1x 100Base-SFP
- Copper Ports: 2x 10/100/1000BaseT RJ45
- Wavelength: 850-1310nm
- Fiber Mode: Single-mode/Multi-mode
- Input Power: 5V DC, 1A
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage Temperature 14°F - 158°F (-10°C - 70°C)
Item Includes:
- 1x Power cord
- 1x Warranty card
  Please Note: SFP modules required, sold separately.
Warranty:
- 3 Year Warranty
