SFP-CG0412 - Overview

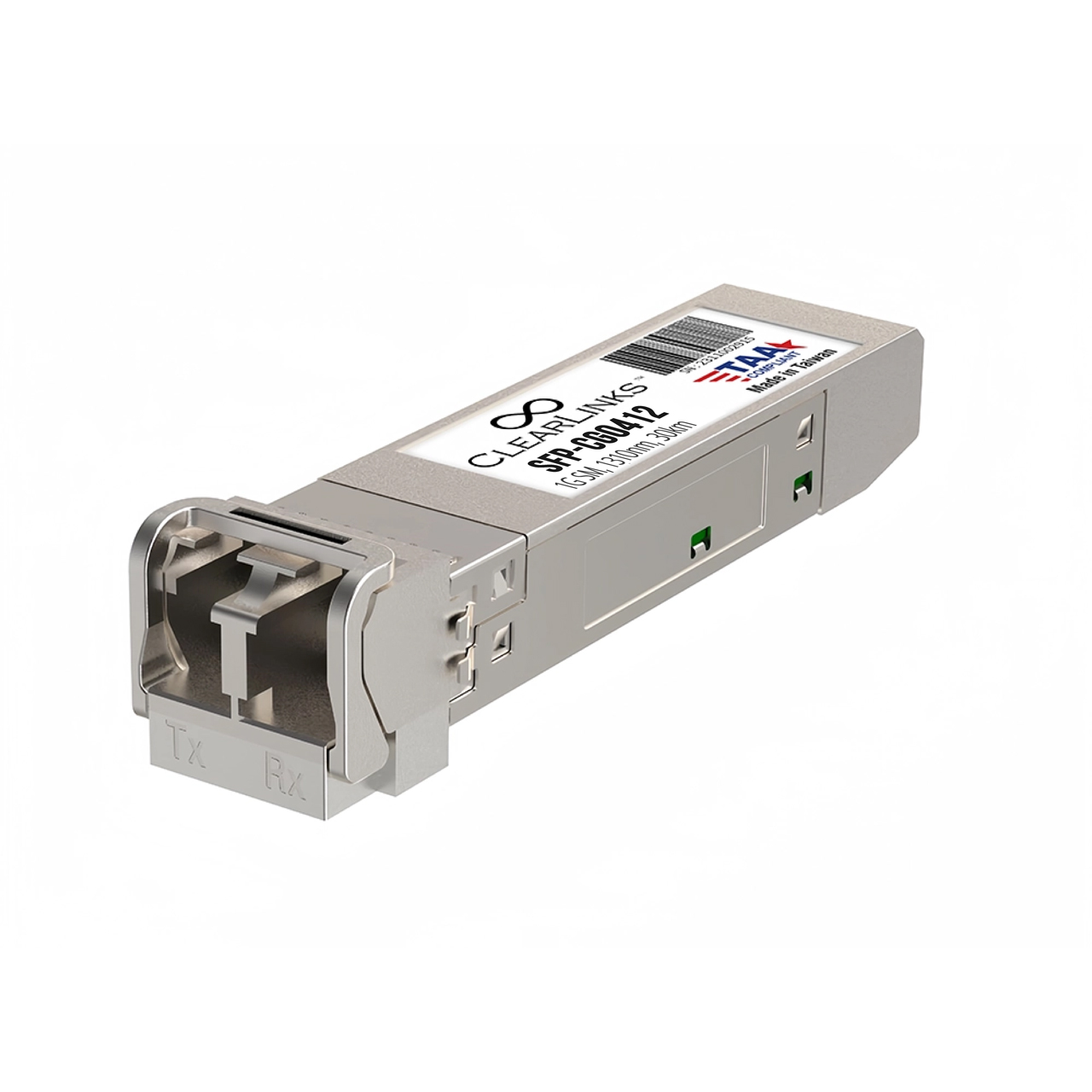

The SFP-CG0412 transceiver from ClearLinks is a small form factor pluggable module with a standard simplex connector for fiber communications. This module is designed for singlemode fiber (SM) and operates at a normal wavelength of 1310nm with cost effective and high performance. It is with the SFP 20-pin connector to allow hot plug capability capability.

Transmitter
The transmitter consists of a high-performance 1310 nm with Vertical Cavity Surface Emitting Laser (VCSEL) in the optical subassembly (OSA), which is housed within a plastic barrel package. In addition, this component is also class 1 laser that compliant with International Safety Standard IECIEC-60825-1:2014. It complies with EN60825-1:2014/A11:2021 and FDA 21 CFR 1040.10 and 1040.11.

Receiver
The receiver contain of n GaAs PIN photodiode that coupled to a high sensitivity transimpedance amplifier (TIA) in an OSA. This OSA combination is mated to a post amplifier IC that provides the post amplification and SD (Signal Detection) or LOS (Loss of Signal) indication circuit which provides the logic high state output when an unusable input optical signal level detected.

  • Features:

    • Single +3.3V power supply
    • Differential inputs and outputs
    • Outputs compliant with specification for FC-PI
    • Small Form Factor Pluggable MSA Compliant.
    • Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration (SJ Series)
    • Class 1 Laser International Safety Standard IEC 60825-1:2014 Compliant. Complies with EN60825-1:2014/A11:2021 and FDA 21 CFR 1040.10 and 1040.11
    • RoHS Compliant

  • Specifications:

    • Performance
    • Supply Voltage: 0V - 4V
    • Storage Temperature: -40°:F - 185°:F (-40°C - 85°C)
    • Operating Temperature: 32°:F - 158°F (0°C - 70°C)
    • Data Rate: 0.8Gbps - 1.50Gbps (typical 1.25Gbps)
    • Supply Current: Max 300mA
    • Power Dissipation: Max 1000mW

      Transmitter - Electrical
    • Supply Voltage: 3.15V - 3.45V (typical 3.3V)
    • Data Differential Input Voltage: 400mV - 2000mV
    • TX Input Low Voltage: -1.81V - -1.48V
    • TX Input High Voltage: -1.16V - -0.88V
    • TX Fault Voltage - High (Fault): Min 2.0V, Max = Supply Voltage
    • TX Fault Voltage - Low (Normal): 0V - 0.8V
    • POut@TX Disable Asserted: Max -45dBm

      Transmitter - Optical
    • Optical Output Power: -10dBm - -3dBm
    • Center Wavelength: 1300nm - 1320nm (typical 1310nm)
    • Spectral Width: Max 0.85nm
    • Extinction Ratio: Max 0.26ns
    • Relative Intensity Noise: Max 0.26ns
    • Transmitter and Dispersion Penalty: Min 9dB

      Receiver - Electrical
    • Supply Voltage: 3.15V - 3.45V (typical 3.3V)
    • Data Differential Output Voltage: 500mV - 2000mV
    • Receiver LOS/SD Output Voltage - High: Min 2.0V, Max = Supply Voltage
    • Receiver LOS/SD Output Voltage - Low: 0V - 0.8V
    • Data Output Rise Time (20% - 80%): Max 0.35ns
    • Data Output Fall Time (20% - 80%): Max 0.35ns

      Receiver - Optical
    • Maximum Receiver Power: -3dBm
    • Receiver Sensitivity: Max -20dBm
    • Optical Center Wavelength: 1300nm - 1320nm
    • Optical Return Loss: Max 12dB
    • Signal Detect - Asserted: Max -20dBm avg.
    • Signal Detect - Deasserted: Min -36dBm avg.
    • Signal Detect - Hysteresis: Min 0.5dB
