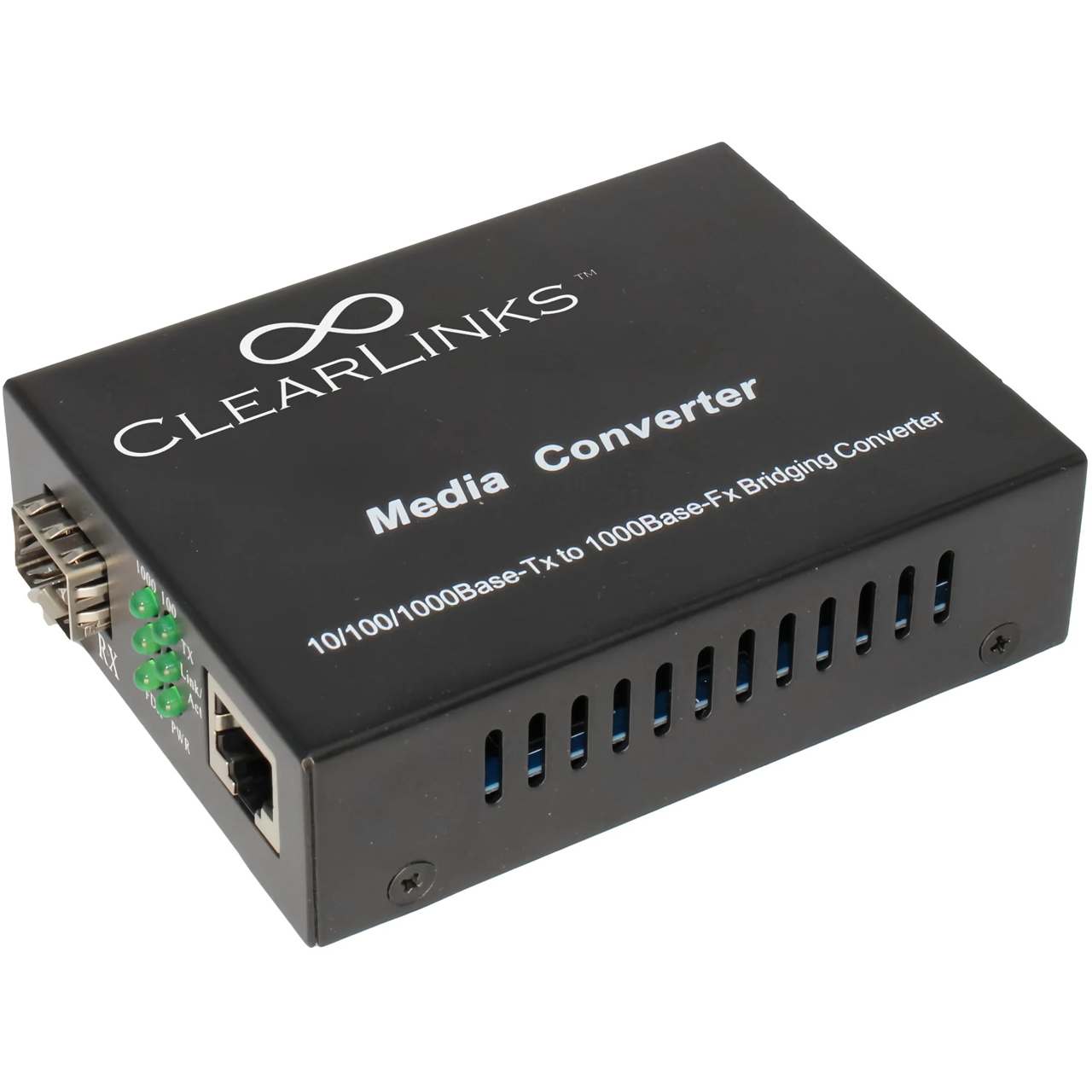

ClearLinks CGU-10101S RJ45 to SFP PoE 1 Gigabit Media Converter

Name: ClearLinks CGU-10101S RJ45 to SFP PoE 1 Gigabit Media Converter
Brand: ClearLinks
SKU: CLK-CGU-10101S
Price: 137.00 USD
Availability: PreSale

ITEM #: CLK-CGU-10101S MFG #: CGU-10101S

ClearLinks

Our Price:

$137.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CGU-10101S - Overview

Both the IEEE 802.3at PoE+ and IEEE 802.3af PoE standards are supported by the ClearLinks CGU-10101S PoE+ Gigabit Ethernet media converter. The device uses Cat5e/6 cables to convert single-mode or multi-mode fiber signals to copper Ethernet signals, offering 48 VDC power and Gigabit Ethernet up to 100 meters. The device is perfect for powering and data-supplying PoE and PoE+ devices, including VoIP phones, access control devices, security cameras, and etc. Without the need to install extra power outlets and cables, the CGU-10101S is the perfect way to supply data and power straight to network devices via the RJ45 interface.

Please Note: SFP modules required, sold separately.

Features:
- IEEE802.3af/at Compliance: Fully compliant with IEEE 802.3af/at Power over Ethernet (PoE) standards, ensuring compatibility with a wide range of devices.
- Maximum Output Power: Provides up to 30 watts of output power, ideal for powering PoE-enabled devices.
- 10/100/1000Mbps RJ45 Port: Supports auto-negotiation for seamless integration across varying network speeds and devices, connecting them to a high-speed Gigabit fiber network.
- High-Speed Network Expansion: Designed to deliver high-bandwidth performance, ideal for large-scale workgroups that require reliable Ethernet network expansion.
- SFP Module Compatibility: Supports both multi-mode and single-mode fiber optics through interchangeable SFP modules, providing flexible deployment options.
- Extended Ethernet Range: Capable of extending Ethernet connections up to 120km when used with a 1.25G SFP module.
- Standards Compliance: Adheres to IEEE 802.3 10BaseT, IEEE 802.3u 1000BaseTX, and 1000BaseFX standards, ensuring broad compatibility and reliable operation.
- Auto-Negotiation & Auto-MDI/MDI-X: Supports automatic speed negotiation and crossover detection for enhanced plug-and-play functionality.
- LED Status Indicators: Clear and easy-to-read LED indicators allow users to monitor device status and network performance in real-time.
- Comprehensive After-Sales Support: Includes up to three years of warranty and maintenance services, ensuring long-term reliability and peace of mind.
Specifications:
- Optical Ports: 1x 100Base-SFP
- Copper Ports: 1x 10/100/1000BaseT RJ45
- Wavelength: 850-1310nm
- Fiber Mode: Single-mode/Multi-mode
- Input Power: 5V DC, 1A
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage Temperature 14°F - 158°F (-10°C - 70°C)
Item Includes:
- 1x Power cord
- 1x Warranty card
  Please Note: SFP modules required, sold separately.
Warranty:
- 3 Year Warranty

CGU-10101S - Recommended Accessories

ClearLinks SFP-CG0107 1000BASE-SX - 850nm 550m MM Transceiver SFP Module
CLK-SFP-CG0107
Our Price: $22.00
ClearLinks SFP-CG0412 1000BASE-LX/LH - 1310nm 30km SMF Transceiver SFP Module
CLK-SFP-CG0412
Our Price: $22.00
