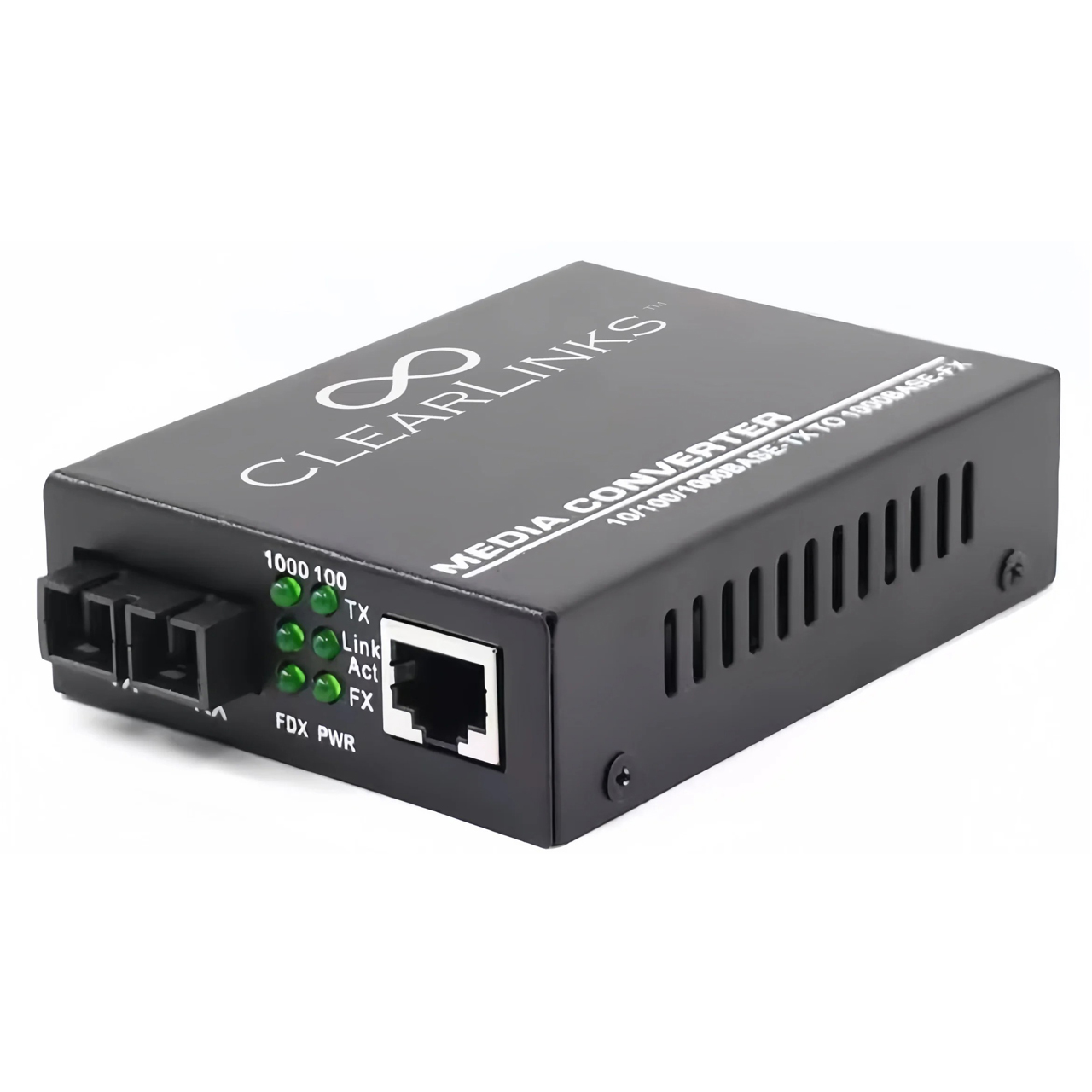

ClearLinks CGU-10101C1 RJ45 to SC PoE 1 Gigabit Media Converter - Multi-Mode Fiber - 550m Range - w/ SFP

CGU-10101C1 - Overview

• Features:

  • IEEE802.3af/at Compliant: Fully adheres to IEEE802.3af/at standards, supporting a maximum power output of 30 watts.
  • Optical Module: Equipped with an 850nm multi-mode dual-fiber optical module, offering a transmission distance of 500 meters; upgradable to a 1310nm multi-mode dual-fiber optical module for extended distances of up to 2 kilometers.
  • Ethernet Standards: Compatible with IEEE 802.3, 1000Base-TX, 1000Base-FX, IEEE 802.3U, IEEE 802.3X, and IEEE 802.1d, ensuring broad interoperability.
  • Flow Control: Supports both full-duplex flow control and half-duplex back pressure flow control, enhancing network efficiency.
  • Auto-Negotiation & Auto-MDI/MDI-X: Automatically adjusts to 10/100/1000BASE-T speeds and crossover configurations, facilitating seamless integration.
  • Performance Monitoring: Features six LEDs for real-time performance and status monitoring.
  • Power Efficiency: Low internal power consumption of just 5W, with input voltage support from AC110 to 240V.
  • Comprehensive After-Sales Support: Includes up to three years of quality assurance and maintenance for reliable performance.


• Specifications:

  • Optical Ports: 1x 100Base-SC
  • Copper Ports: 1x 10/100/1000BaseT RJ45
  • Wavelength: 850nm
  • Range: 550m
  • Fiber Mode: Multi-mode
  • Input Power: 5V DC, 1A
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature 14°F - 158°F (-10°C - 70°C)


• Item Includes:

  • 1x Power cord
  • 1x Warranty card


• Warranty:

  • 3 Year Warranty
