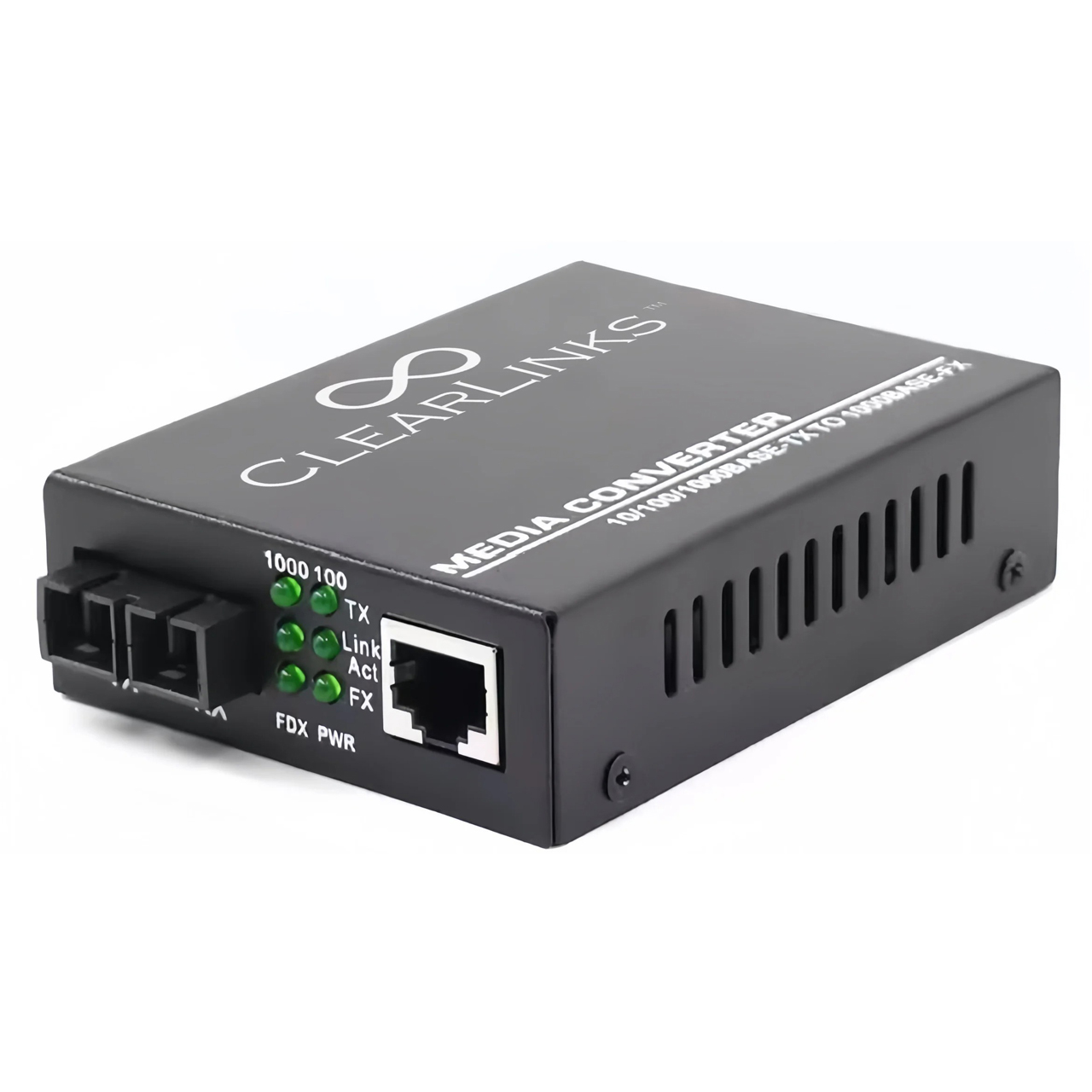

ClearLinks CGU-10101C2 RJ45 to SC PoE 1 Gigabit Media Converter - Single-Mode Fiber - 20km Range

CGU-10101C2 - Overview

• Features:

  • IEEE802.3af/at Compliance: Fully adheres to the IEEE802.3af/at standards, ensuring compatibility and reliable performance across various network devices.
  • Power Output: Delivers up to 30 watts of power, making it suitable for a range of PoE (Power over Ethernet) applications.
  • 1310nm Single-Mode Dual-Fiber Optical Module: Capable of transmitting data over distances up to 20 kilometers, ideal for long-range network connections.
  • Ethernet Standards: Supports IEEE 802.3, 1000Base-TX, 1000Base-FX, IEEE 802.3U, IEEE 802.3X, and IEEE 802.1d standards, ensuring seamless integration with various network infrastructures.
  • Advanced Flow Control: Offers full-duplex flow control and half-duplex back pressure control to optimize data traffic and ensure smooth network operations.
  • Auto-Negotiation & Auto-MDI/MDI-X: Supports 10/100/1000BASE-T, allowing automatic speed and crossover detection for easier network setup and maintenance.
  • Real-Time Monitoring: Features six LEDs for real-time performance monitoring, providing clear insights into device and network status.
  • Energy Efficient: Operates with a low power consumption of just 5W, with an input range of AC110 to 240V, ensuring cost-effective performance.
  • Comprehensive Support: Backed by a three-year after-sales service, offering extensive quality assurance and maintenance services for long-term reliability.


• Specifications:

  • Optical Ports: 1x 100Base-SC
  • Copper Ports: 1x 10/100/1000BaseT RJ45
  • Wavelength: 1310nm
  • Range: 20km
  • Fiber Mode: Single-mode
  • Input Power: 5V DC, 1A
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature 14°F - 158°F (-10°C - 70°C)


• Item Includes:

  • 1x Power cord
  • 1x Warranty card


• Warranty:

  • 3 Year Warranty
