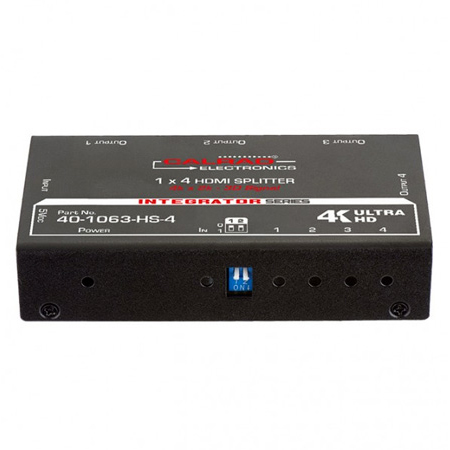

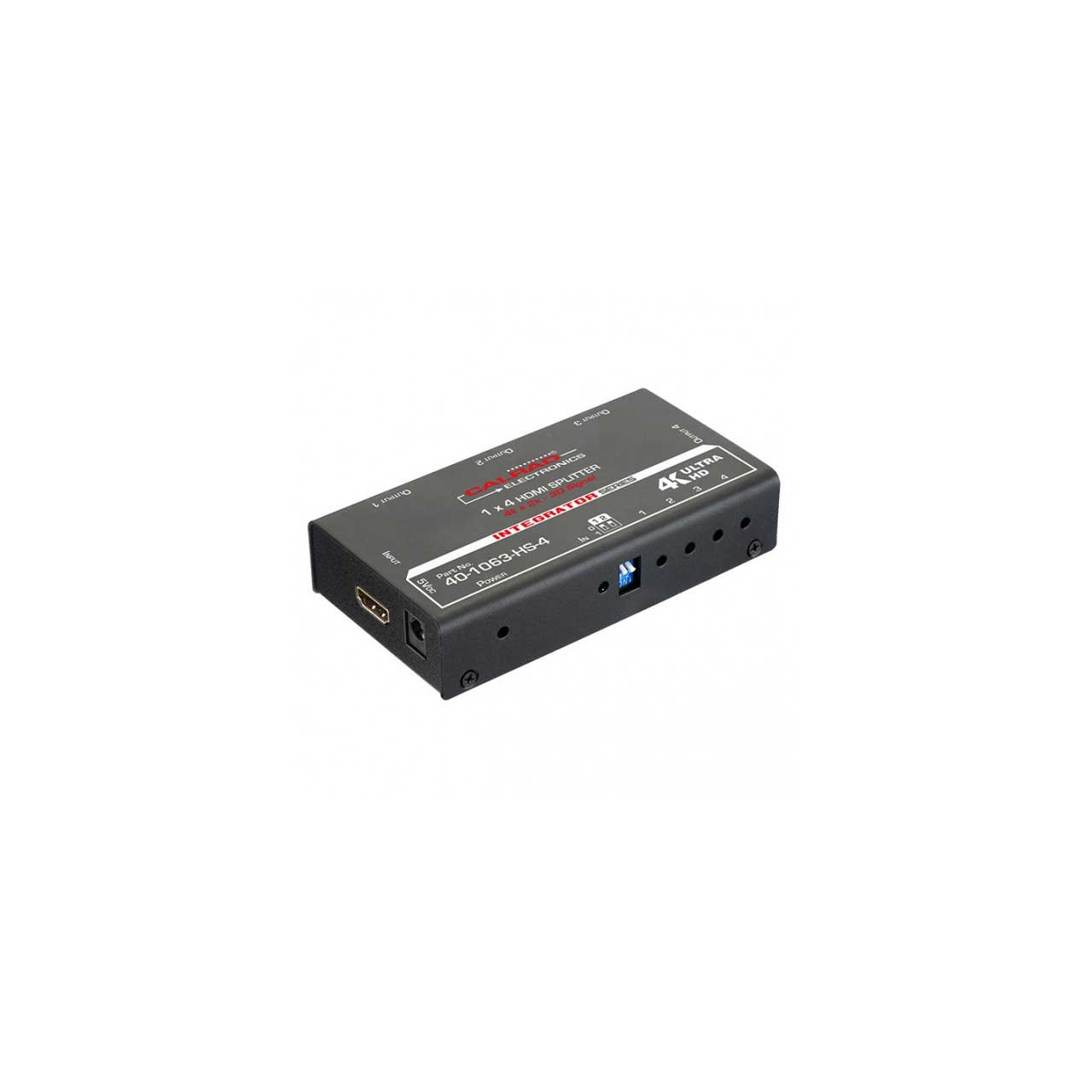

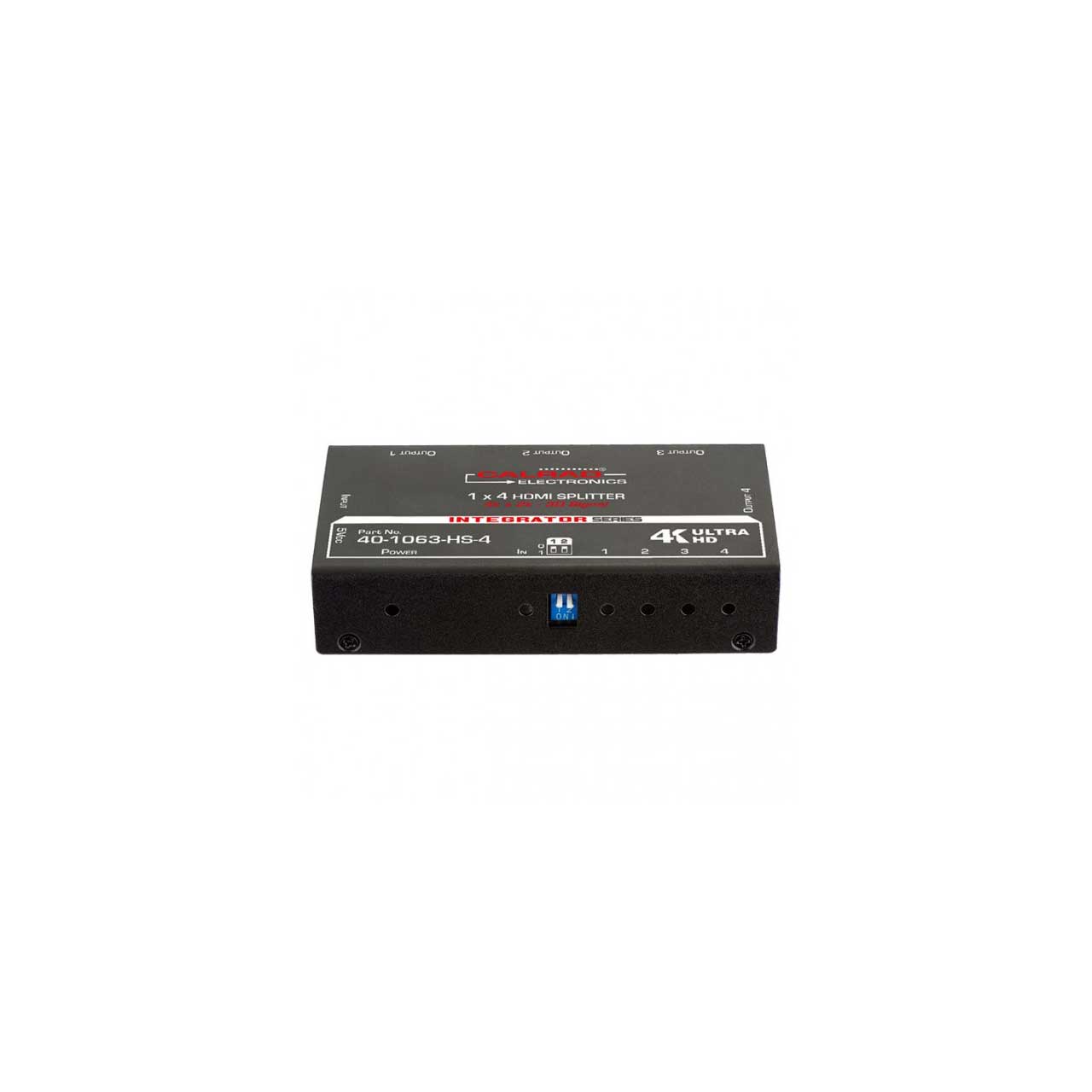

Calrad 40-1063-HS-4 HDMI 1 x 4 Ultra HD 4K Splitter

ITEM #: CLRD-40-1063-HS4 MFG #: 40-1063-HS-4

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$116.95

Our Price:

$105.55

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


40-1063-HS-4 - Overview

The Calrad 40-1063-HS-4 accepts Ultra HD 4Kx2K HDMI video sources and splits the signal to four Ultra HD displays simultaneously, without loss of quality or resolution. Works with all compatible 4Kx2K HDMI baluns. Not only does it come in a Metal case but is has two L.E.D. signal indicators illuminate when HDMI signal connectivity is working on each output. Now with selectable EDID settings you can view your source instantly without hand-shaking delays.

  • Specifications:

    • Connectors: Input: 1 x HDMI Jack, Output: 4 x HDMI Jacks, DC 2.1mm Coax Jack
    • HDTV Resolutions: 4kx2k @ 60Hz, 1080p, 1080i, 720p, 480p
    • Bandwidth: Up to 340Mhz / 3.4Gbps per Channel
    • Supports: 3D, HDCP compliant, 12bit per channel (36bit all channel) deep color
    • Audio Support: LPCM 7.1, DTS Digital, Dolby Digital, DTS-HD and Dolby True HD
    • EDID Switch: 2 Bit DIP switch to select from 4 kinds of EDID modes
    • EDID Modes: Mixed EDID, Copy EDID, Default 1080p output, Default 4Kx2K output
    • Operating Temperature: -5 to +35 degrees C
    • Operating Humidity: 5 to 90% RH (No Condensation)
    • Power Supply: DC 5V @ 1A
    • Case: Metal, Color: Black
    • Dimensions: 4.53" L x 2.44" W x 1.00" H
    • Weight: 7.40oz

  • GTIN:

    0601520416342
