Cleerline S50125MOM4P 50/125 SSF-S Indoor/Outdoor Fiber Cable

ITEM #: CLT-S50125MOM4P MFG #: S50125MOM4P

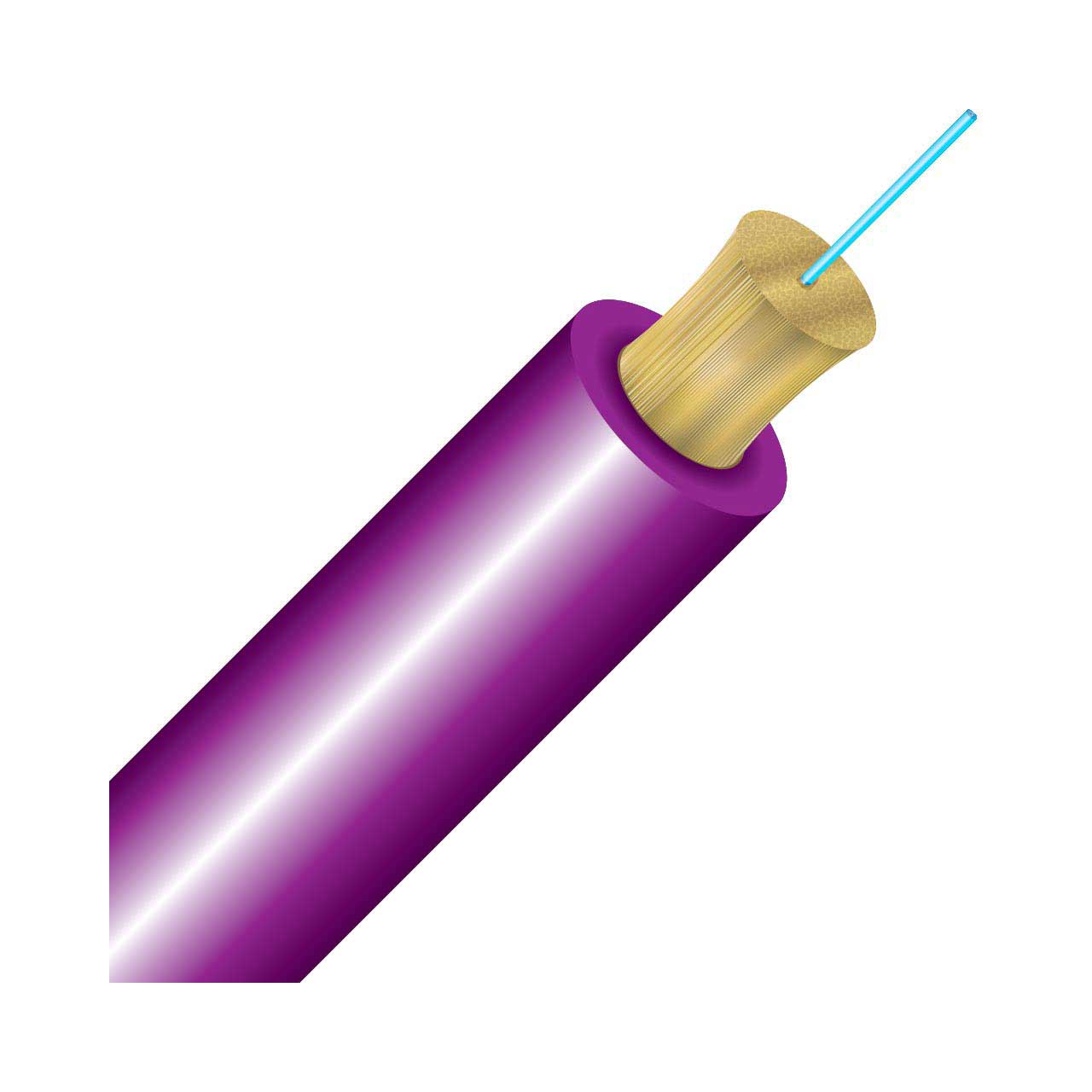

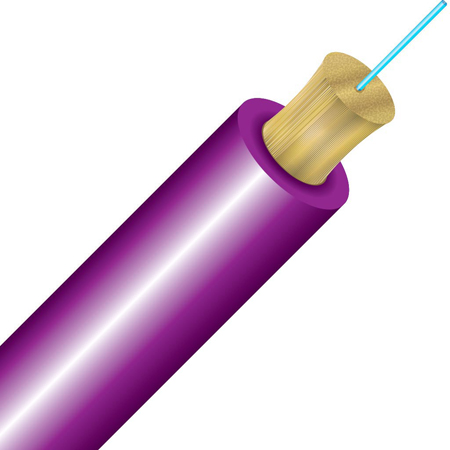

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLT-S50125MOM4P

S50125MOM4P - Overview

Cleerline SSF™ advanced optical glass fibers are much stronger, safer, and faster terminating than typical fibers. This distribution style cable provides the ultimate in durability and bend in a very compact size. SSF fibers are always protected at the glass level as a result of their integral polymeric coating, increasing both bend and tensile strength to unprecedented levels. Cleerline SSF fibers are compatible with all common connector systems on the market for standard 50/125 multimode and 9/125 Singlemode fibers.

  • Features:

    • High mechanical strength and superior fatigue & durability
    • Integral coating eliminates stripping, provides glass protection
    • 10,000x the bend of standard fiber, Fatigue constant (Nd) >30
    • Increased safety factor due to the incredible bend insensitivity
    • Glass fiber remains protected at all times from the elements
    • Simplified termination process designed for ease of use
    • Ultra low Attenuation loss on tight bend radius
    • Exclusive 250um Soft peel jacket identifier


  • Specifications:

    • Fiber
    • Fiber Count = 1
    • 50/125 Multimode OM4
    • 250um "Soft Peel" S-Type coating
    • Color Coding per TIA/EIA 568C

      Jacket
    • Riser Rated PVC / Plenum Rated PVC + UV I/O / LSZH
    • 3.0mm unit diameter
    • Violet jacket = Multimode fiber OM4
    • Sequential footage markings
    • Kevlar (Plenum/LSZH + water blocking yarns Indoor/Outdoor)

      Physical Data
    • Storage Temperature Range: -40°C to +85 °C
    • Operating Temperature Range: -20°C to +75 °C
    • Max Tensile Load for Installation: 1000(225) N(lbf)
    • Max Tensile Load Long term: 500(112) N (lbf)
    • Min. Bend Radius, Unloaded: 1 x OD (1 x 3.0mm)
    • Cable Outside Diameter, Nominal: 3.0mm
    • Cable Package: 1000ft/304.8 Reel
    • Rating: FT4-Riser / FT6-Plenum / LSZH
    • Crush Resistance (TIA/EIA 455-41A): 100 kgf/mm
    • Impact Resistance (TIA/EIA 455-25B): 1500 Impact cycles
    • Flexing @ 90 degree (TIA/EIA 455-104A): 2000 flexing cycles


  • Warranty:

    • Lifetime


  • GTIN:

    0609385474804
