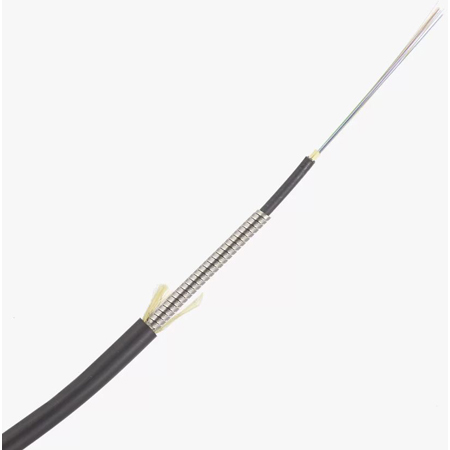

TiniFiber TF12-OS2-RIO 12 Fiber OS2 250um Riser Indoor-Outdoor Armored Fiber Optic Cable - 1000 Foot

TF12-OS2-RIO - Overview

• Features:

  • The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility
  • Lightest and smallest armor makes routing and installation faster and easier
  • Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor(AIA)
  • Provides the strongest armor with maximum bend radius and designed for all indoor & outdoor conditions
  • Crush and rodent resistant
  • All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects
  • OS2, OM1, OM3, OM4 from 1 to 144 Strands (250u/900u/Ribbon)
  • Compatible with all standard connectors
  • Kevlar Fiber Strands adds tensile strength and flexibility


• Specifications:

  • Environment: Duct, Indoor/Outdoor, Riser
  • Jacket Type: Riser
  • Fiber Count: 12
  • Fiber Category: SingleMode Fiber (OS2)
  • Fiber Type: 250um
  • Fiber Core/Cladding Diameter: 8.6~9.5um/124.8±0.7
  • Wavelengths/Max. Attenuation: 1310 ≤0.4 dB/km, 1550 ≤0.3 dB/km
  • Nominal Outer Diameter: 6.0±0.5 mm
  • Weight: 53 kg/km
  • Min. Dynamic Bend Radius: 20D
  • Min. Static Bend Radius: 10D
  • Storage Temp: -20°C to 70°C (-4 °F to 158 °F)
  • Installation Temp: -10°C to 60°C (-10 °F to 140 °F)
  • Operation Temp: -20°C to 70°C (-4 °F to 158 °F)
  • Max. Dynamic Tensile Strength: 400 N
  • Max. Static Tensile Strength: 100 N
  • Max. Dynamic Crush Resistance: 3000
  • Max. Static Crush Resistance: 500 N

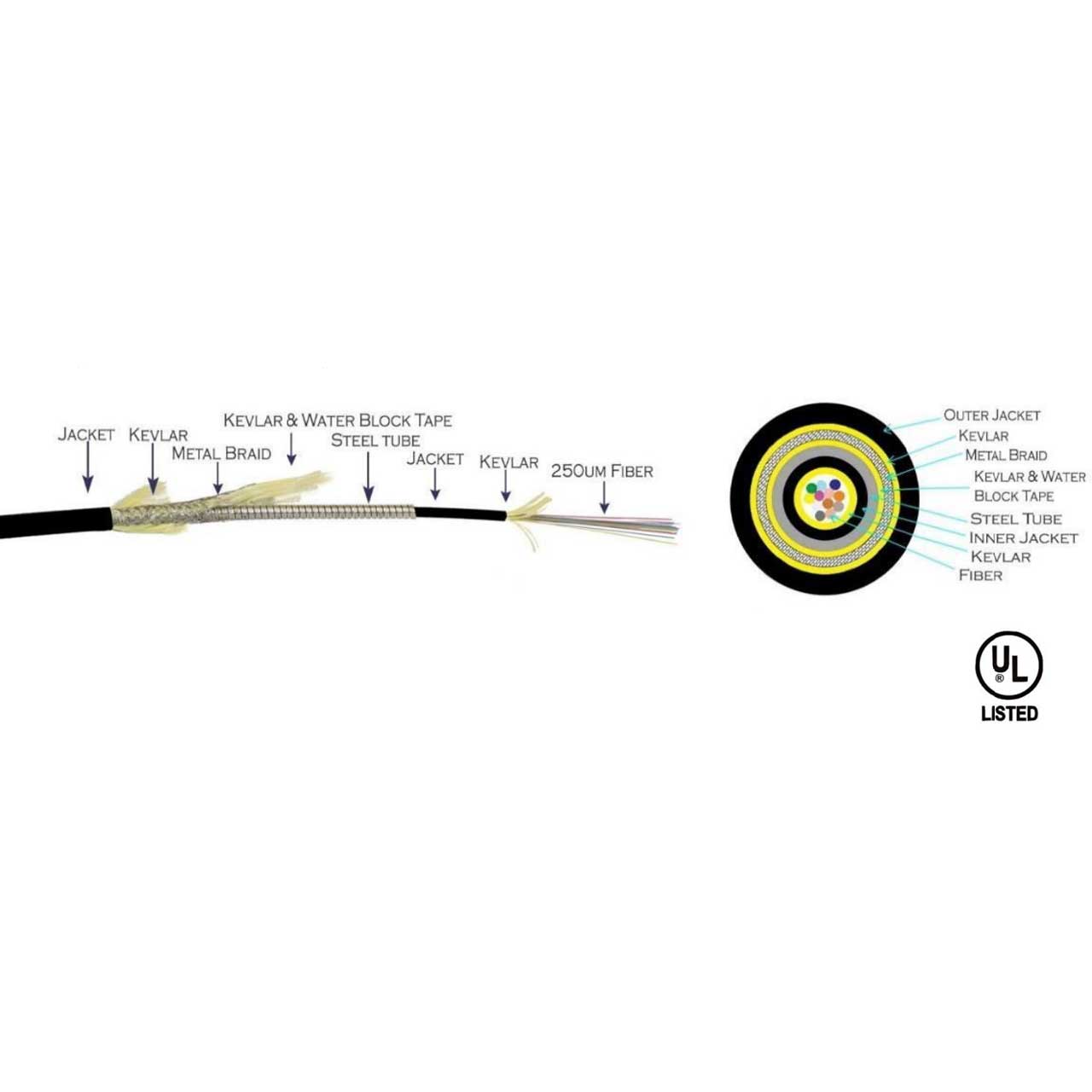

  • Stainless Steel Tube Outer Diameter: 4.0 mm
  • Stainless Steel Tube Inner Diameter: 3.25 mm
  • Steel Braid: 5*16
  • Kevlar: 6x800dtex (Under Outer Jacket)
  • Max. Data Rate: 100G / 40km
  • NEC Rating: OFCR


• Item Includes:

  • 1x tinifiber TF12-OS2-RIO 12 Fiber OS2 250um Riser Indoor-Outdoor Armored Fiber Optic Cable - 1000 Foot
