Belden 2824RW CMR/Riser Indoor Outdoor 3-Ch SMPTE 6-Fiber Stadium Cable for Composite Cameras - Dark Green - 1000-Foot

ITEM #: BL-2824RW1000-DG MFG #: 2824RW 0051000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

List Price:

$6,806.70

Our Price:

$5,594.45

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

2824RW 0051000 - Overview

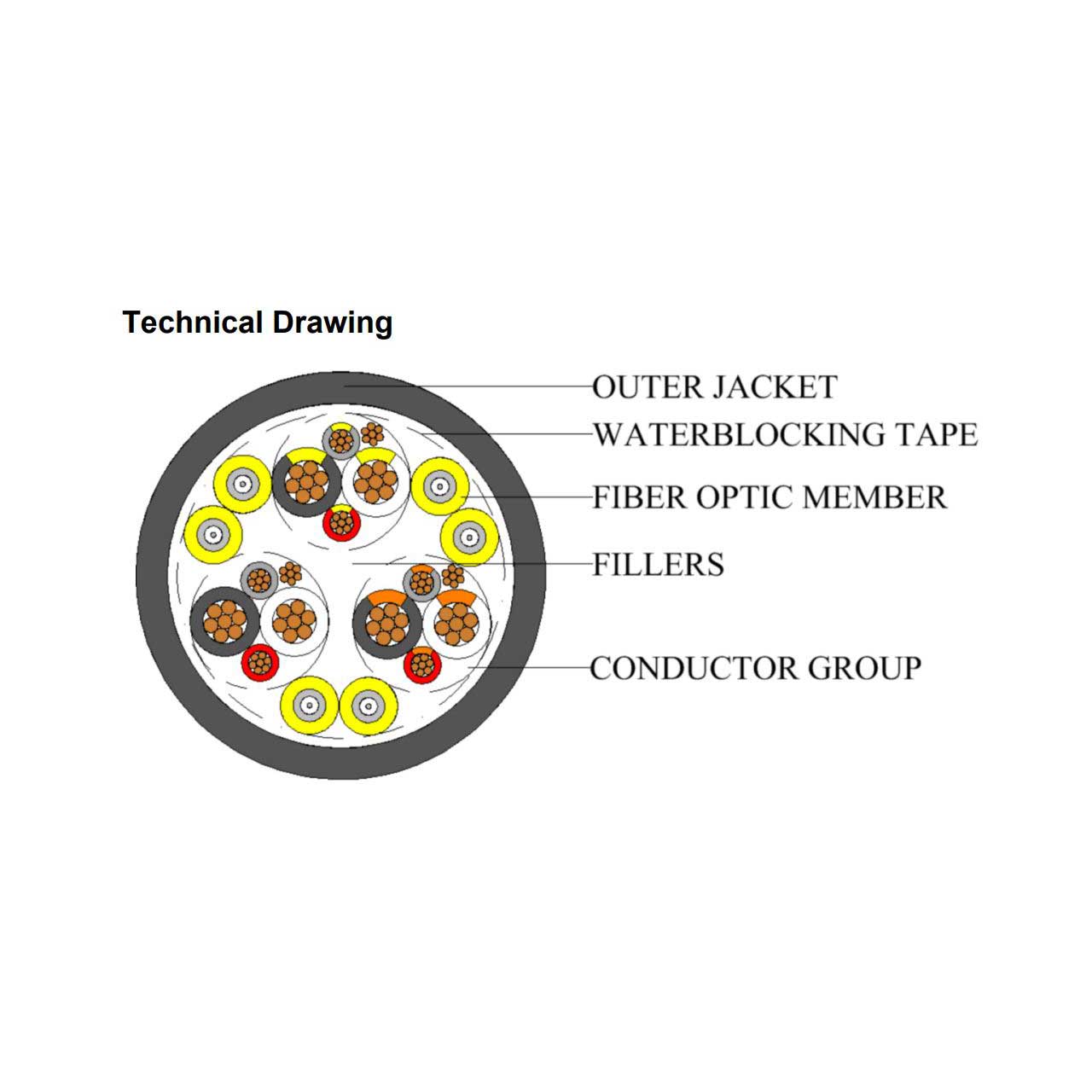

Belden 2824RW is a CMR/Riser rated, Indoor Outdoor, 3-Channel SMPTE Stadium Cable. It features 6 Single Mode Fibers, 6 TC Conductors 18 AWG (19x30) and 6 TC Conductors 24 AWG (7x32), with Beldfoil Shields, Water Blocking Tape, in a CPE Jacket.

Belden's SMPTE Cable is designed for high-definition (HD) cameras and sends multiplex audio signals and video signals to deliver superior performance.

Application
3 Channel Composite Camera Cable

  • Features:

    • Increased Durability: Internal stainless steel strength member added to assemblies
    • Low Attenuation and Return Loss: Performance enables high-speed uncompressed HD video transmission
    • Many Options Available: Choose the SMPTE hybrid cable variation that best suits the needs of your application
    • Compliance: SMPTE 311M and 304M


  • Specifications:

    • Jacket: CPE
    • Nominal Diameter@OuterJacket1 1_CP_OV: 0.555 in
    • Operating Temperature Range: -40°C to 70°C
    • Installation Temperature Range: -10°C to 70°C
    • Storage Temperature Range: -40°C to 70°C
    • Max. Pull Tension: 2700 N
    • Bulk Cable Weight: 134 lbs/1000ft


  • GTIN:

    0612825400066
