Belden's SMPTE Cable Assemblies are designed for high-definition (HD) cameras and send multiplex audio signals and video signals to deliver superior performance. Our assemblies feature machine-polished fiber contacts, soldered copper conductors, and are pre-terminated with SMPTE connectors from industry-leading manufacturers.
Receive Product Alerts

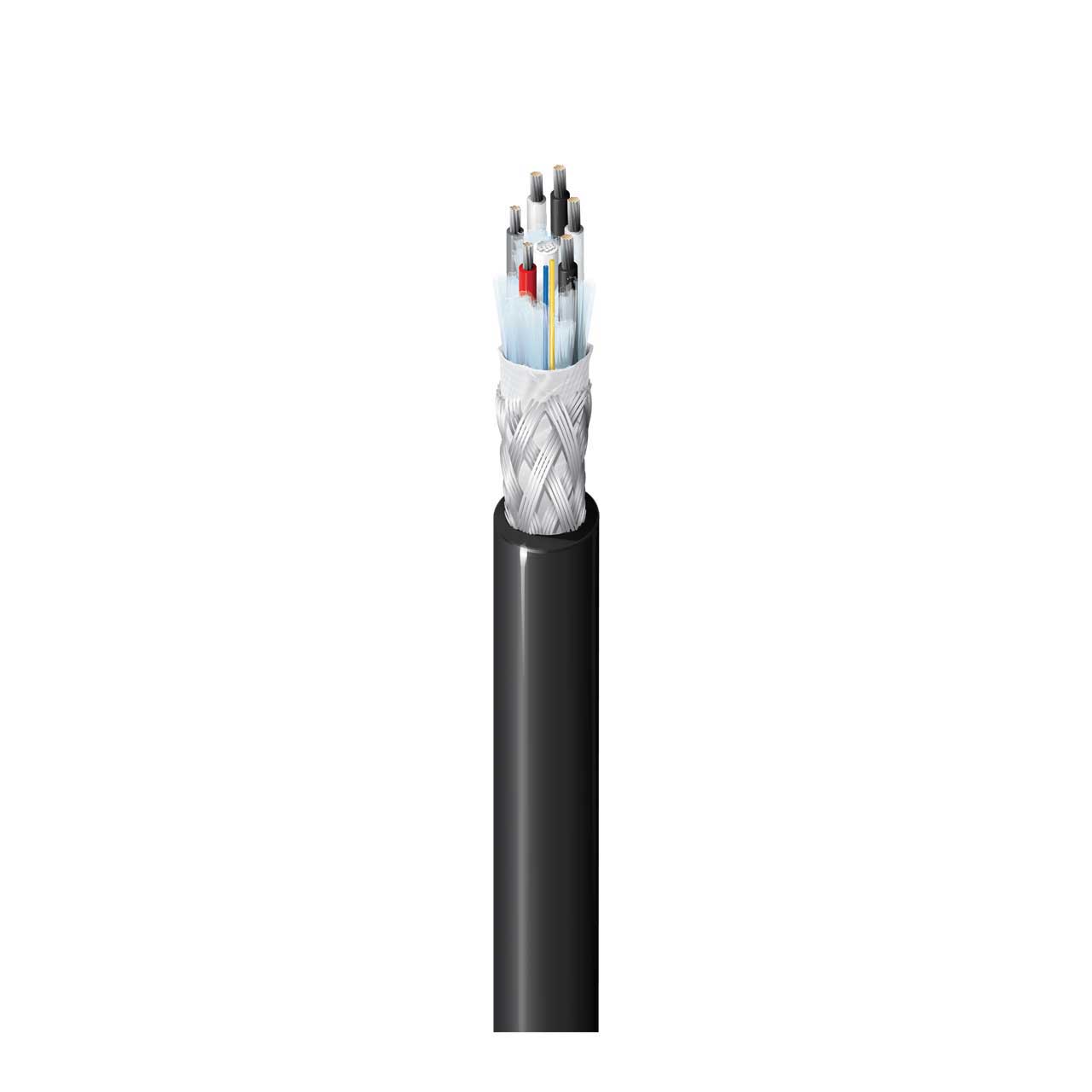

Belden 7804PX is an industry standard Indoor/Outdoor CMP SMPTE 311M Cable with 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32), 4 TC Conductors 20 AWG (19x32), PVC Insulation, TC Braid Shield (95% coverage), and PVDF Jacket.
Target Markets:
Stadiums
Large Outdoor Venues
Broadcast Trucks
Applications:
Runs through OSP and CMP areas
HD 1080p and UHD 4K video
SMPTE 311M
Professional single and multi-channel audio
Intercom
Security
I/O CMP Broadcast Cable Overview
This cable enables you to run 1 cable through air handling spaces & outdoor areas exposed to the environment. No transition needed!
What Is OSP Cable? OSP stands for "Outside Plant Engineer". With outdoor ratings, OSP cable stands out from traditional indoor-rated copper or fiber cable for its ability to maintain performance despite harsh environmental conditions. It's designed to withstand flooding, moisture and high and low temperatures, and resists abrasion and tearing, allowing you to extend your network outside, reaching across a large campus or facility. Applications include Conduit in Concrete Slab, Conduit In-Grade Below Concrete Slab and especially Exterior Camera Installation.
