DP6-W - Overview

Put Some Swing Back Into Your Sound System!

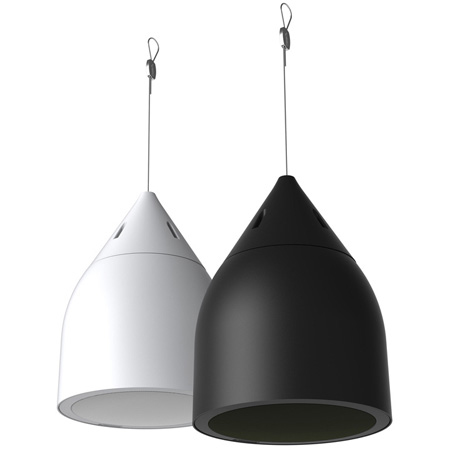

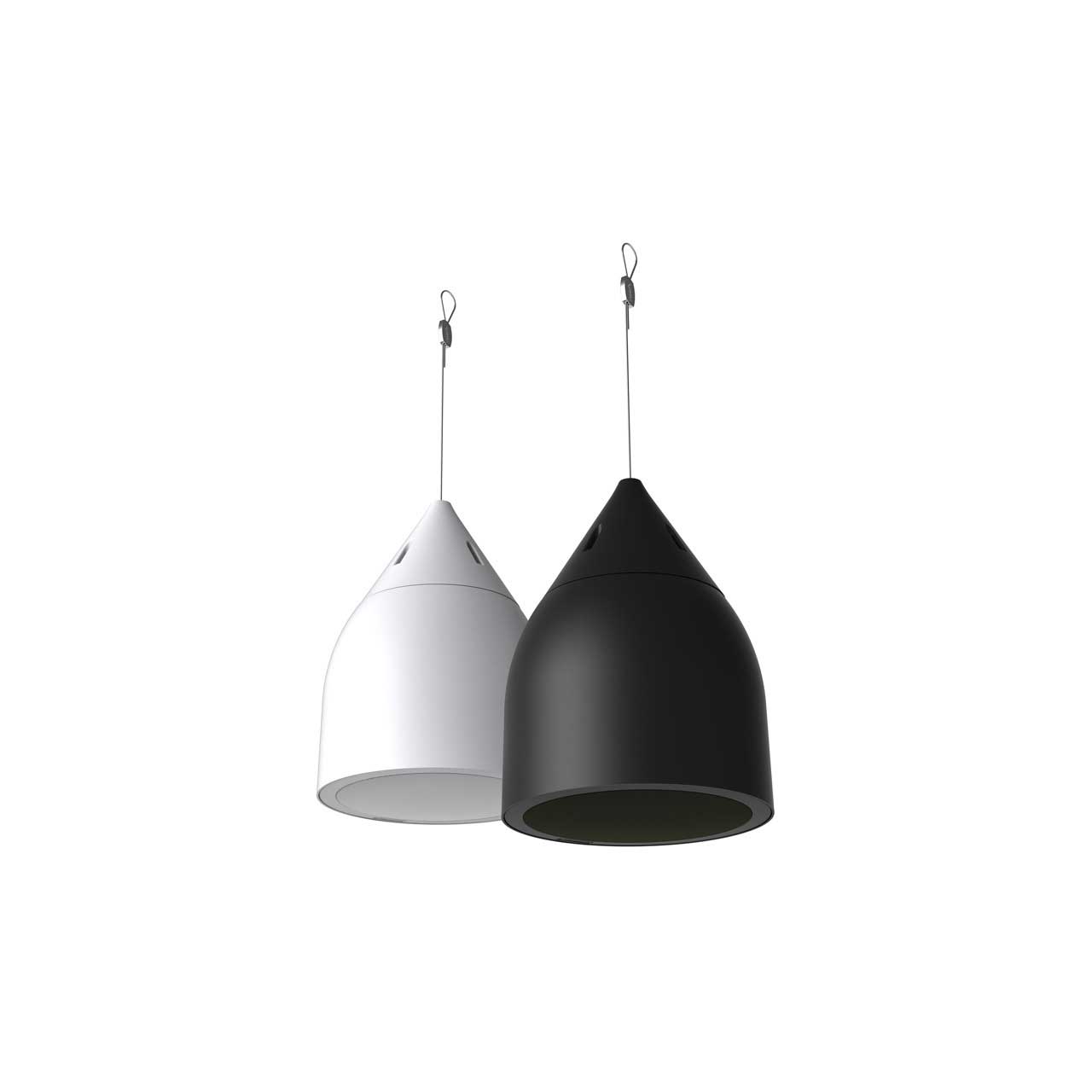

The DP6 Pendant Loudspeaker is our newest addition to the Distributed Design Series of ceiling and surface mount loudspeakers. A true coaxial loudspeaker with an HF compression driver, the DP6 offers Community's patented Carbon Ring Cone Technology and Tru-Phase high-frequency waveguide for consistent, wide dispersion up to 16 kHz. Uniform voicing allows the entire range of Distributed Design ceiling, surface and pendant mount loudspeakers to be combined in a single installation with no compromise of consistency from zone to zone.

The DP6 is equipped with a built-in autoformer. An easily accessible selector switch on the face of the loudspeaker makes it simple to choose between 8 ohm or 70V/100V operation, while the integrated rear cover conceals wiring and hanging hardware for a clean, aesthetically pleasing installation. Two 15-foot high tensile galvanized steel wire rope suspension cables with integrated spring clips are included.

  • Features:

    • Stylish, contoured contemporary pendant design.
    • Same components and voicing as the Distributed Design ceiling and surface mount loudspeaker family.
    • Consistent, wide dispersion up to 16 kHz.
    • True coaxial loudspeakers with HF compression drivers.
    • Tru-Phase. high-frequency waveguide.
    • Patented Carbon Ring Cone Technology.
    • High efficiency, high output, high intelligibility, low distortion.
    • Paintable enclosure constructed of high-impact ABS plastic to
    • reduce resonances.
    • Easy-access power tap switch for selectable 8 ohm or 70V/100V operation.
    • Integrated rear cover hiding all wires and hanging hardware.
    • Weather-resistant constructed with treated drivers and two layer
    • powder coated grilles.
    • ETL listed to comply with UL1480.
    • Available in standard black or white finishes.
    • Five year warranty.

  • Specifications:

    • Transducers: LF -1 x 6.5", HF - 1 x 1" exit compression driver.
    • Operating Range: 65 Hz - 22 kHz.
    • Sensitivity (1W/1m): 94 dB.
    • Power Handling: 100W continuous @ 8 ohms.
    • Continuous Max Output: 114 dB (120 dB Peak).
    • 70V/100V Autoformer: 60W, 30W, 15W, 7.5W (@70V only).
    • Nominal Beamwidth (H x V): 125° Conical.
    • Finish: Black or white paintable ABS matte plastic, dual-layer powder-coated steel grille.
    • Dimensions (H x Dia): 14.7" x 11.2" (374 x 285 mm).

  • GTIN:

    0617174006372
