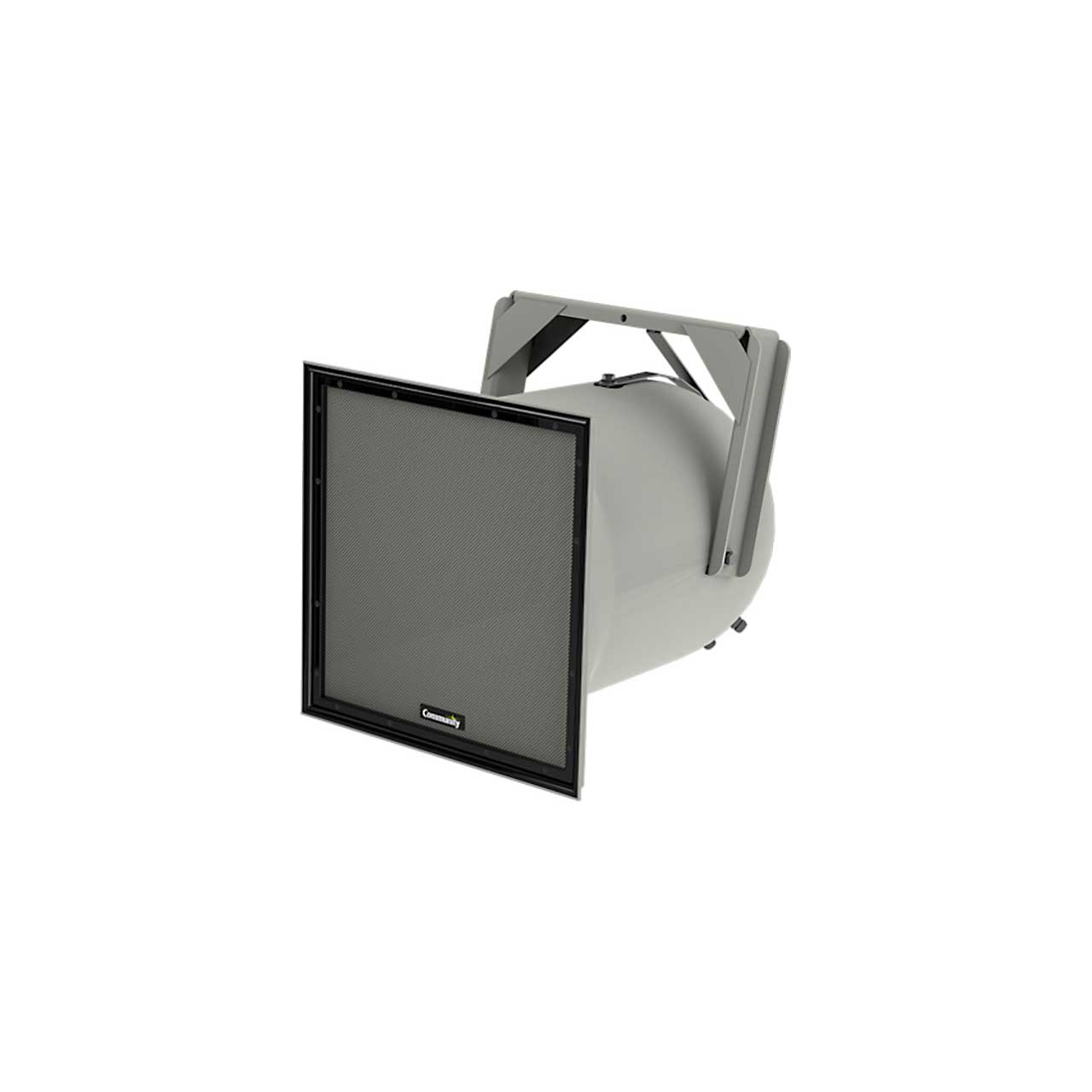

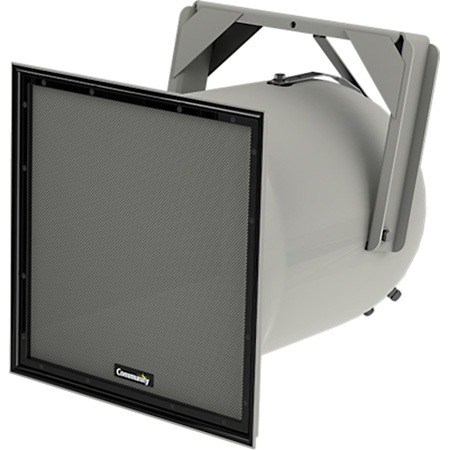

Community Pro R2-52MAX Full-Range 3-way High Output Full-Range 50 x 20 Weather-Resistant Loudspeaker

ITEM #: CMTY-R2-52MAX MFG #: R2-52MAX

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$6,602.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


R2-52MAX - Overview

The R2-52MAX is a three-way, full-range loudspeaker system designed to provide No Compromises premium music reproduction at very high output levels, and also improves the legendary R2 voice projection and intelligibility capabilities. It is designed with the same materials and construction as the standard R2 for extreme weather resistance, and can withstand long-term exposure to tough environmental conditions. The R2-MAX is constructed with premium components in a biamp format to maximally optimize its performance. It uses a very high sensitivity 1 HF compression driver that provides extended HF response and a balanced frequency response with the rest of the system. Operated with a high crossover frequency, the HF driver maintains very high headroom, delivering effortless performance. The dual, high power 12 LF drivers feature an aluminum demodulation ring for very clean, low distortion performance. The dual midrange drivers are higher performance versions of the legendary low compression ratio M200 2 exit compression driver, achieving 3dB greater output with extremely low distortion. The passive MF/HF horn signal aligns the drivers for the best possible music and speech performance. The result is an excellent loudspeaker system that is capable of exceeding expectations in any application.

  • Features:

    • Modern stadium loudspeaker, designed to meet the needs of today's sporting venues for superb musicality, excellent speech intelligibility and very high output
    • Signal aligned passive MF/HF horn coaxially mounted in front of electronically signal aligned LF drivers
    • Very high sensitivity HF driver for improved balanced response and extension
    • High sensitivity and very high output (135 dB max), with flat extended frequency response

  • Specifications:

    • Operating Mode: Biamp with DSP (Passive MF/HF)
    • Operating Environment: Indoor / Continuous outdoor direct exposure
    • Operating Range: 71 Hz to 19.5 kHz
    • Nominal Beam width: (H x V) 50°x 20°
    • Input Connection: 2 x 12' (3.6 m) 16-2 SJOW cables
    • Mounting Provisions: (5) 1/2-13 threaded rigging points, Steel zinc-rich epoxy dual-layer powder-coated bracket with (2) aluminum aiming straps to secure angle
    • Environmental: IP55 per IEC 60529, conforms with MIL-STD-810G
    • Dimensions: H x W x D 24.75 x 24.75 x 30.75 (629 x 629 x 781 mm)
    • Weight: 122 lbs (55.3 kg)
