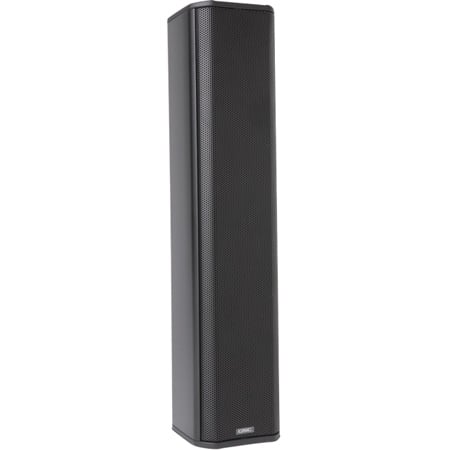

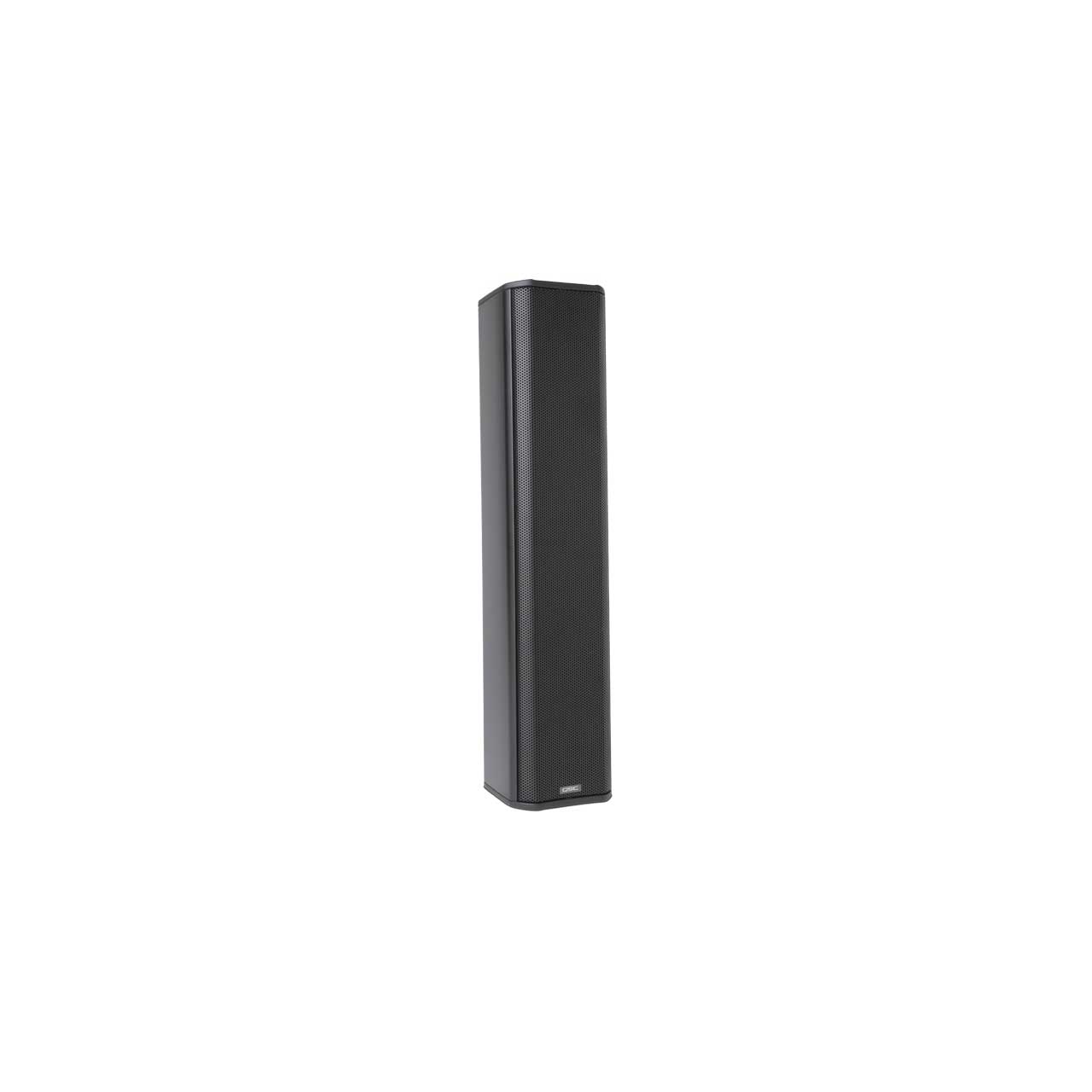

QSC AD-S802T Column Surface-Mount 8-Driver Loudspeaker - 70V/100V or 8 Ohm Bypass Loads - Black - Each

AD-S802T - Overview

• Features:

  • Deliberately unobtrusive industrial design.
  • Available in white (RAL 9010) or black (RAL 9011).
  • Paintable enclosure and grill.
  • Complete EASE, CLF, CAD & BIM information.
  • Rugged aluminum construction.
  • UV Inhibitors in all white models.
  • IP-54 rating for dust and splash resistance.
  • Powder-coated grills and weather-treated cones.
  • Close to wall pan/tilt bracket included.
  • Low saturation 70/100V transformers.
  • 8 ohm low impedance bypass.
  • Screw-down Euro block connector with loop-through.
  • Sealable input weather cup - keeps moisture away from wiring.


• Specifications:

  • Transducer: (x8) 2.75 in (69.8 mm) weather treated paper cone woofer
  • Effective Frequency Range: 90 Hz - 17 kHz
  • Rated Noise Power / Voltage: 120 watts / 31 volts (rms)
  • Sensitivity [dB]: Rated @1W, 1m 2, 3, 4, 8 : 87, EN54-24 @1W, 4m 9 : TBD
  • Coverage (-6 dB) [°] Horizontal x Vertical: 160 x 20, 500Hz: 180 x 90, 1kHz: 180 x 35, 2kHz: 160 x 22, 4kHz: 180 x 20
  • Declared values of SPL, 1/3rd octave band CPB, 1W, 4m, EN54-24 eq applied [Hz : dB]: 500: TBD; 630: TBD; 800: TBD; 1000: TBD, 1250: TBD; 1600: TBD; 2000: TBD; 2500: TBD, 3150: TBD; 4000: TBD
  • Directivity Factor: TBD
  • Directivity Index [dB]: 12
  • Maximum SPL [dB]: Rated, 1m (continuous / peak): 108 / 114, EN54-24, 4m (low-Z / Highest-tap) 9 : TBD / TBD
  • Recommended Amplifier: 120 watts

    TransformeR Taps / Impedance
  • Bypass: 8Ω
  • 7.5W (70V); 15W (100V) Tap: 666Ω
  • 15W (70V); 30W (100V) Tap: 333Ω
  • 30W (70V); 60W (100V) Tap: 167Ω
  • 60W (70V); N/A (100V) Tap: 83Ω


  • Input Connector Type: Euroblock connector with parallel output
  • Enclosure Material: Powder coated aluminum
  • Grille Material: Powder coated aluminum
  • Ingress Protection: IP-54
  • Operating Environment: Designed for indoor or outdoor use
  • Operating Temperature Range: -4 to 122° F (-20 to 50° C)
  • Net Weight: 13.7 lb (6.2 kg)
  • Product Dimensions (H x W x D): 23.4 x 5.2 x 5-inch (595 x 131 x 126 mm)
  • Shipping Weight: 19.4 lb (8.8 kg)
  • Shipping Dimensions (H x W x D): 12.3 x 9.9 x 32.4-inch (312 x 251 x 823 mm)


  • Safety Agency
  • UL1480A
  • EN54-24: 2008 type B, (pending)
  • Transformer UL registered per UL1876, ROHS, CE compliant


• Item Includes:

  • 1x QSC AD-S802T Column Surface-Mount 8-Driver Loudspeaker - 70V/100V or 8 Ohm Bypass Loads - Black - Each
  • 1x Sealed input cover plate with gland nut
  • 1x Quick Hang Pan/Tilt wall bracket
  • 1x Shoulder eyebolt safety tether anchor
