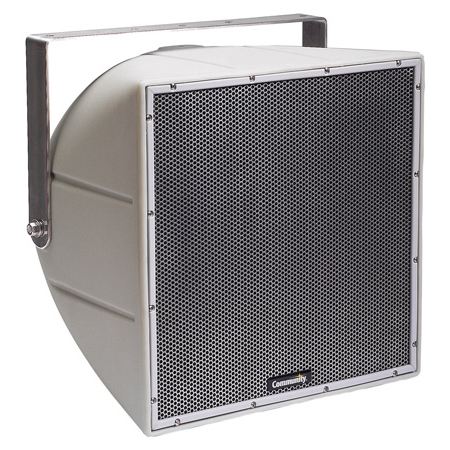

Community R.5-66TZ Full-Range 2-Way 12-Inch Grey 60x60 All-Weather 70V/100V

ITEM #: CMTY-R5-66TZ MFG #: R.5-66TZ

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,596.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


R.5-66TZ - Overview

The R.5-66TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Five year limited product warranty - fifteen-year enclosure warranty.Applications:
Fill speaker for stadia, athletic fields, arenas and race tracks
Convention centers
Outdoor background music / paging systems
Theme and amusement parks
Fairgrounds, rodeos, air shows
Malls, cruise ships, skating rinks
Swimming pools
Portable sound systems

  • Features:

    • Weather-resistant, rotomolded UV enclosure
    • Weather-treated drivers and crossovers
    • Corrosion-resistant zinc-rich epoxy dual-layer
    • powder coated steel grille and yoke
    • Pattern control down to 630 Hz
    • High efficiency
    • Integral mounting points
    • High power passive crossover
    • DYNA-TECH protection circuitry
    • Multi-tap 200W autoformer for 70V and 100V inputs

  • Specifications:

    • Loudspeaker Type: 2-way, horn loaded coaxial, weather-resistant
    • Operating Range: 85 Hz to 16 kHz
    • 125 Hz to 10 kHz (±4 dB)
    • Max Input Ratings: 200W, 70V/100V
    • Recommended Power
    • Amplifier:
    • 25W to 200W @ 70 Volts
    • 50W to 200W @ 100 Volts
    • Sensitivity (1W/1m): 102 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
    • 102 dB SPL (250 Hz to 4 kHz speech range)
    • Maximum Output on
    • 200W Tap: 125 dB SPL
    • 200W Nominal
    • Impedance: 25 ohms
    • 200W Minimum
    • Impedance: 16.4 ohms @ 9.3 kHz
    • Nominal -6dB
    • Beamwidth:
    • 60° H (+3° / -8°, 1.6 kHz to 12.5 kHz)
    • 60° V (+20° / -16°, 1.6 kHz to 12.5 kHz)
    • Axial Q / DI: 21.4 / 13.3, 1.6 kHz to 12.5 kHz
    • Crossover Frequency: 2 kHz
    • Recommended Signal
    • Processing: 90 Hz high pass filter
    • Drivers: LF (1) 12" Ferrofluid-cooled
    • HF (1) 1" exit, titanium free, Ferrofluid-cooled
    • Driver Protection: DYNA-TECH
    • Input Connection: 12 foot (4 m) SJOW #16 gauge
    • Controls:
    • 4 position autoformer TAP select switch
    • 70V switchable taps @ 200W, 100W, 50W, 25W
    • 100V switchable taps @ 200W, 100W, 50W
    • Enclosure: Rotomolded LLDPE, light grey
    • Mounting/Rigging
    • Provisions: (5) 3/8-16 rigging points
    • Grille:
    • 3-layer WeatherStopT, light grey
    • (Zinc-rich epoxy dual-layer powder coated
    • perforated steel grille, foam, woven poly mesh)
    • Required Accessories: 24 dB/Oct high pass filter
    • Supplied Accessories: (1) Yoke bracket, light grey
    • (1) Aiming strap
    • Optional Accessories: PMB Series pole mount brackets
    • Dimensions-Height: 16 inches (406.4 mm)
    • Width: 16 inches (406.4 mm)
    • Depth: 15.94 inches (404.88 mm)
    • Weight: 37 lbs (16.8 kg)
    • Shipping Weight: 42 lbs (19.1 kg)

  • GTIN:

    0617174010706
