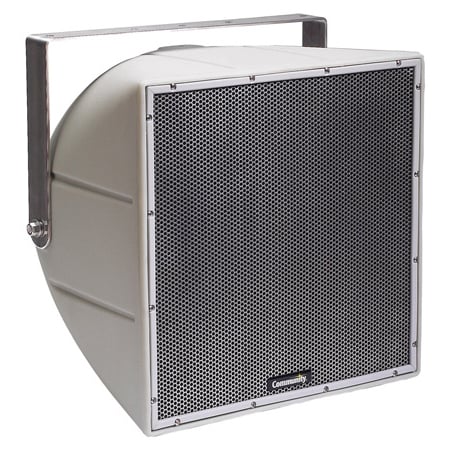

Community R.5COAX99 2-Way 12-Inch Grey 90x90 All-Weather Full Range Loudspeaker

ITEM #: CMTY-R5COAX99 MFG #: R.5COAX99

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,486.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


R.5COAX99 - Overview

The R.5COAX99 high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. Five-year limited product warranty - fifteen-year enclosure warranty.

APPLICATIONS:
Convention centers
Fill speaker for stadia, athletic fields, arenas and race tracks
Outdoor background music / paging systems
Theme and amusement parks
Fairgrounds, rodeos, air shows
Malls, cruise ships, skating rinks
Swimming pools
Portable sound systems

  • Features:

    • Weather-resistant, rotomolded UV enclosure
    • Weather-treated drivers and crossovers
    • Corrosion-resistant zinc-rich epoxy dual-layer
    • powder coated steel grille and yoke
    • High fidelity
    • High efficiency
    • Integral mounting points
    • High power passive crossover
    • Optional 200W, 70V autoformer
    • Five-year product warranty / Fifteen-year enclosure warranty

  • Specifications:

    • Type: 2-way, coaxial, weather-resistant, full-range
    • Operating Range: 80 Hz to 18 kHz
    • 90 Hz to 12.5 kHz (±3.5 dB)
    • Max Input Ratings: 200W continuous, 500W program
    • 40 volts RMS, 89 volts momentary peak
    • Recommended Power
    • Amplifier: 420W to 600W @ 8 ohms
    • Sensitivity (1W/1m): 96 dB SPL (100 Hz to 13 kHz 1/3 octave bands)
    • 96 dB SPL (250 Hz to 4 kHz speech range)
    • Maximum Output: 119 dB SPL / 126 dB SPL (peak)
    • Nominal Impedance: 8 ohms
    • Minimum Impedance: 3.8 ohms @ 9.9 kHz
    • Nominal -6dB
    • Beamwidth:
    • 90°H (+10° / -23°, 1.6 kHz to 12.5 kHz)
    • 90°V (+4° / -30°, 1.6 kHz to 12.5 kHz)
    • Axial Q / DI: 10.7 / 10.3, 1.6 kHz to 12.5 kHz
    • Crossover Frequency: 2 kHz
    • Recommended Signal
    • Processing: 60 Hz high pass filter
    • Drivers: LF 1 x 12"
    • HF 1 x 1" exit titanium free, Ferrofluid-cooled
    • Driver Protection: DYNA-TECH protection circuitry
    • Input Connection: 12 foot (4 m) SJOW #16 gauge
    • Controls: None
    • Enclosure: Rotomolded LLDPE, light grey
    • Mounting/Rigging
    • Provisions: (5) 3/8-16 rigging points
    • Grille:
    • 3-layer WeatherStopT, light grey
    • (Zinc-rich epoxy dual-layer powder coated
    • perforated steel grille, foam, woven poly mesh)
    • Required Accessories: 24 dB/Oct high pass filter
    • Supplied Accessories: (1) Yoke bracket, light grey
    • (1) Aiming strap
    • Optional Accessories: PMB Series pole mount brackets
    • Dimensions:
    • Height: 16 inches (406.4 mm)
    • Width: 16 inches (406.4 mm)
    • Depth: 15.94 inches (404.88 mm)
    • Weight: 35 lbs (15.9 kg)
    • Shipping Weight: 42 lbs ( 19.1 kg)

  • GTIN:

    0617174010997
