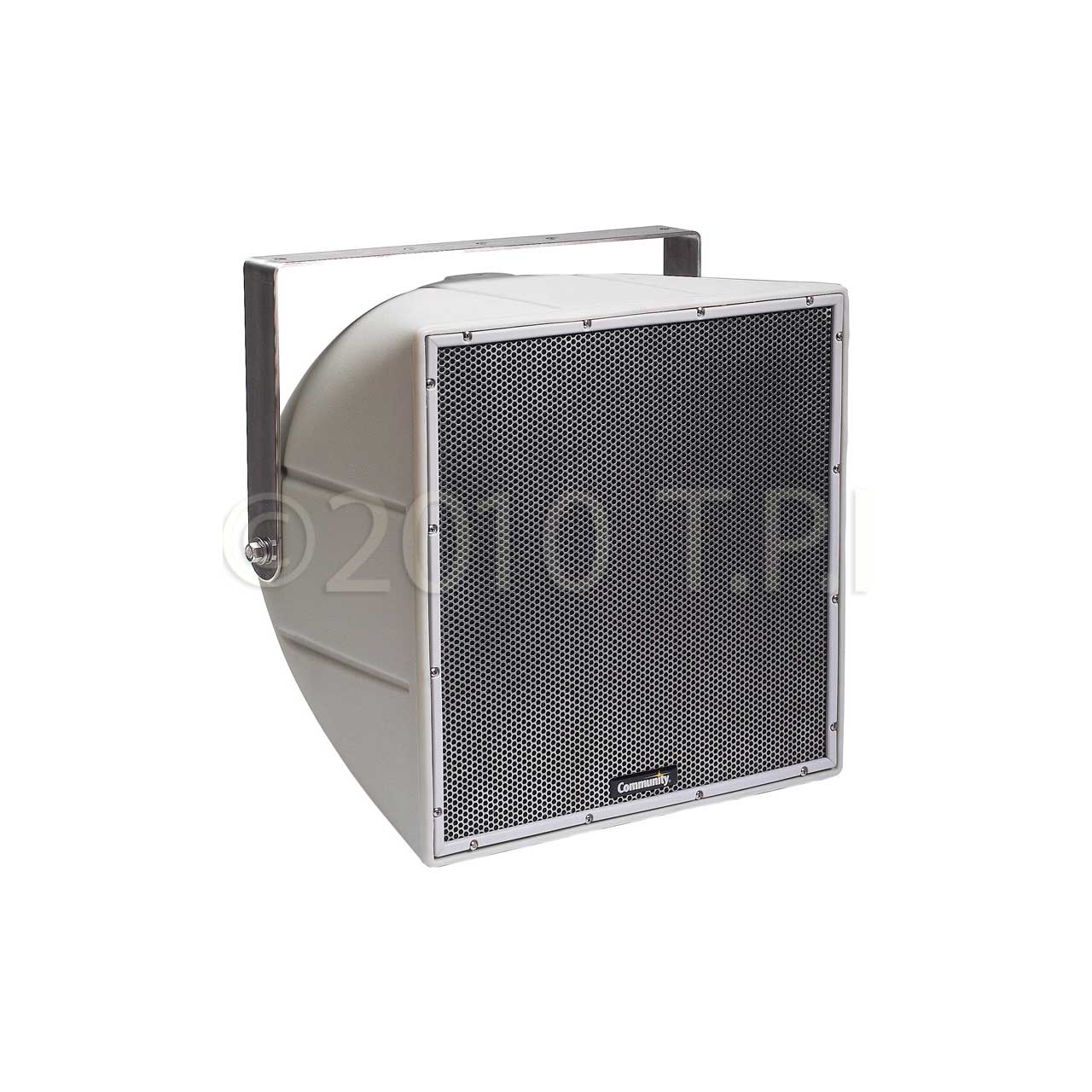

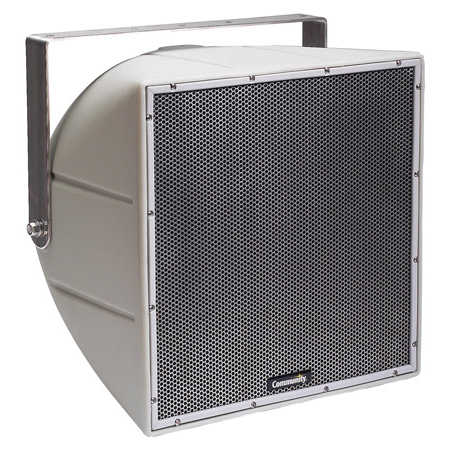

Community R.5COAX99T 2-Way Coaxial 12-Inch Grey 90x90 Weather-Resistant Full-Range 200W 70V/100V Loudspeaker

ITEM #: CMTY-R5COAX99T MFG #: R.5COAX99T

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,596.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


R.5COAX99T - Overview

The R.5COAX99T high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R.5COAX99T comes with a factory-installed 200W, 70V/100V autoformer. Five-year limited product warranty - fifteen-year enclosure warranty.Applications:
Convention centers
Fill speaker for stadia, athletic fields, arenas and race tracks
Outdoor background music / paging systems
Theme and amusement parks
Fairgrounds, rodeos, air shows
Malls, cruise ships, skating rinks
Swimming pools
Portable sound systems

  • Specifications:

    • Loudspeaker Type: 2-way, coaxial, weather-resistant, full-range
    • Operating Range:
    • 80 Hz to 18 kHz
    • 90 Hz to 13 kHz (±3.5 dB)
    • 200 / 100 / 50 / 25 watt autoformer taps @ 70.7V
    • Sensitivity (1W/1m): 97 dB SPL (100 Hz to 13 kHz 1/3 octave bands)
    • 96 dB SPL (250 Hz to 4 kHz speech range)
    • 200W Nominal
    • Impedance: 25 Ohms
    • Minimum Impedance: 15.9 Ohms @ 9.8 kHz
    • Nominal -6dB
    • Beamwidth:
    • 60°H (+20° / -6°, 1.6 kHz to 12.5 kHz)
    • 60°V (+20° / -3°, 1.6 kHz to 12.5 kHz)
    • Axial Q / DI: 15.2 / 11.8, 1.6 kHz to 12.5 kHz
    • Crossover Frequency: 2 kHz
    • Recommended Signal
    • Processing: 80 Hz high pass filter
    • Drivers: LF 1 x 12"
    • HF 1 x 1" exit titanium free, Ferrofluid-cooled
    • Driver Protection: DYNA-TECH protection circuitry
    • Input Connection: 12 foot (4m) SJOW #16-gauge cable
    • Enclosure: Rotomolded LLDPE, light grey
    • Mounting/Rigging
    • Provisions: (5) 3/8-16 rigging points
    • Grille:
    • 3-layer WeatherStopT, light grey
    • (Zinc-rich epoxy dual-layer powder coated
    • perforated steel grille, foam, woven poly mesh)
    • Required Accessories: 24 dB/Oct high pass filter
    • Supplied Accessories: (1) Yoke bracket, light grey
    • (1) Aiming strap
    • Optional Accessories: PMB Series pole mount brackets
    • Dimensions-Height: 16 inches (406.4 mm)
    • Width: 16 inches (406.4 mm)
    • Depth: 15.94 inches (404.88 mm)
    • Weight: 38.5 lbs (17.46 kg)
    • Shipping Weight: 47 lbs ( 21.3 kg)

  • GTIN:

    0617174011024
