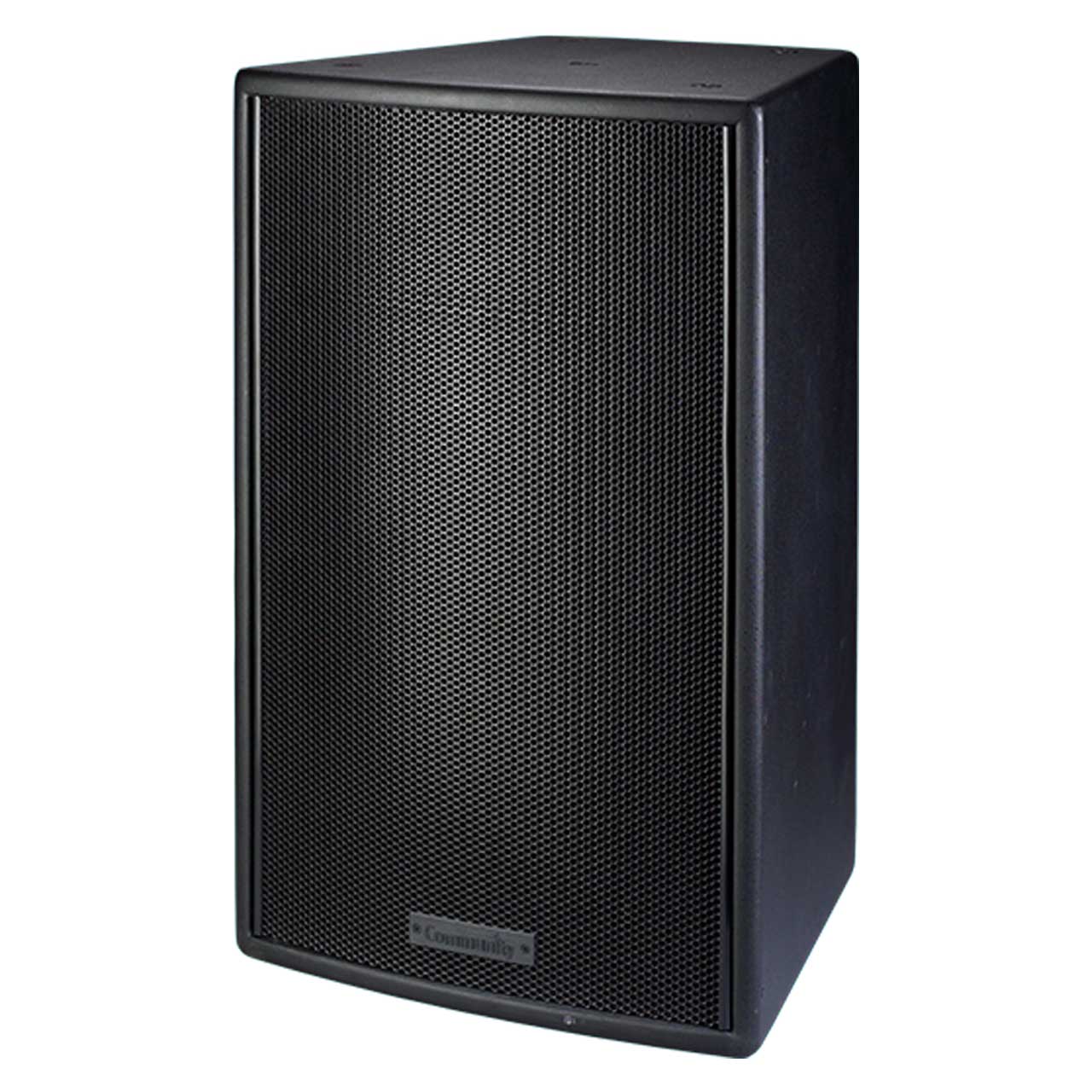

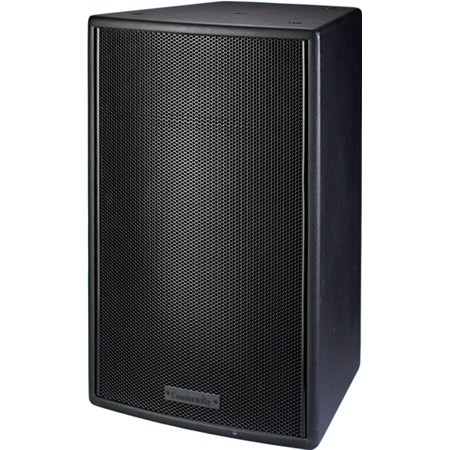

Community V2-1296B Full-Range 2-Way 12 Inch Loudspeaker - 1 Inch HF - 90 X 60 Degree Dispersion - Black

ITEM #: CMTY-V2-1296B MFG #: V2-1296B

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,034.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


V2-1296B - Overview

The Community V2-1296B is a 12-inch, two-way, full range loudspeaker system in black suitable for use in a wide spectrum of fixed installations. Compact and extremely powerful, the V2-1296 handles applications ranging from jazz clubs and audiovisual presentations, to rock and roll performances. Its trapezoidal design allows it to be clustered with like units, forming powerful arrays. The 90° x 60° pattern makes the V2-1296 ideal for applications requiring a wide coverage angle, such as in rooms that are wider than they are deep. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware from Biamp, or it may be installed using a third-party mounting device.

The V2-1296 provides extended high-frequency response, low distortion output, a tight, punchy bass response, and precise pattern control. Featuring carefully designed crossovers that provide flat acoustic power response through the critical midrange region and driver protection circuitry, the V2-1296 is a versatile performer for use in music and speech applications that require high quality, high-power sound reinforcement at an affordable price

  • Features:

    • Discreet and aesthetic trapezoidal enclosure
    • Optimized voicing for full-range reproduction
    • DYNA-TECH driver protection circuitry
    • Ferrofluid-treated HF driver for improved heat dissipation
    • Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability in LF driver
    • Terminal strip and NL4-compatible connectors
    • Multiple bracket options offer affordable arraying solutions (sold separately)
    • Included in Community's Forecaster HD ceiling distributed system software
    • Available in standard black or white finishes

  • Specifications:

    • Loudspeaker Type: Two-way, full-range, trapezoidal, vented bass
    • Operating Range: 60 Hz to 18 kHz (-10 dB)
    • Frequency Response: 90 Hz to 16 kHz (±3 dB)
    • Max Input Ratings: 200W continuous, 500W program,40 volts RMS, 80 volts momentary peak
    • Sensitivity (1W/1m): 98 dB (100 Hz to 12.5 kHz) free space
    • Maximum Output: 121 dB SPL / 127 dB SPL (peak)
    • Nominal Impedance: 8 ohms
    • Minimum Impedance: 6.2 ohms @ 160 Hz, Nominal -6dB
    • Beamwidth: 90° H x 60° V (in vertical position)
    • Crossover Frequency: 1.3 kHz
    • Processing: 60 Hz, 24 dB/octave Butterworth
    • Drivers: LF 1 x 12-inch cone, HF 1 x 1-inch
    • Driver Protection: DYNA-TECH protection circuitry
    • Input Connection: NL4-compatible locking connector with
    • Controls: None
    • Enclosure: Trapezoidal (22.5° included angle)
    • Provisions: 13 x M10 threaded rigging fittings, 4 x M8 threaded fittings for third-party
    • Finish: Catalyzed polyester two-part paint, black or white
    • Grille: Powder coated steel, black or white finish
    • Weight: 38.4 lbs (17.4 kg)
    • Model Options: V2-1296B (black finish), V2-1296W (white finish)

  • Item Includes:

    • 1x V2-1296W Loudspeaker - Black
    • Please Note: Mounting options sold separately

  • Warranty:

    • 5-year
