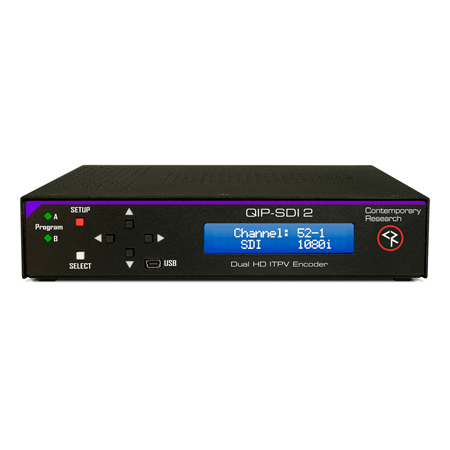

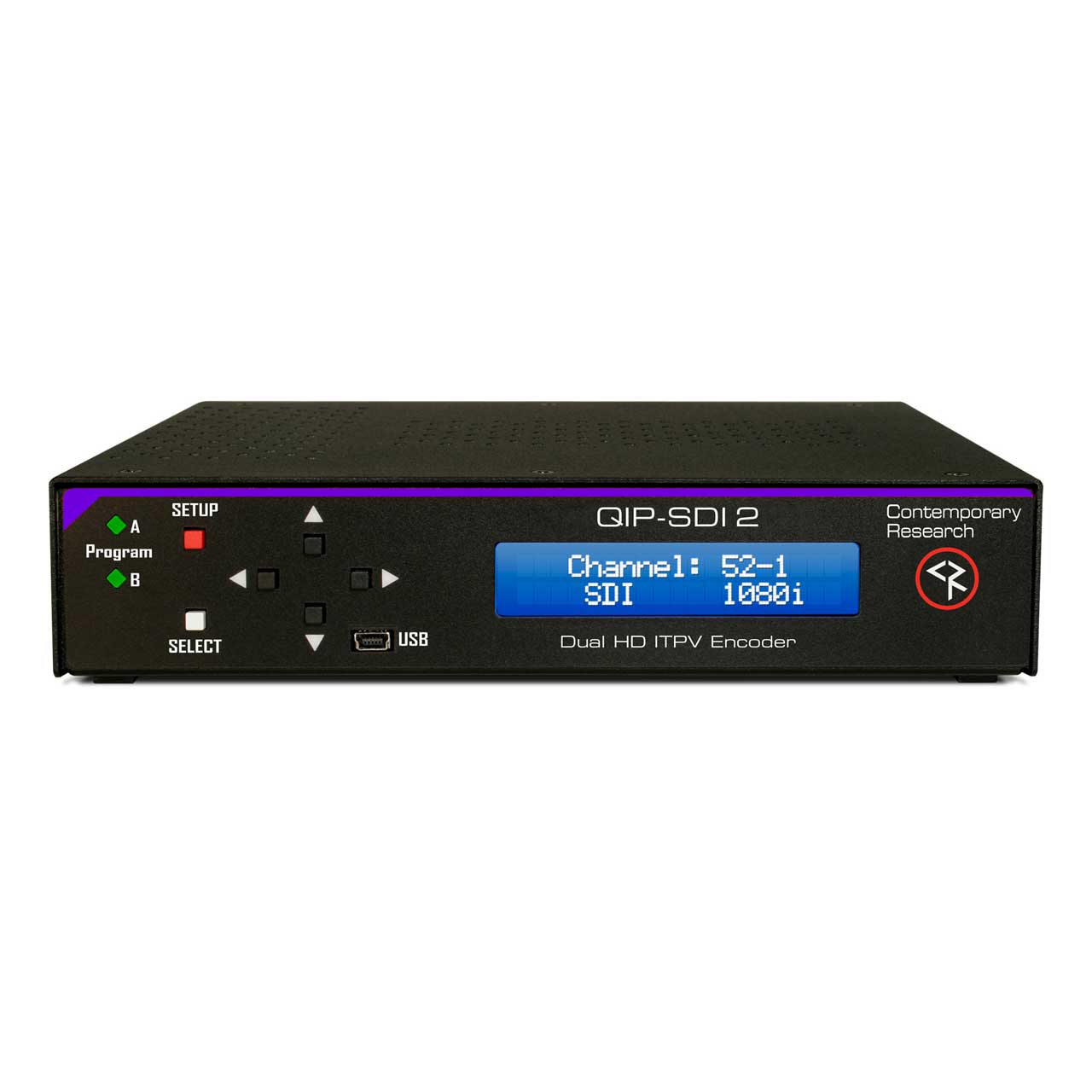

Contemporary Research QIP-SDI 2 IPTV Encoder with H.264 - HD-SDI/Composite/Analog Stereo/SPDIF Inputs

QIP-SDI 2 - Overview

• Features:

  • Sources
  • Two HD-SDI inputs, 3G Level A 1080p and 1080i/720p 59.94/60 Hz HD-SDI, and SD-SDI 480i widescreen/4:3 video; also accepts embedded 608/708 captioning and AES, AAC and AC-3 audio
  • Two Composite/CC video inputs for encoding, captioning, or EAS use
  • Two analog Stereo and two SPDIF coax audio inputs

    Encoding
  • Creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2
  • Converts stereo and PCM to stereo AAC or MP12, passes through or AC-3 and AAC
  • Can create SAP dual-language audio for each program
  • Accepts 608.708 embedded captioning, decodes Line 21 captioning from composite video inputs
  • Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a set resolution
  • Dual-program operation is standard

    Operation
  • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options
  • Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
  • Updates firmware via USB and Ethernet
  • Fan cooled, with adjustable speed
  • Saves power and rack space using efficient design
  • Includes compact switching power supply
  • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19" rack kits
  • Meets RoHS safety and California energy standards


• Specifications:

  • Physical
  • 8.5" [216mm] wide x 1.73" [62mm] height (1RU) x 6.0" [153mm] deep
  • 1.5 lbs [0.68kg]
  • +32° to 122° F operating temperature, convection cooled
  • Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
  • For HRF Half-Racks, use the RK2EZ kit to mount each tuner
  • Fan cooled, with adjustable speed

    Scaling
  • Dual hardware scalers
  • Accepts 1080p - 480i and VGA resolutions, 29.97 - 60 Hz US and PAL refresh rates
  • Edge to edge presentation with zoom, shrink and X/Y axis positioning
  • Auto-sync or sales to fixed output resolution, 1080p scaled to 1080i

    Encoding
  • H.264 or MPEG2 for HD, MP@ML for SD, 1080i, 720p, 480p, and 480i output resolution
  • MPEG 2 Video Encoding bitrate 10-25 Mbps, HD, 5-6 Mps 480i, or variable bitrate
  • H.264 Video Encoding bitrate 5-12 Mbps, HD, 2-3 Mps 480i, or variable bitrate
  • PCM or analog audio output s MPEG1 Layer2 or AAC
  • Pass-through AAC and AC-3 aud

    Front Panel
  • Select and directional buttons for menu setup
  • Menu LCD, Blue with 2 lines of 20 white characters each

    Back Panel
  • Power: 2.1mm coaxial jack (inside center conductor positive)
  • 1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
  • EAS: 3 GPI Pins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
  • Ethernet: RJ-45 GigE Ethernet connector for IP control, updates, Unicast/Multicast IPTV and internal Web page
  • SDI Inputs: Two BNC Female
  • SD-SDI @ 270Mb/s, HD-SDI @ 1.485Gb/s, 3G SDI Level A @ 2.970Gb/s
  • Coax cable auto-equalizer for SD up to 460m, HD up to 230m (RG6)
  • Resolutions 1080p at 59.94Hz, 1080i/720p at 59.94/60Hz, or SD 480i at 29.97Hz
  • Video Format YCbCr 4:2:2
  • Accepts SDI embedded Stereo/AC-3/AAC 48KHz audio
  • Widescreen option for 480i
  • Composite Video/CC Inputs: RCA female (480i), 29.97 Hz, supplies line 21 Captioning
  • Audio Inputs: Two coax SPDIF digital audio inputs
  • Analog L and R: 2 stereo mini jacks
  • Inputs assignable to video inputs


• Item Includes:

  • QIP-SDI 2 unit
  • PS12-2 Switching power supply, 2A 12 VDC, standard AC cord for power strips
    • *Free option to include PS12-8Y power supply with every 3-4 encoders when ordered in leiu of PS12-2
