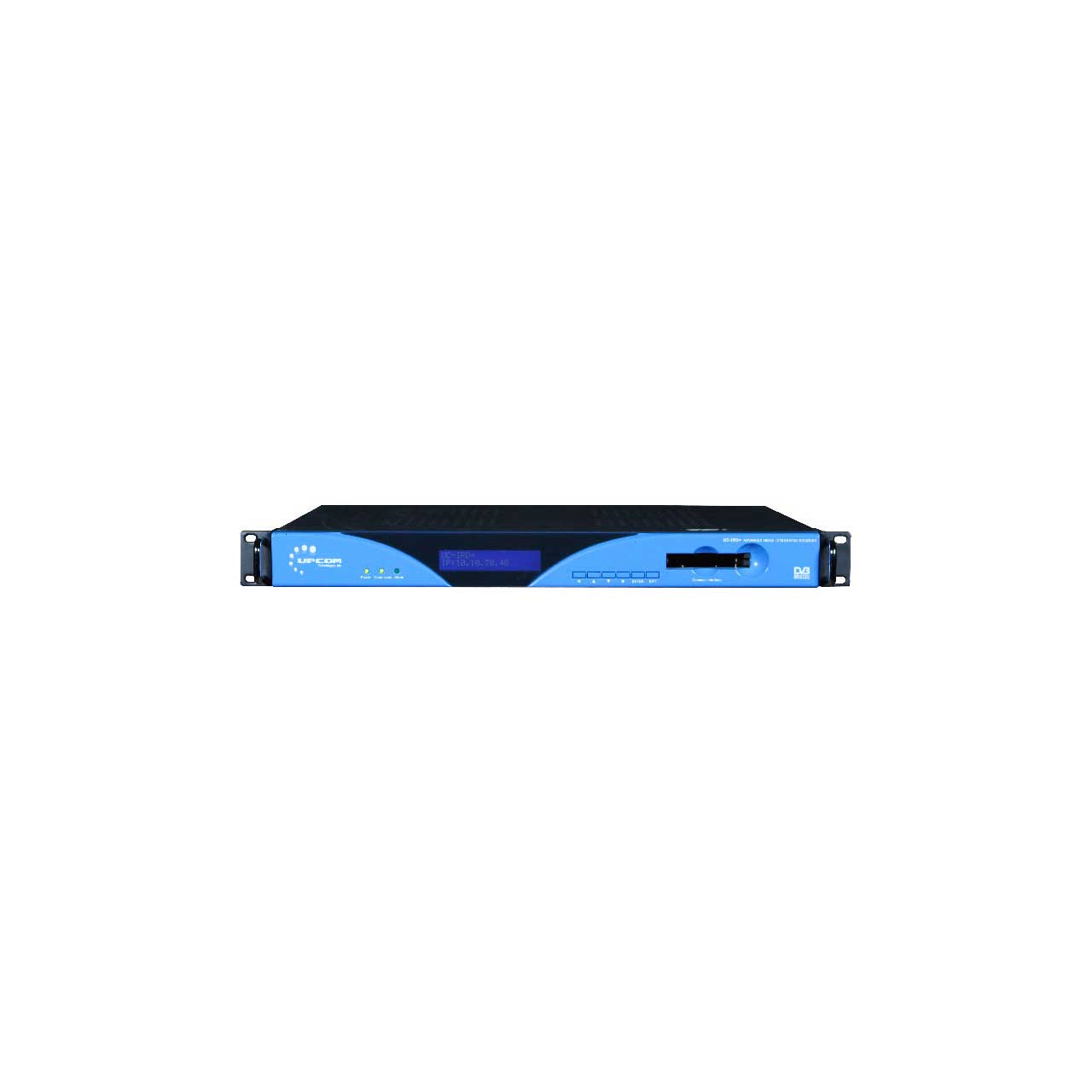

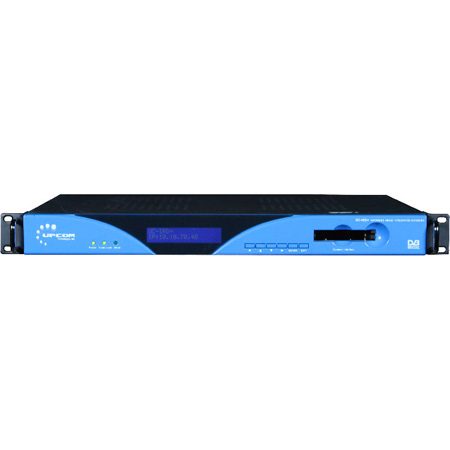

Upcom Technologies UC-IRD Receiver Decoder

UC-IRD - Overview

• Features:

  • DVB-S/S2 and IP Receiver
  • MPEG-2/4AVC SD/HD Decoder
  • BISS Descrambler
  • 2 CI Slots
  • Compatible with: Conax, Cryptoworks, Irdeto,
  • NDS, Mediaguard, SECA, Viaccess and more
  • Teletext VBI, EBU and DVB subtitle
  • Multiple inputs: DVB-S/S2, TS/IP and ASI.
  • Redundant inputs among Tuner, ASI and TS/IP inputs.
  • SD/HD MPEG-2 and MPEG-4/H.264 digital video decoding.
  • Dual Audio PIDs decode or pass through.

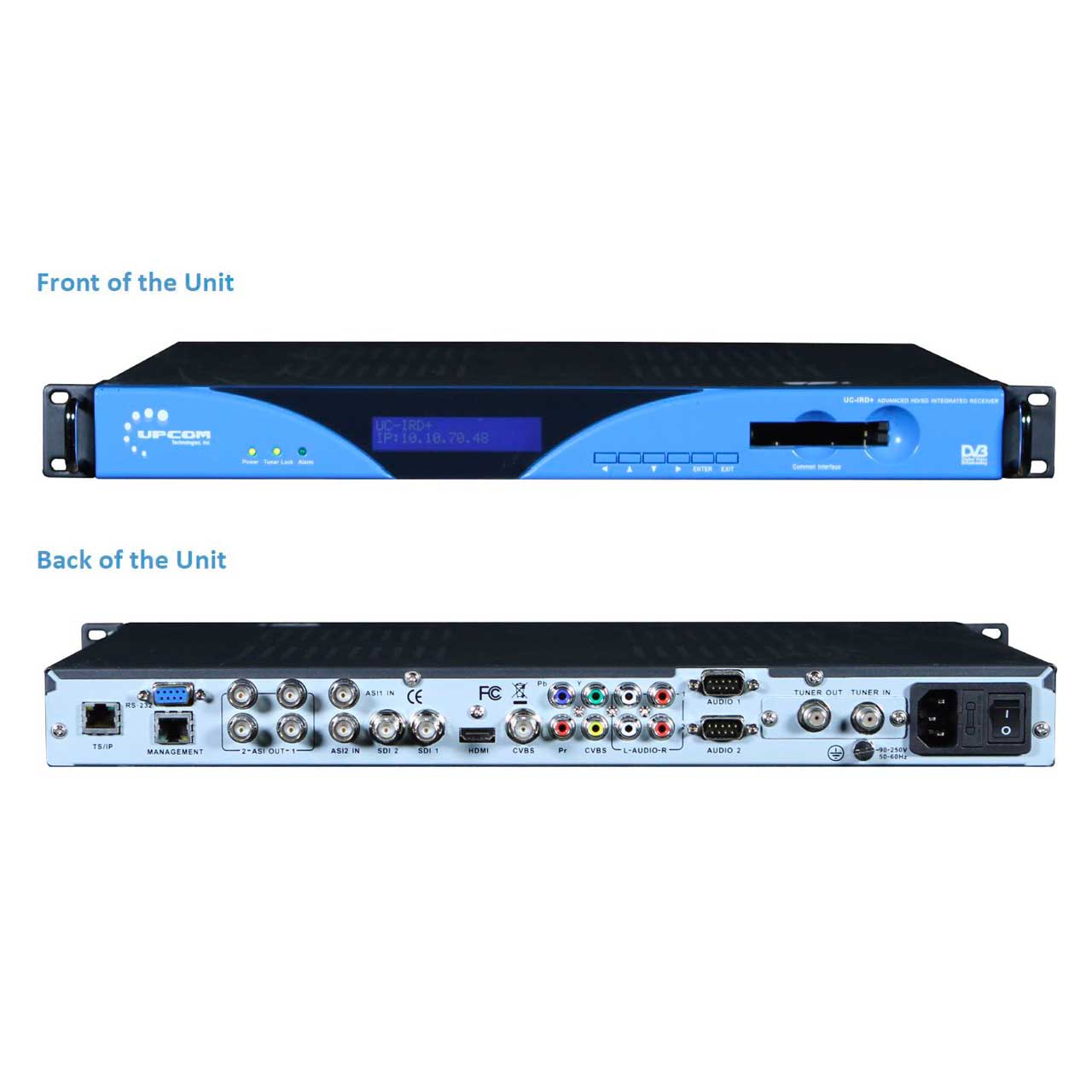

  • Multiple Analog and Digital Outputs: ASI, CVBS, YPbPr, HDMI, SD/HD-SDI, AES/EBU Audio, TS/IP.
  • Flexible re-multiplexing among 2xASI, Tuner and TS/IP Inputs.
  • 2x DVB-CI Slots, Multi Programs, BISS-1 and BISS-E decryption.
  • Dynamic PMT detection and automatic updating.
  • Support VBI TELETEXT, EBU/DVB Subtitle, and Closed Captioning.
  • UDP/RTP, Unicast/Multicast, and SPTS/MPTS over IP (full duplex).
  • Remote Control and Supervision by SNMP and HTTP WEB Interface.
  • Compressed audio pass-through in SDI output.
  • PCM audio embedded in SDI and HDMI outputs.
  • PCM audio output on two AES/EBU audio output ports.
  • Remote software update through IP.
  • RSSI, received Eb/No & BER monitoring.


• Specifications:

  • RF Input:
  • RF: DVB-S/S2, QPSK/8PSK
  • ASI
  • IP STREAMING
  • Decoding:
  • MPEG-2
  • MPEG-4
  • HD/SD
  • BISS
  • Digital Video Output:
  • HD-SDI
  • SDI
  • HDMIv
  • IP STREAMING
  • ASI
  • Analog Video Output:
  • Composite
  • Component
  • Altitude:
  • Front Panel or Remote Control Up to 10,000ft
  • Temperature:
  • Operating Temperature: 0§ to +45§C
  • Storage Temperature: -25§ to +55§C
  • Humidity:
  • 10 to 75%
  • Shock and Vibration:
  • Equal to mobile van or stationary rack.
  • AC Power:
  • 90VAC to 250VAC
  • 50/60Hz
  • 50W
  • Dimensions:
  • 17"W 1.75"H 13.5"D @ 7.5lbs
