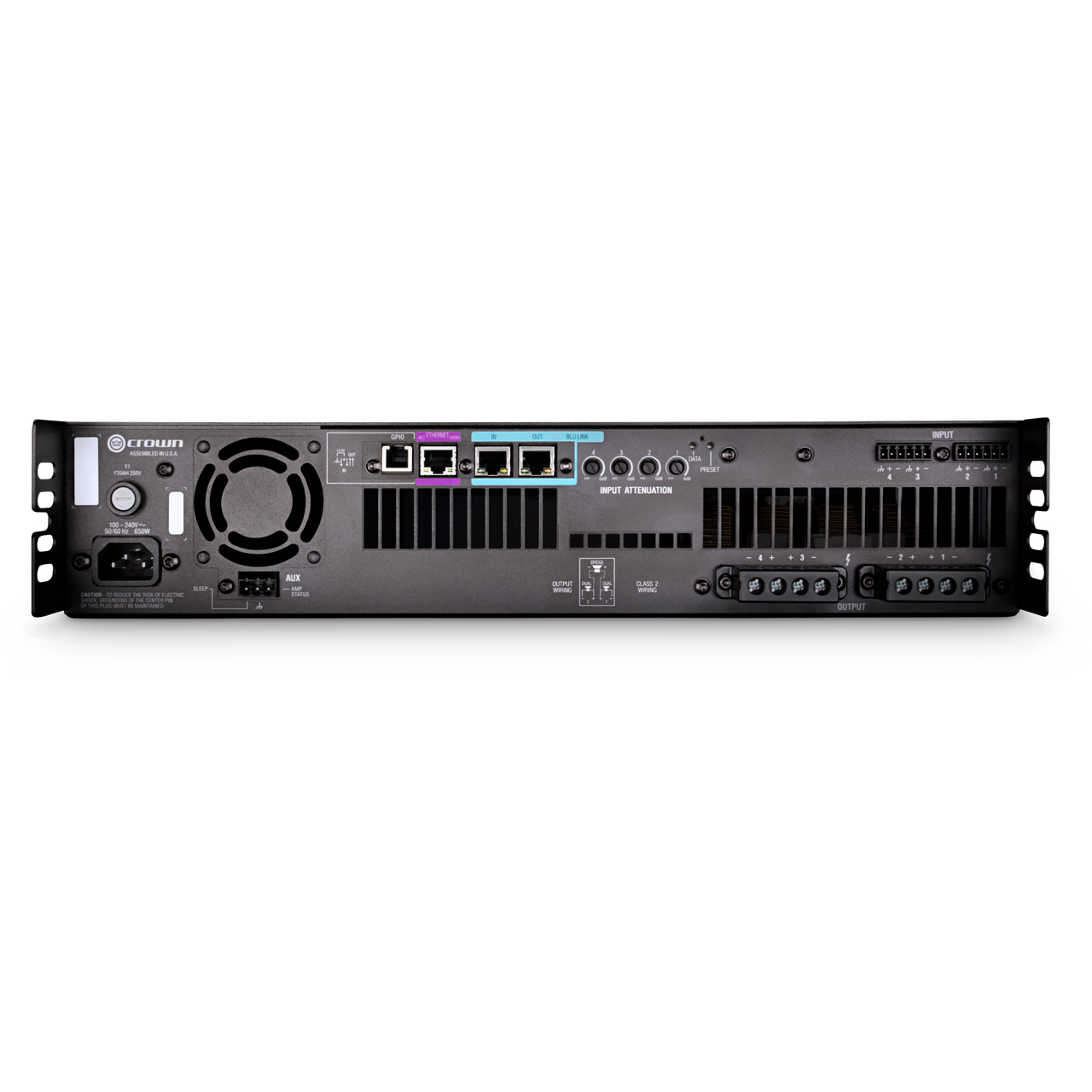

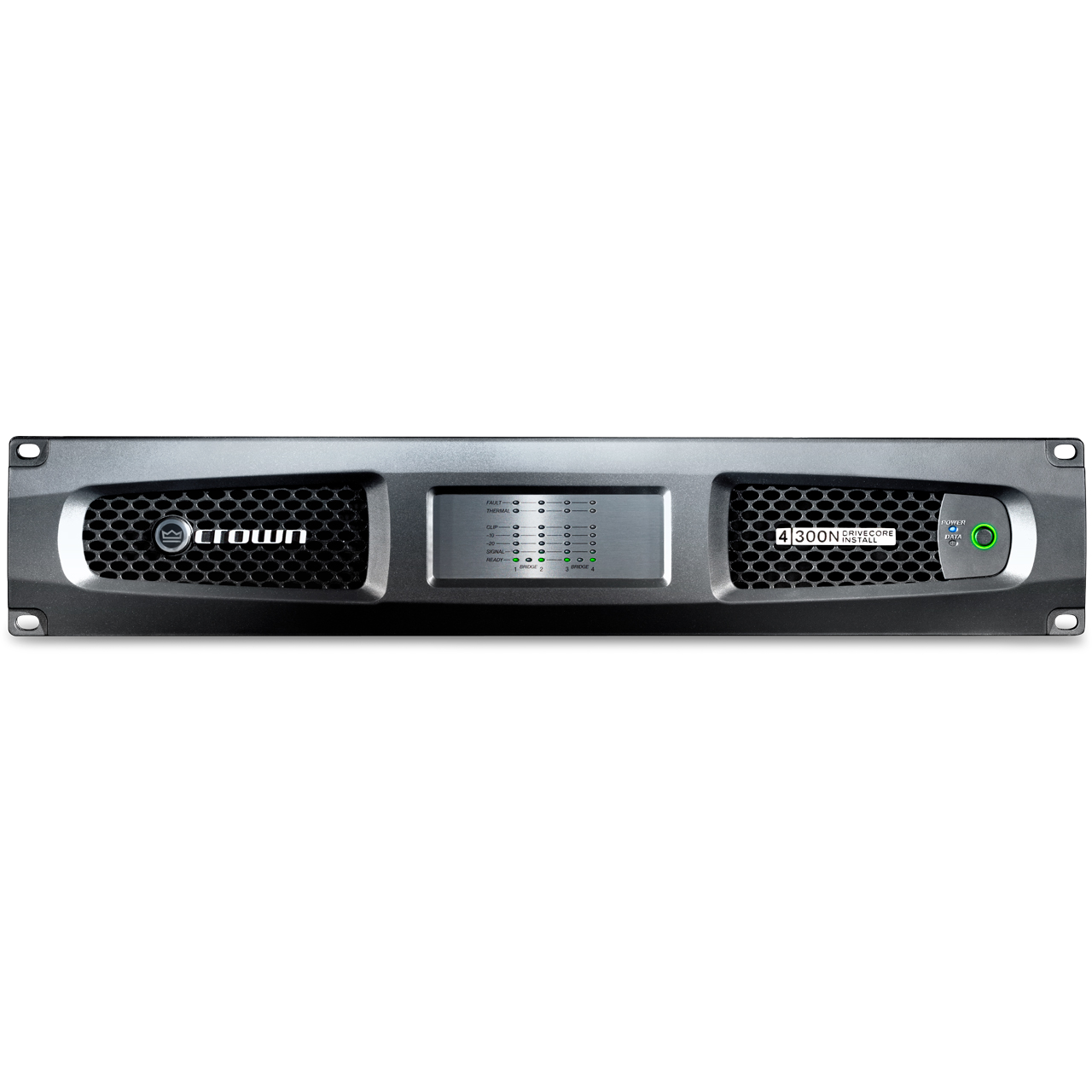

Crown DCI-4/300N 300W 4-Channel DriveCore Install Network Series Power Amplifier with BLU Link

ITEM #: CROWN-DCI4300N MFG #: DCI4300N

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Crown International
Free Shipping with $49 Minimum Order

Our Price:

$3,650.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

DCI4300N - Overview

The DriveCore Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry's highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology. This amplifier is EN 54-16 Compliant for life safety applications.

  • Features:

    • Analog and Digital Inputs
    • Network Monitoring and Control
    • Programmable General Purpose Input/Output Ports
    • Digital Signal Processing:
      - LevelMAX Limiters
      - Input/Output EQ
      - Crossover
      - Delay
      - Matrix Mixer
      - Speaker Line Monitoring
    • EN 54-16 Compliant for Life Safety Applications
    • Monitoring and Control over TCP/IP
    • Power Saving Modes
    • Remote Power Off


  • Specifications:

    • Output Channels: 4
    • Frequency Response (8Ω, 20Hz - 20kHz): 0.25dB
    • Voltage Gain (At Max Level Setting): 34dB
    • BLU Link Input Signal to Noise Ratio (A-Weighted): >108dB
    • Total Harmonic Distortion (at full rated power, 20Hz - 20kHz): 0.35%
    • Damping Factor (20Hz to 100Hz): >1000
    • Load Impedance (Stereo/Dual Mode): 2Ω - 16Ω; 70Vrms and 100Vrms
    • Load Impedance Bridge Mono: 4Ω - 16Ω; 140Vrms and 200Vrms
    • Cooling: Continuously variable speed forced air, front to back airflow
    • Maximum Fan Noise (re dBA SPL @ 1M): 45
    • Required AC Mains (±10%): 100V-240V ~ 50/60Hz
    • Power Connector: 15A IEC
    • Dimensions (WxHxD): 19 x 3.5 x 14.25 in (483 x 89 x 362 mm)
    • Weight: 20.1 lbs (9.12 kg)


  • Item Includes:

    • 1x DCI 4|300N Audio Power Amplifier
    • 1x AC Power Cord


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    0691991009037
