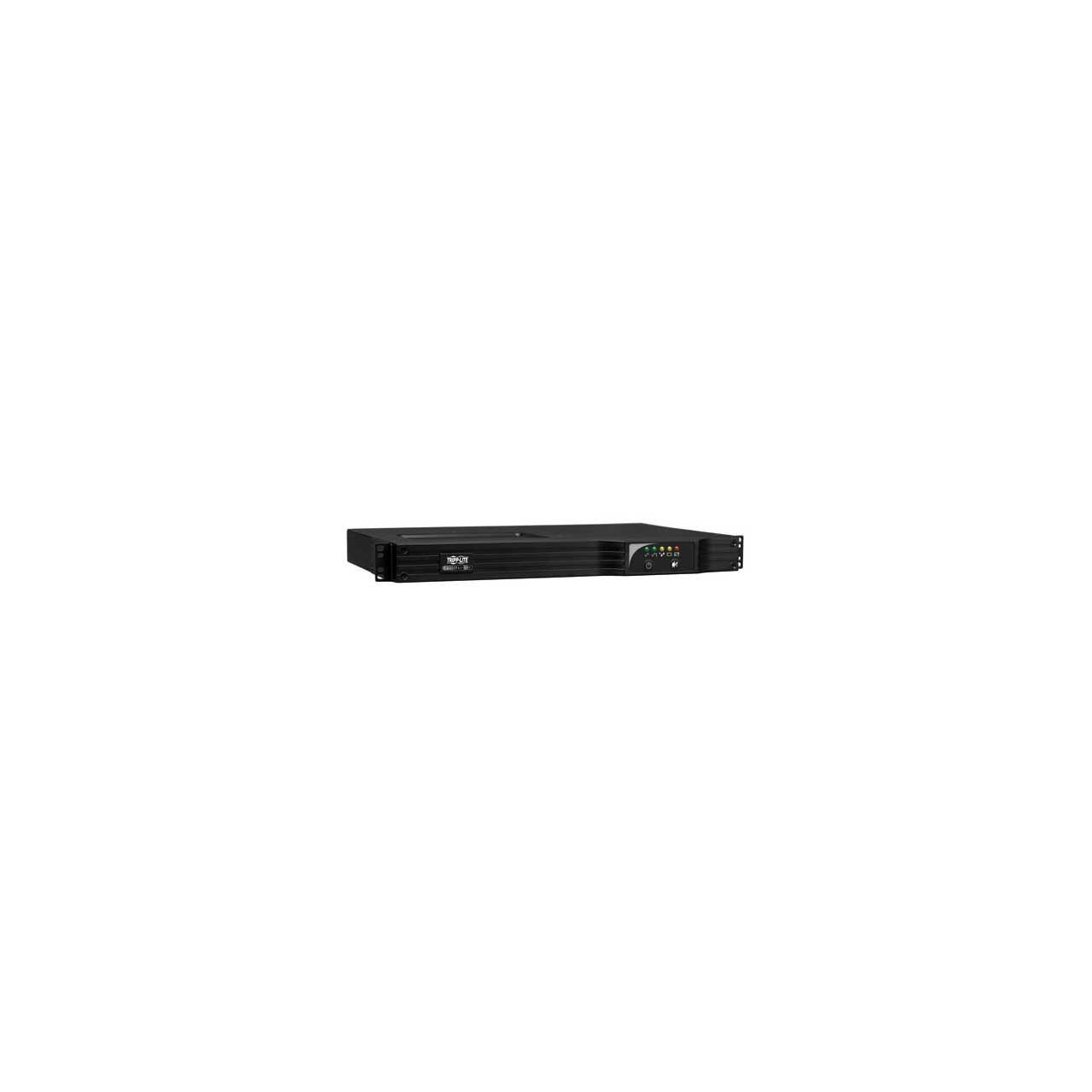

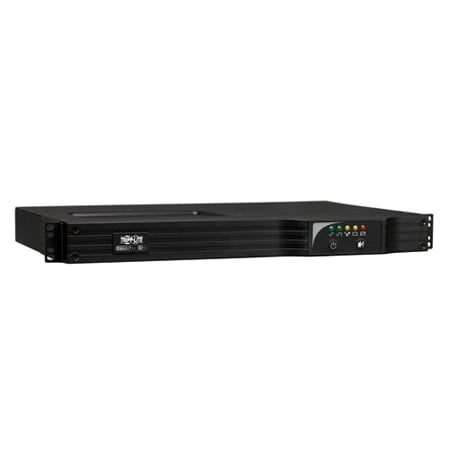

Tripplite SMART1000RM1U SmartPro 1000VA 6 outlet NET UPS System

SMART1000RM1U - Overview

• Features:

  • Tripp Lite SMART1000RM1U 1kVA / 1000VA / 800 watt line interactive UPS
  • 1U rack/tower compatible form factor
  • Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support
  • NEMA 5-15P input; 6 5-15R output receptacles
  • Installed depth of only 16.75 in. / 42.5cm
  • Sine wave output in both AC and battery backup modes
  • Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
  • Full load efficiency rating of 99% saves energy and ensures cool operating temperatures
  • Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
  • PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted
  • Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
  • Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces
  • HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
  • Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
  • 3 stage metered LEDs offer current monitoring and battery charge level
  • Mains power and voltage regulation LEDs offer at-a-glance power status information
  • Front panel switches support self-test and alarm cancel functions
  • Field replaceable, hot-swappable internal UPS batteries


• Specifications:

  • OUTPUT
  • Output Volt Amp Capacity (VA): 1000
  • Output kVA capacity (kVA): 1
  • Output Watt Capacity (watts): 800
  • Output power factor: 0.8
  • Nominal Output Voltage(s) Supported: 120V
  • Frequency compatibility: 60 Hz
  • Output voltage regulation (line mode): -21%, +8%
  • Output voltage regulation (Battery mode): +/- 5%
  • Built-in UPS output receptacles: 6 5-15R outlet(s)
  • Built-in controllable switched load banks: Two switchable single-outlet 5-15R load banks
  • Output AC waveform (AC mode): Sine wave
  • Output AC waveform (battery mode): Pure Sine wave


  • INPUT
  • Rated input current (at maximum load): 9.2A
  • Nominal Input Voltage(s) Supported: 120V AC
  • UPS input connection type: 5-15P
  • Input circuit breaker: 15A
  • Recommended Electrical Service: 15A 120V
  • Input cord length (ft.): 10
  • Input cord length (m): 3
  • Phase: Single-Phase


• Item Includes:

  • SMART 1000RM1U UPS System
  • Mounting hardware
  • Cabling for USB & DB9 monitoring and EPO switching
  • PowerAlert unattended shutdown and UPS/Power monitoring software
  • Instruction manual


• GTIN:

  0037332118820
