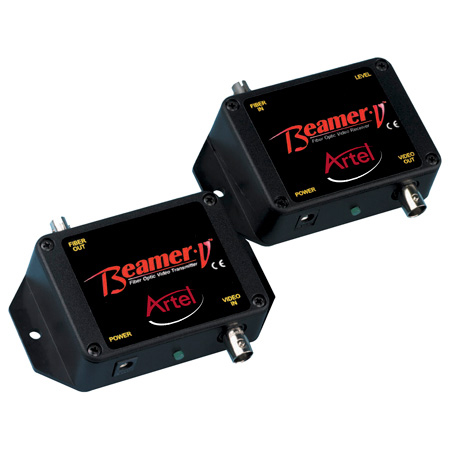

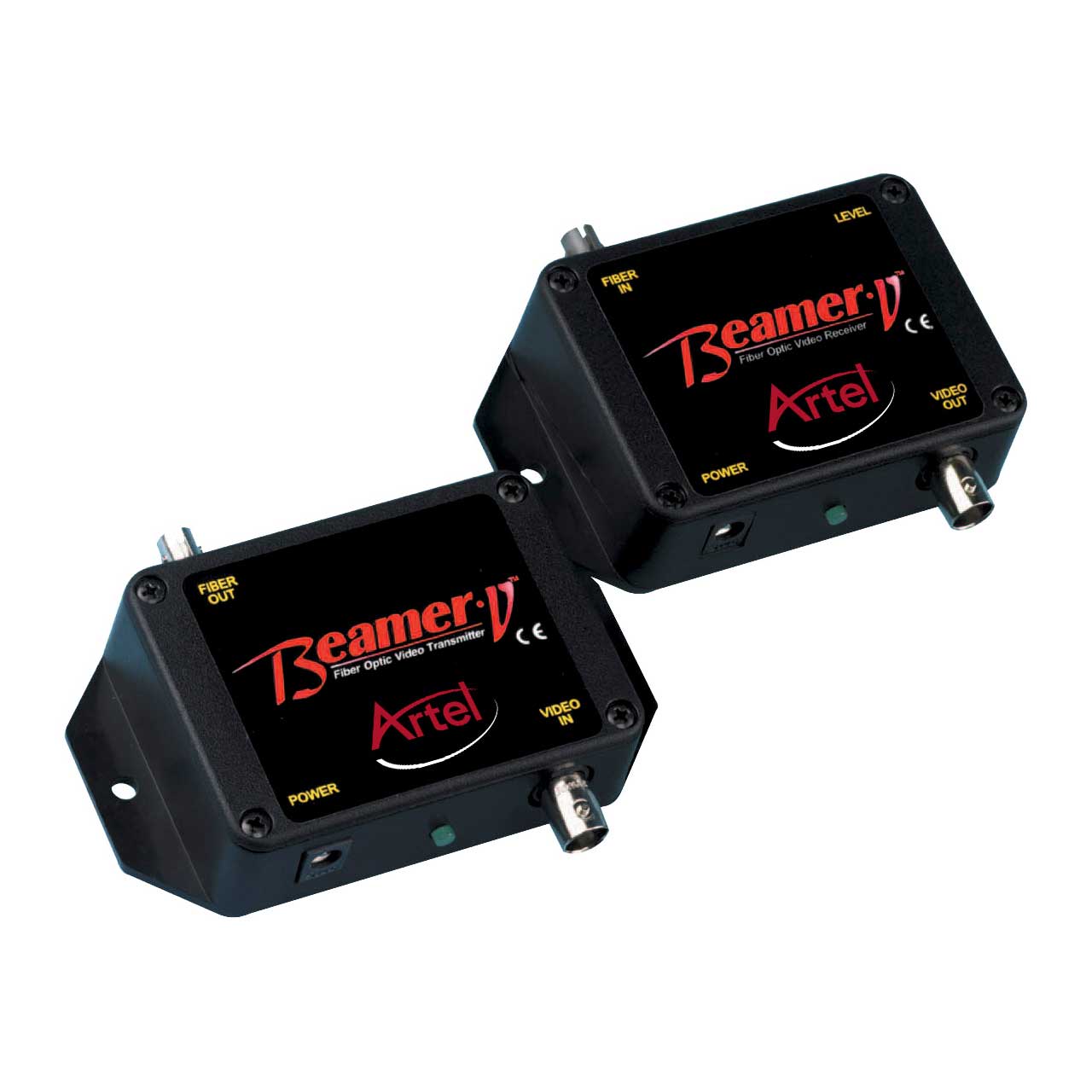

Artel FiberLink 3105 Composite Video Kit with 3100 Tx & 3101 Rx - ST Connector - MM - 2 Power Supplies

BEAMER-V 3105 - Overview

• Features:

  • Transmits up to three kilometers over multimode fiber at 850 nm
  • May be purchased as a complete, low cost system including transmitter, receiver and two power supplies
  • Card version supports dual video channels
  • Card version fills one slot in 6000A card cage
  • Fiber is immune to the effects of electrical interference, ground loops, explosive and hazardous environments, moisture and high voltage


• Specifications:

  • Number of Channels 1
  • Number of Outputs per Channel Box: 1
  • Bandwidth 8 MHz
  • Input/Output Impedance 75 Ohms
  • Signal-to-Noise Ratio (per RS-250) 52 dB minimum
  • Differential Gain (per RS-250) 2% typical
  • Differential Phase (per RS-250) 1o typical
  • Input/Output Voltage 1 volt p-p (user adjustable at receiver)
  • Number of Fibers Box: 1
  • Operating Temperature -35 to +75° C
  • Relative Humidity 10 to 90%, non-condesnsing
  • Operating Power (per unit) 9-12 V +10% DC @ 100 ma max.
  • Dimensions 3.25 L x 2.38 W x 1 H (inches)
  • 83 L x 60 W x 25.4 (mm)
  • Weight 3.0 oz. (85.04 grams)
  • Optical Connectors ST
  • Optical Wavelength 850 nm
  • Optical Fiber 62.5 micron multimode fiber
