Artel Fiberlink 3112 Internal Battery/DC Powered 3G/HD/SD-SDI over One Fiber - SM and MM - ST Connectors - Transmitter

ITEM #: CSI-3112 MFG #: 3112

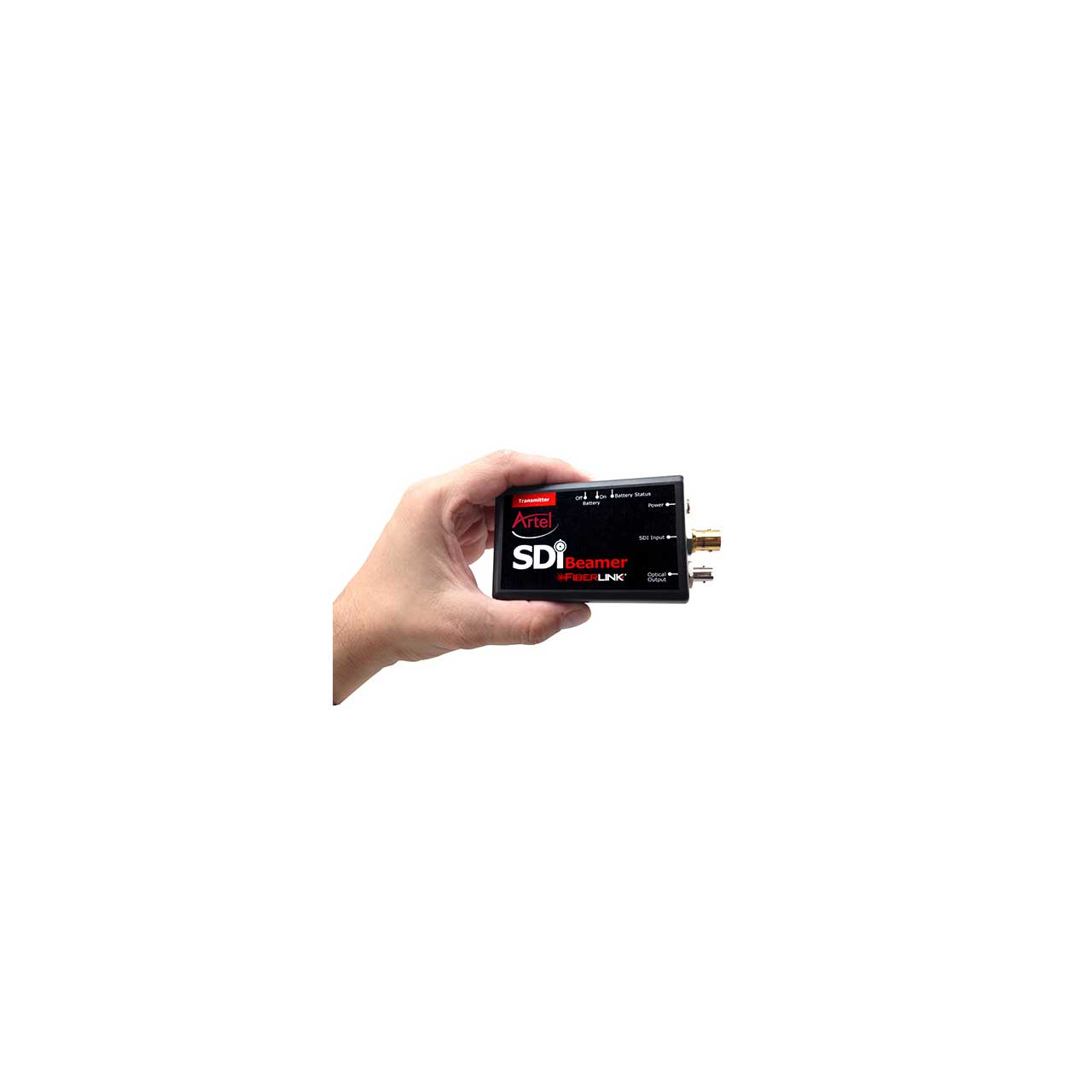

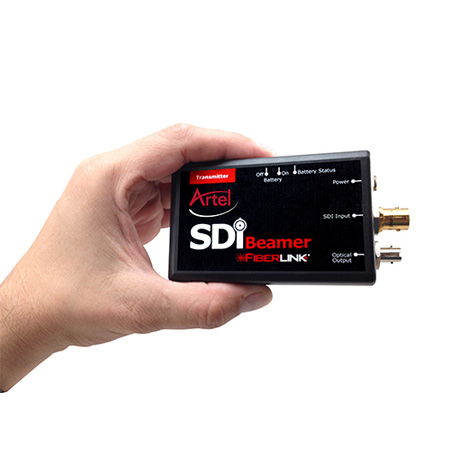

Primary Image
Artel
Free Shipping with $49 Minimum Order

List Price:

$599.50

Our Price:

$518.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

3112 - Overview

Introducing the world's first battery operated 3G/HD/SD-SDI fiber optic transmission system with a small footprint and internal battery power making it ideal for in-the-field broadcasting!

The SDI Beamer Series is used to transmit 3G/HD/SD-SDI with or without embedded audio and data over a single fiber optic core. The FiberLink SDI Beamer Series is compatible with single mode or multimode fiber. The SDI Beamer is also compliant with SMPTE 297-2006 for seamless interoperability with other SMPTE 297-2006 devices. The system delivers noise-free transmission that retains all of the signals' initial parameters, regardless of fiber optic cable attenuation. The SDI Beamer Series also provides immunity to video pathological signals over the entire link budget and operating temperature range.

Please Note: Transmitter only! Receiver sold separately! Sold as a full Tx/Rx kit under part# CSI-SDI-BEAMER

  • Features:

    • Equalized transmitter input and re-clocked receiver output
    • Supports 3G/HD/SD-SDI and DVB-ASI transmission
    • SMPTE compliant electrical and optical inputs and outputs insures interoperability
    • 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
    • Support both multimode and single mode fibers
    • Immunity to pathological patterns
    • Exclusive Artel optical circuit design for unmatched performance
    • Wide range optical link budget
    • Industry preferred ST optical connector with chain-attached ST dust cap
    • Wide power supply options: internal 9 volt battery, external DC power, AC adapter
    • Locking ring power connector
    • Long 5 hour battery life
    • Glitch-less battery backup when using external power source and internal 9 volt battery
    • Compatible with all other Artel SDI FiberLink
    • HDTV Resolutions to 1080p - This product supports HDTV resolutions of 480p, 720p and 1080p.
    • Supports Single Mode and Multimode Fiber in the same unit with no special ordering, configuration or tweaks.


  • Specifications:

    • Optical Output
    • CONNECTOR: ST, with chain-attached dust cap
    • EMITTER TYPE: FP Laser
    • OUTPUT POWER: -8 dBm Min (Single Mode) -3 dBm Min (Multimode 50u/62.5u)
    • WAVELENGTH: 1310nm (nominal)
      Serial Video BNC Input
    • DATA RATE RANGE: 19.4 Mbps to 2.97 Gbps
    • EQUALIZATION: Automatic up to 100m of Belden 1694A at 3.0 Gbps, 200m at 1.485 Gbps and 350m at 270 Mbps
    • NUMBER OF INPUTS: 1
    • RE-CLOCKED DATA RATES: 270 Mbps (SMPTE 259M, DVB-ASI-270), 1.485 Gbps (SMPTE 292), 2.97 Gbps (SMPTE 424M-2006)
    • RETURN LOSS: >10dB up to 2.97 Gbps
    • SUPPORTED STANDARDS: SMPTE 259M, 292, 297-2006, 424M-2006, 305M, 310M, 344M, DVB-ASI


  • Item Includes:

    • 1x FiberLink SDI Beamer Transmitter
    • 1x User Manual
