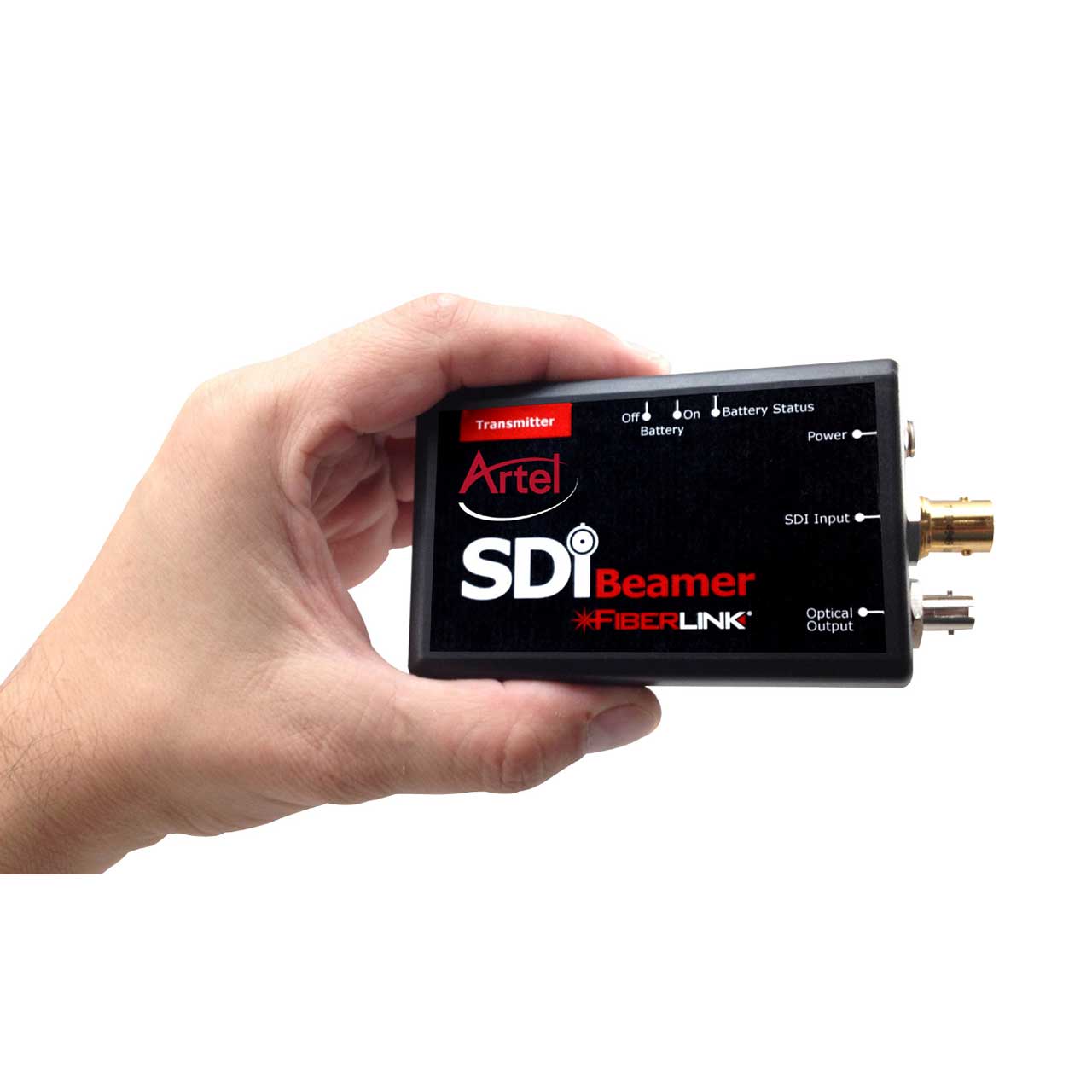

Artel Fiberlink 3113 Internal Battery/DC Powered 3G/HD/SD-SDI over One Fiber - SM and MM - ST Connectors - Receiver

3113 - Overview

• Features:

  • Equalized transmitter input and re-clocked receiver output
  • Supports 3G/HD/SD-SDI and DVB-ASI transmission
  • SMPTE compliant electrical and optical inputs and outputs insures interoperability
  • Support both multimode and single mode fibers• Immunity to pathological patterns
  • Exclusive Artel optical circuit design for unmatched performance
  • Wide range optical link budget
  • Industry preferred ST optical connector with chain-attached ST dust cap
  • Wide power supply options: internal 9 volt battery, external DC power, AC adapter
  • Locking ring power connector
  • Long 5 hour battery life
  • Glitch-less battery backup when using external power source and internal 9 volt battery
  • Compatible with all other Artel FiberLink SDI products
  • 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates.


• Specifications:

  • SERIAL VIDEO BNC INPUT
  • ALIGNMENT JITTER: < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal
  • DC OFFSET: 0V ± 0.5V
  • NUMBER OF OUTPUTS: 1
  • OVERSHOOT: < 10% of amplitude
  • RECLOCKING: At 270 Mbps, 1.485 Gbps & 2.97 Gbps
  • RISE/FALL TIME: < 135 ps at 2.97 Gbps per SMPTE 424M-2006; < 270 ps at 1.485 Gbps per SMPTE 292; 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
  • SIGNAL LEVEL: 800mV ± 10%
  • TIMING JITTER: < 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal
    FIBER OPTIC INPUT
  • CONNECTOR: ST, with chain-attached dust cap
  • MAXIMUM INPUT POWER: 0 dBm
  • MINIMUM INPUT SENSITIVITY: -18 dBm at 2.97 Gbps; -20 dBm at 1.485 Gbps -20 dBm at 270 Mbps;
  • WAVELENGTH: 1100 - 1620 nm
    GENERAL SPECIFICATIONS
  • APPROXIMATE INTERNAL BATTERY LIFE: 3 hours, 30 minutes with Lithium battery 1 hour, 50 minutes with Advanced Alakaline battery 1 hour, 30 minutes with Alakaline battery
  • DIMENSIONS: 2.4 x 4.47 x 1.06 (in) (60.96 x 113.53 x 26.92 (mm))
  • INDICATOR: Power/Battery
  • MTBF: 175,000 Hours
  • OPERATING TEMPERATURE -10° C to +50° C
  • POWER: External 9-24 volts DC or user supplied internal 9 volt battery. Internal battery can be used for glitch-free backup to external power source or battery only operation.
  • POWER CONNECTOR: Coaxial type with locking threads; 5.5mm O.D., 2.1mm I.D.
  • POWER DISIPATION: Transmitter: 1.20 Watts, 4.09 BTU/hr Receiver: 1.20 Watts, 4.09 BTU/hr
  • SWITCH: Internal Battery On/Off
  • WEIGHT: 4.23 oz. with batt., 2.60 oz without batt.


• Item Includes:

  • 1x FiberLink SDI Beamer Receiver
  •
    1x User Manual


• Warranty:

  • 3 Years
