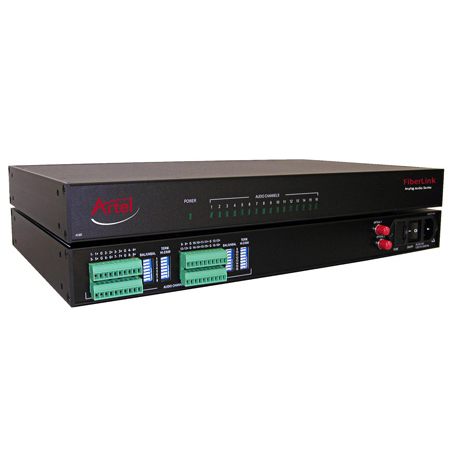

Artel FiberLink 4160-SN10-NA 850nm Multimode 16 Channel Analog Audio Single Output with ST Connectors - Transmitter

4160-SN10-NA - Overview

• Features:

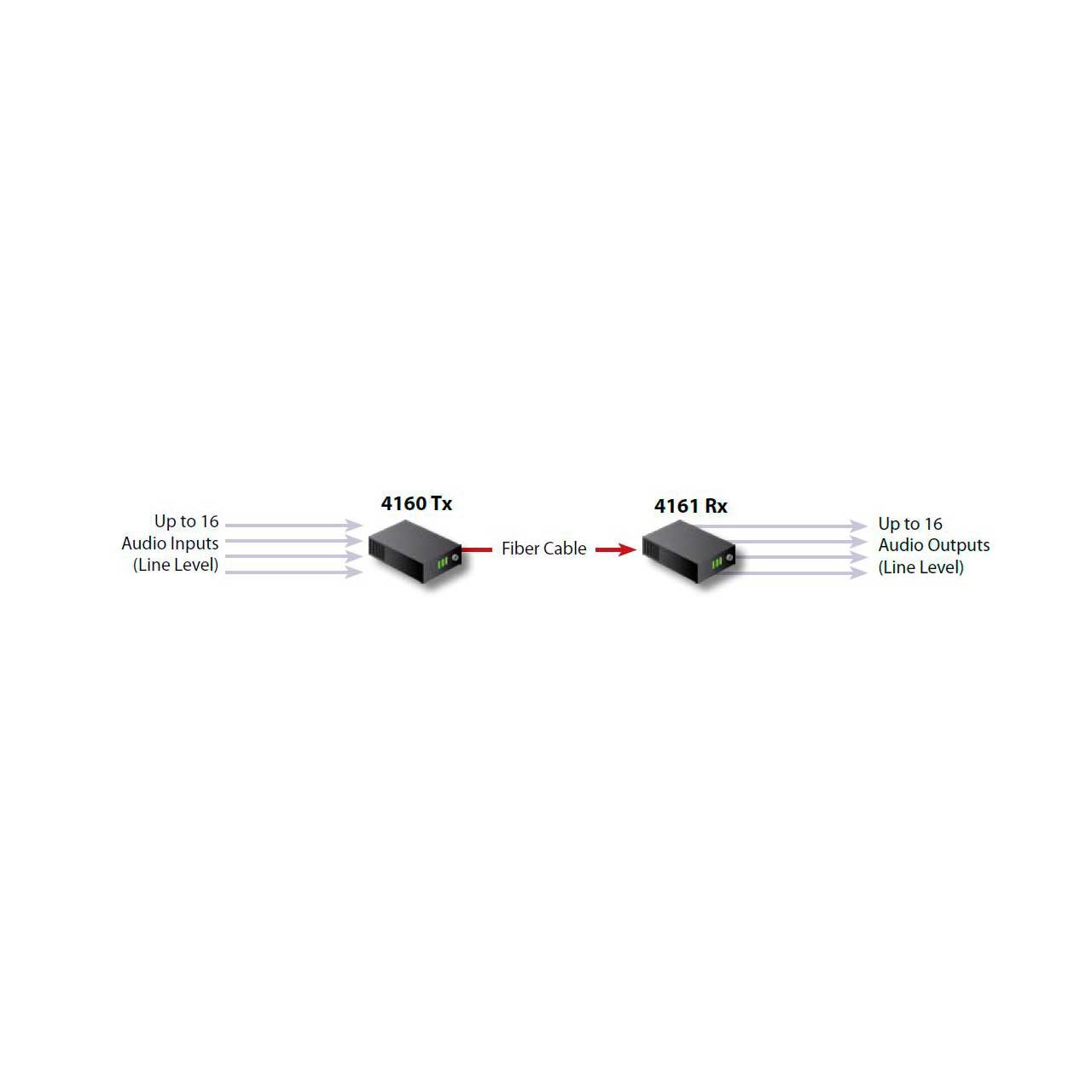

  • System consists of transmitter and receiver unit (sold separately)
  • No adjustments; pure digital processing and transmission
  • Optional redundant optical input/output 24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response
  • Line level, balanced or unbalanced audio operation
  • Indicator LEDs monitor audio signals and power
  • Wide range internal power supply
  • Unit stands 1 RU high
  • Rackmount ears are included


• Specifications:

  • Number of Audio Channels: 16, balanced or unbalanced
  • Frequency Response: 20 Hz - 20 kHz, +0/-0.5 dB
  • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
  • Maximum Audio Level: +24 dBu
  • SNR (A-Weighted): 95 dB
  • THD+N: 0.002%; 20 Hz - 20 kHz
  • Channel Phase Differential: 0.1o
  • System Latency: 200 uS + fiber cable propagation delay (typically 5 uS/km of fiber)
  • Input Impedance: 600 Ohms terminated; 24 k Ohms unterminated
  • Output Impedance: 50 Ohms
  • Audio Connectors: Removeable screw terminal
  • Switches: Dip switches to select input termination, balanced or unbalanced input/output. Selectable on a per-channel basis


  • LED Indicators Power; Audio Present (per channel)
  • Power Requirements* 95-250 volts AC, 47-63 Hz
  • Operating Temperature Range -35o to +55o C
  • Relative Humidity 10%-90% (non-condensing)
  • Optical Connectors ST or FCPC
  • Operating Wavelength 850, 1310 or 1550 nm
  • Physical Size 1.75 H x 16.75 W x 10 D (inches)
  • 44 H x 425 W x 254 D (mm)
  • Unit stands 1 RU high
  • Weight Approximately 5 lbs.; 2.25 kg
