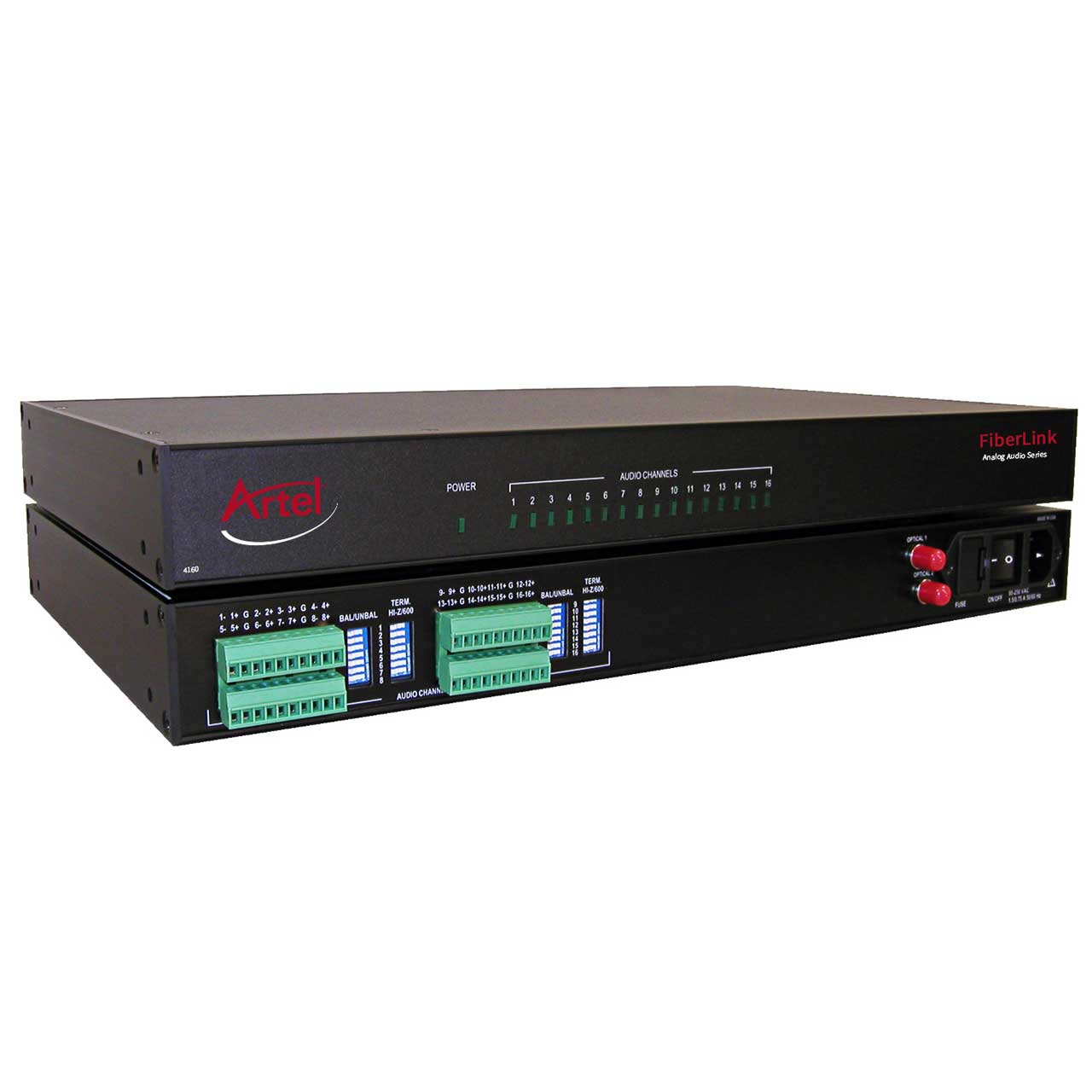

Artel FiberLink 4161-SN70-NA 16ch Audio Rx - 1310nm SM - Single Input -ST Connector

4161-SN70-NA - Overview

• Features:

  • Transmits over one multimode or single mode fiber at 850, 1310 or 1550 nm
  • Optional redundant optical input/output

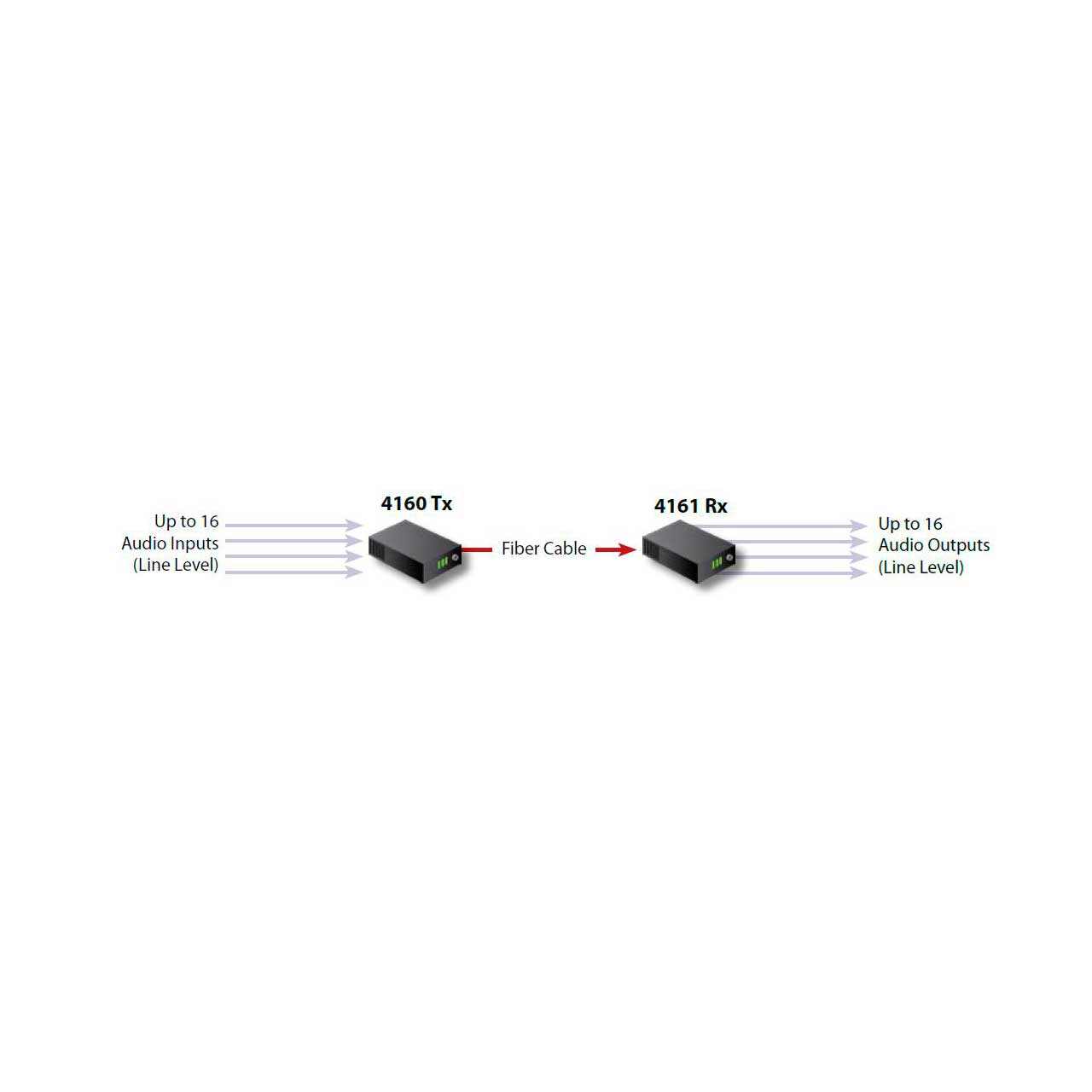

  • System consists of transmitter and receiver unit
  • No adjustments; pure digital processing and transmission
  • 24 bit/96 kHz sampling; maximum audio level +24 dBu
  • 20 Hz to 20 kHz frequency response
  • Line level, balanced or unbalanced audio operation
  • Indicator LEDs monitor audio signals and power
  • Wide range internal power supply
  • Unit stands 1 RU high.
  • Rackmount ears are included


• Specifications:

  • Audio:
  • Number of Audio Channels 16, balanced or unbalanced
  • Frequency Response 20 Hz - 20 kHz, +0/-0.5 dB
  • Bits-per-Sample/Sampling Rate 24 bits; 96 kHz
  • Maximum Audio Level +24 dBu
  • SNR (A-Weighted) 95 dB
  • THD+N 0.002%; 20 Hz - 20 kHz
  • Channel Phase Differential 0.1°
  • System Latency 200 uS + fiber cable propagation
  • delay (typically 5 uS/km of fiber)
  • Input Impedance 600 Ohms terminated;
  • 24 k Ohms unterminated
  • Output Impedance 50 Ohms
  • Audio Connectors Removeable screw terminal
  • Switches Dip switches to select input
  • termination, balanced or
  • unbalanced input/output.
  • Selectable on a per-channel basis


  • General:
  • LED Indicators Power; Audio Present (per channel)
  • Power Requirements* 95-250 volts AC, 47-63 Hz
  • Operating Temperature Range -35o to +55o C
  • Relative Humidity 10%-90% (non-condensing)
  • Optical Connectors ST or FCPC
  • Operating Wavelength 850, 1310 or 1550 nm
  • Physical Size 1.75 H x 16.75 W x 10 D (inches)
  • 44 H x 425 W x 254 D (mm)
  • Unit stands 1 RU high
  • Weight Approximately 5 lbs.; 2.25 kg
