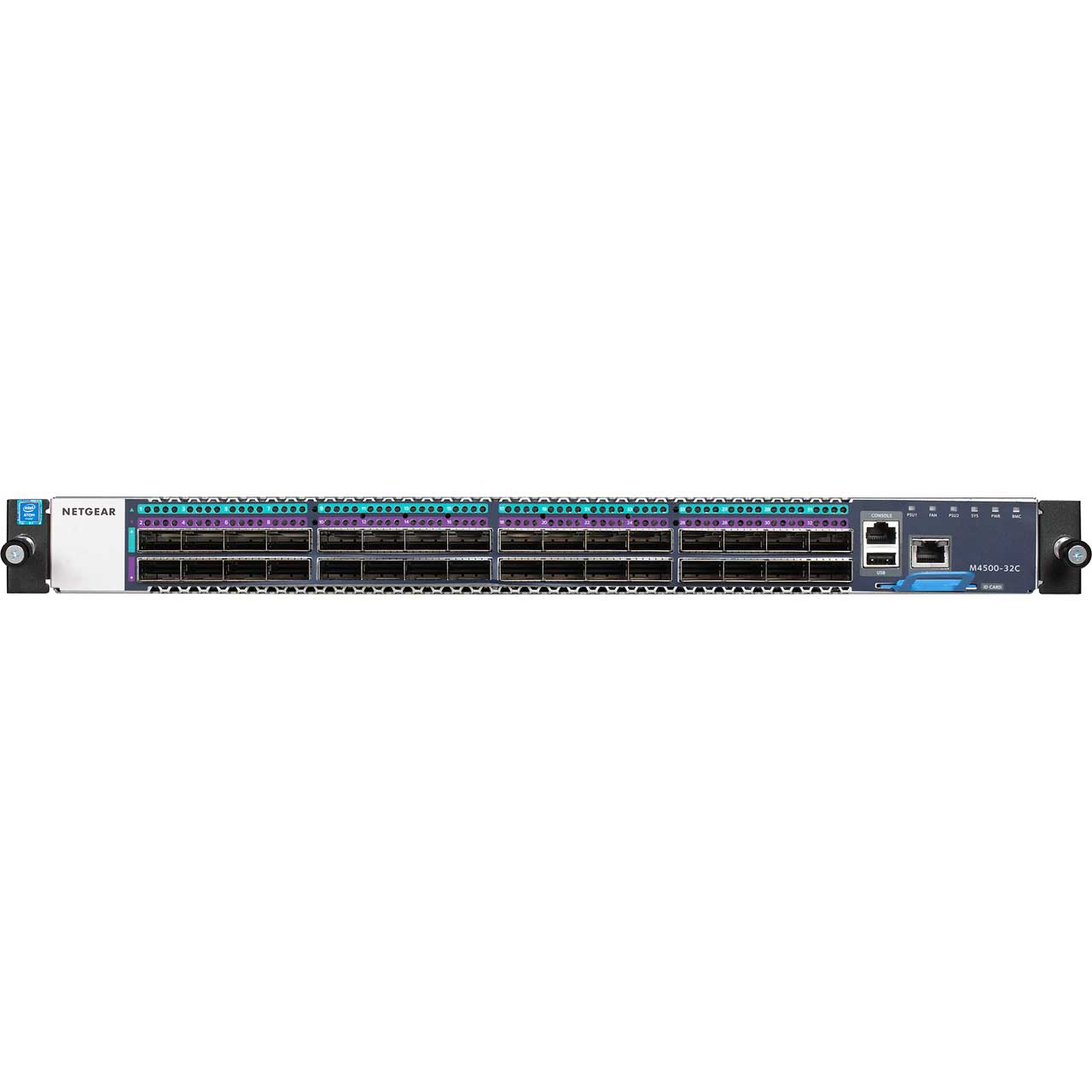

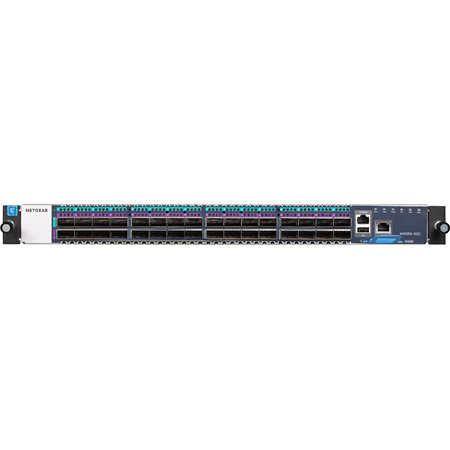

Netgear AV M4500-32C CSM4532 100GE Managed Ethernet Switch

ITEM #: CSM4532-100NAS MFG #: CSM4532-100NAS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$28,562.38

Our Price:

$18,309.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CSM4532-100NAS - Overview

32x100G/50G/40G QSFP28 Managed Switch
Netgear Av M4500-32C CSM4532 switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point.

The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market. They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box.

  • Features:

    • Pre-configured for out-of-the-box use - NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations
    • Cost effective aggregation - Cost effective 100G aggregation and 10G access layer for AV deployments and redundant spine & leaf topologies
    • Simplified system architecture - Optimized for "Spine and Leaf" redundant AV installations, with or without MLAG between spine switches
    • High capacity for AV over IP streams - Up to 320 TX / 320 RX (10 Gigabit) nodes all line rate with each other in a redundant spine and leaf architecture
    • VLAN configuration flexibility - IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across switches on that VLAN

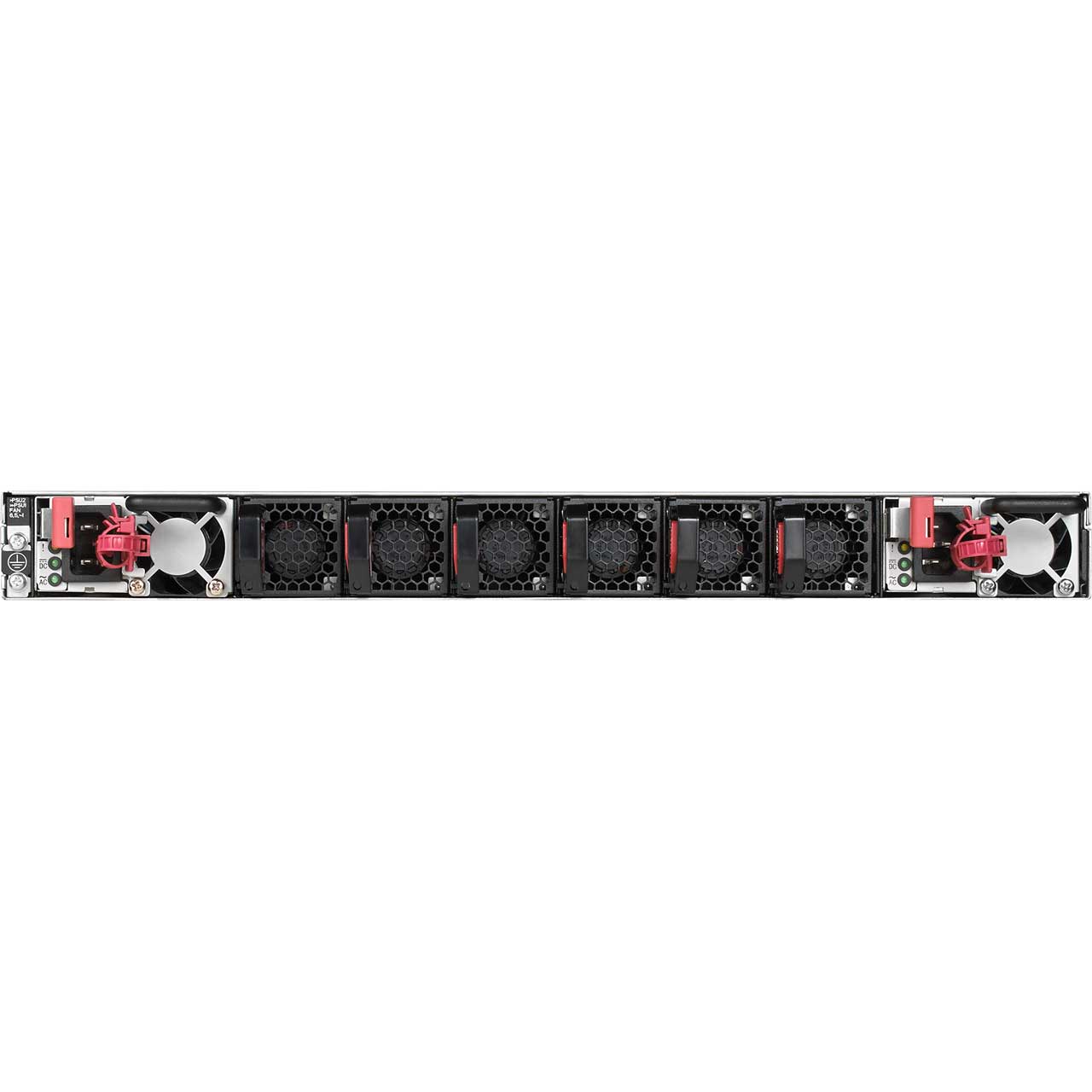

    • Power and fan redundancy - 2 power supply units (APS750W) and 6 redundant fan trays (AFT402) pre-installed for 1+1 power and 4+2 fan redundancy

  • Specifications:

    • Model Description: M4500 Managed Switch with 32x100G QSFP28 ports
    • Ordering Number: CSM4532
    • Acoustics: 64.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source
    • Power Consumption (Max): 426 Watts
    • 25G SFP28 Ports: N/A
    • 100G QSFP28 Ports: 32 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G)
    • PSU and Fans: 2 modular Power Supply Units and 6 modular Fan Trays come pre-installed
    • Management: CLI only (local console, telnet port 1223 and SSH port 1234)
    • Management Ports: 1G Ethernet service port for out-of-band management (OOB, RJ45). RS232 straight-through serial RJ45 for local management console
    • Form Factor: Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)
    • Dimensions (WxDxH): 440 x 508 x 43.2 mm. Weight: 9.78 Kg (21.54lb)

  • Item Includes:

    • 1x Netgear Pro Av M4500-32C CSM4532 100GE Managed Ethernet Switch

  • GTIN:

    0606449151626
