Cabletronix DT-HDIPSS IP Streaming Server - DirecTV DRE Compatible

ITEM #: CT-DT-HDIPSS MFG #: DT-HDIPSS

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CT-DT-HDIPSS

DT-HDIPSS - Overview

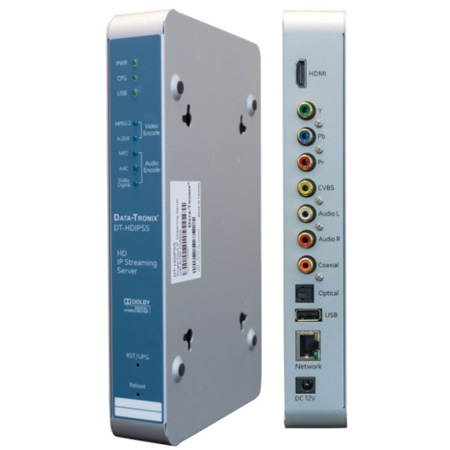

The Cabletronix DT-HDIPSS HD IP Streamer allows the user to stream any one audio/video source over an IP Network to multiple TV's or connected computers within the IP Network and is compatible with DRE Plus managed systems. The IP Streamer accepts an HDMI, component, or composite video input and the unit is designed to deliver a rich HD/SD streaming experience for its users deploying MPEG-2 or MPEG-4 standards.

The DT-HDIPSS streaming server enables high-definition streaming with resolutions up to 1080p, providing a high-quality viewing experience for your customer. The unit is MPEG-2 or MPEG-4 switchable and supports UDP/RTP Streaming. The compact design saves space and is easily controlled via a web UI for rapid deployment.

  • Specifications:

    • Interfaces
    • Ethernet (output): Combined IP Output Port (1Gbps)/Management Port 10Mbps)
    • USB: USB 2.0
    • Video Input: HDMI, YPbPr, CVBS
    • Audio Input: Analog, Coaxial SPDIF, Optical SPDIF

      Encoding
    • Output Video Format: MPEG-2, H.264
    • Output Audio Format: MPEG-1 Layer 2(MP2), MPEG-2 A AC, MPEG-4 A AC, Supports Dolby® Digital encoding*
    • Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • Output Video Bitrate: MPEG-2HD: 10-20 Mbps, MPEG-2 SD: 2-8 Mbps, H.264 HD: 2-10 Mbps, H.264 SD: 1-4 Mbps
    • Output Audio Bitrate: 96, 128, 192, 256, 384 Kbps
    • Streaming Protocols: HTTP, UDP/RTP multicast, UDP/RTP unicast, TCP unicast

      USB Media Player
    • File Format Supported: A MPEG Transport Stream file (with file name suffix ".ts"),
    • A Matroska or WebM file (with file name suffix "mkv" or ",webm")
    • An Ogg file (with file name suffix ".ogg", ".ogv", or "opus")
    • A MPEG-1 or 2 Program Stream file (with file name suffix "mpg")
    • A MPEG-4 Video Elementary Stream file (with the name suffix "m4e")
    • A H.264 Video Elementary Stream file (with the name suffix ".264")
    • A H.265 Video Elementary Stream file

      MISC
    • Digital Living Network:
    • Alliance (DLNA) MediaServer: 1.5
    • Closed Caption: Yes
    • Power Supply: 12VDC 1.5AMP
    • Consumption: 500mA
    • Operating Temperature: 32° to 113°F ( 0° to 45°C)
    • Storage Temperature: 14° to 140°F ( -10° to 60°C)
    • Dimension: 9.29 x 6.10 x 1.37" (236 x 155 x 35mm)
    • Weight: 2LBs (940g)

      Notes:
      *Manufactured under license from Dolby Laboratories.
      *Specifications subject to change without notification.
