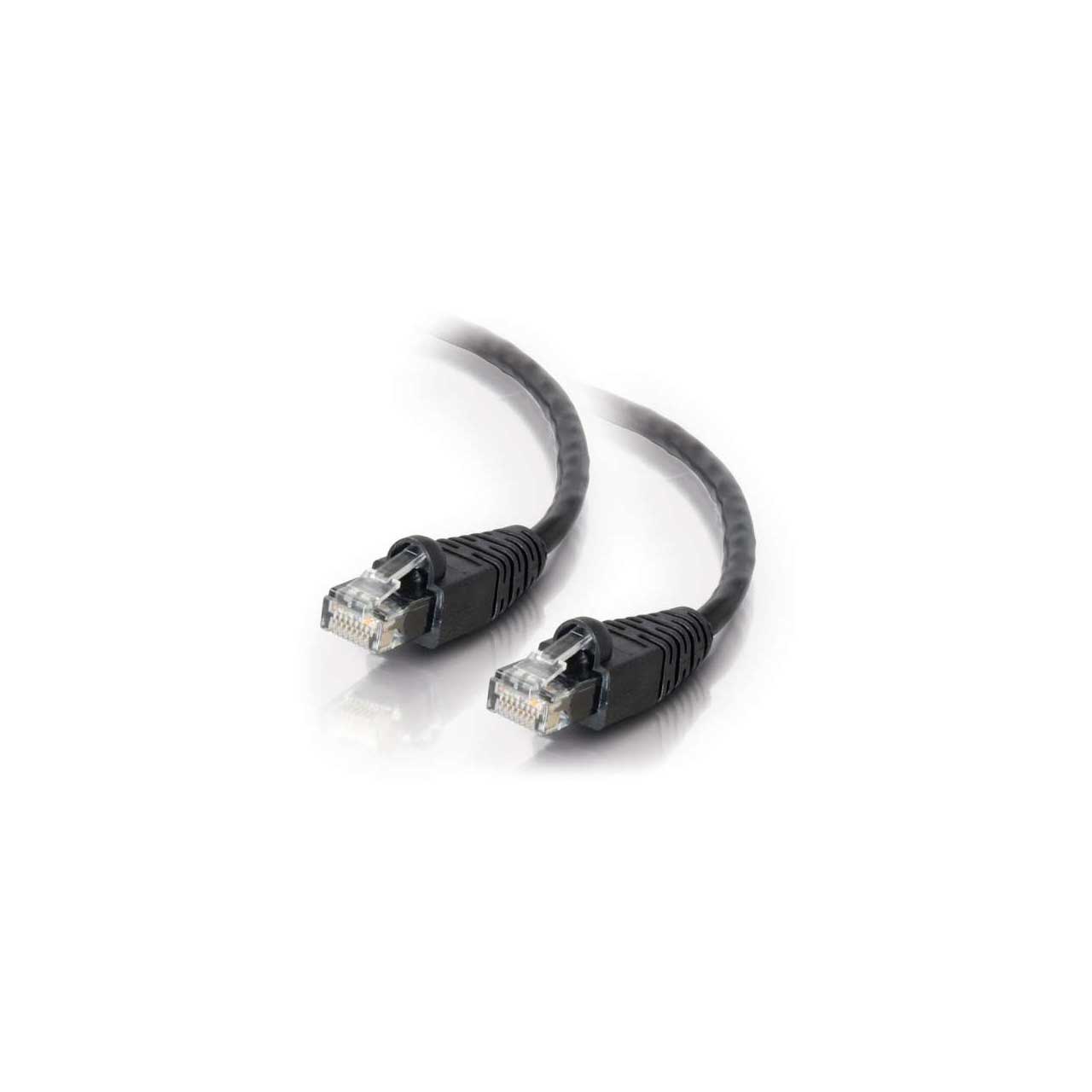

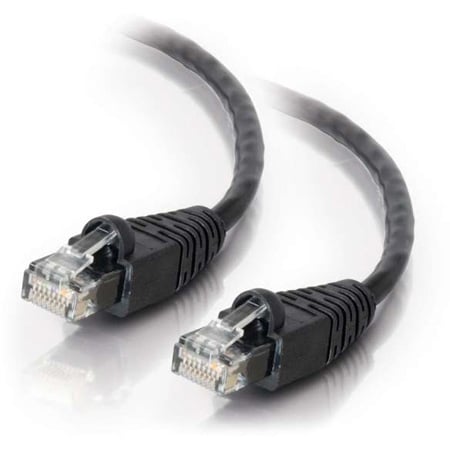

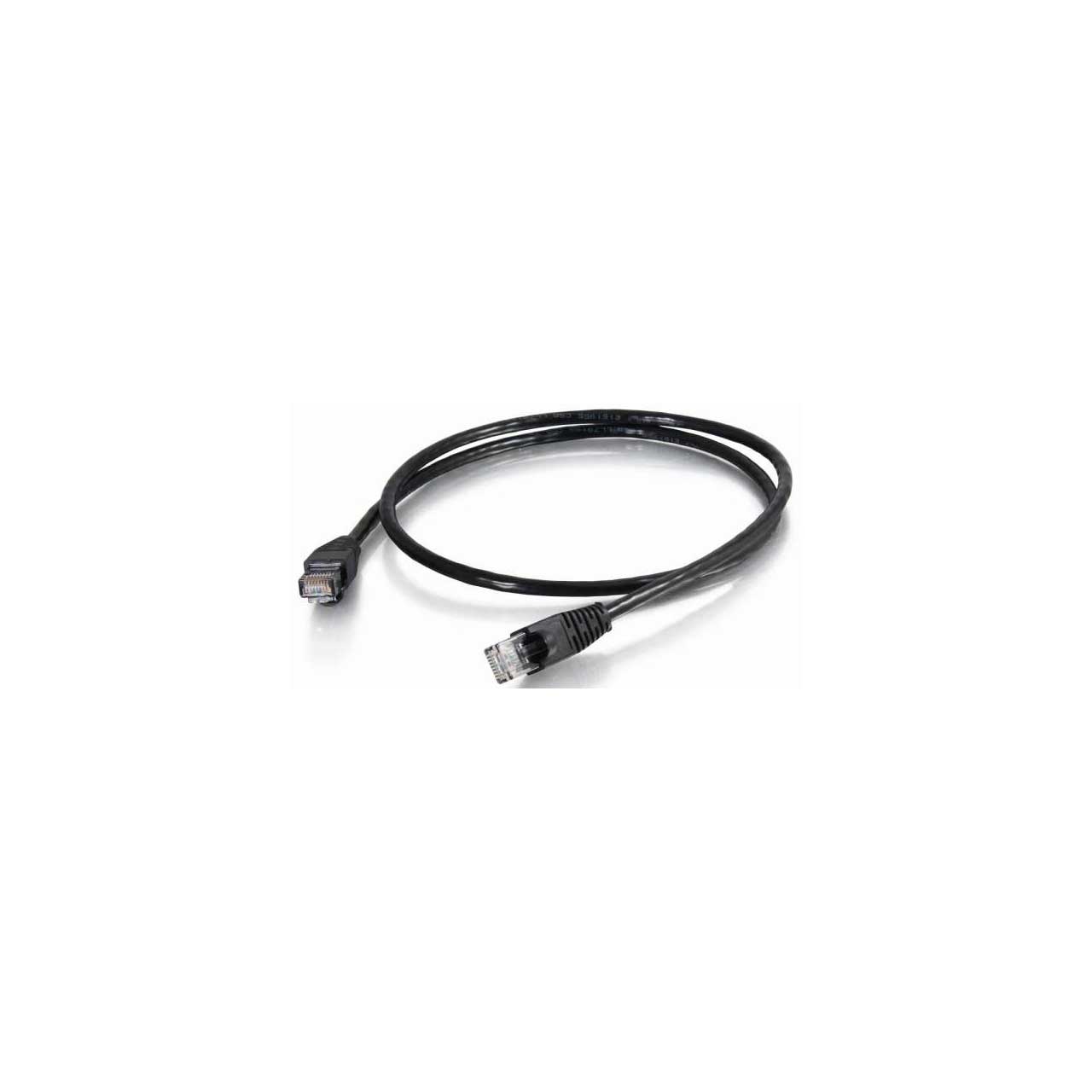

Cables To Go 10262 CAT5E Snagless Unshielded Ethernet Network Patch Cable - 14 Foot

ITEM #: CTG-10262 MFG #: 10262

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$13.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


10262 - Overview

The Cables To Go 10262 is For voice/data/video distribution, this cable will handle bandwidth-intensive applications. Meets all TIA/ANSI Cat5e standards and the stringent TAA compliance requirements for anyone who needs to procure products exclusively manufactured in countries on the Trade Agreement Act list.

Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point.

Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code your network installation.

  • Features:

    • 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
    • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
    • 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
    • Voice

  • Specifications:

    • Length : 14.00 Foot
    • Conductor: 4-pair (UTP) 24 AWG stranded copper
    • Connector: 50 micron gold-plated RJ45
    • Conductor DC Resistance: 89 Ohm/km (maximum)
    • Insulation Resistance: 100 Ohm/km (minimum)
    • Dielectric Strength: 500 MV/m

      Insulation
    • Material - H-D PE
    • Diameter - 0.95 ± 0.05mm
    • Colors - Blue/Blue-White, Orange/Orange-White, Green/Green-White, Brown/Brown-White

      Jacket
    • Material - FR-PVC
    • Nominal Thickness - 0.55mm
    • Outer Diameter - 5.30mm

      Connector
    • Material - Polycarbonate
    • Hood Material - Molded PVC
    • Contact Material - Copper alloy plated with gold-50µ
    • Number of contacts - Eight

  • GTIN:

    0757120102625
