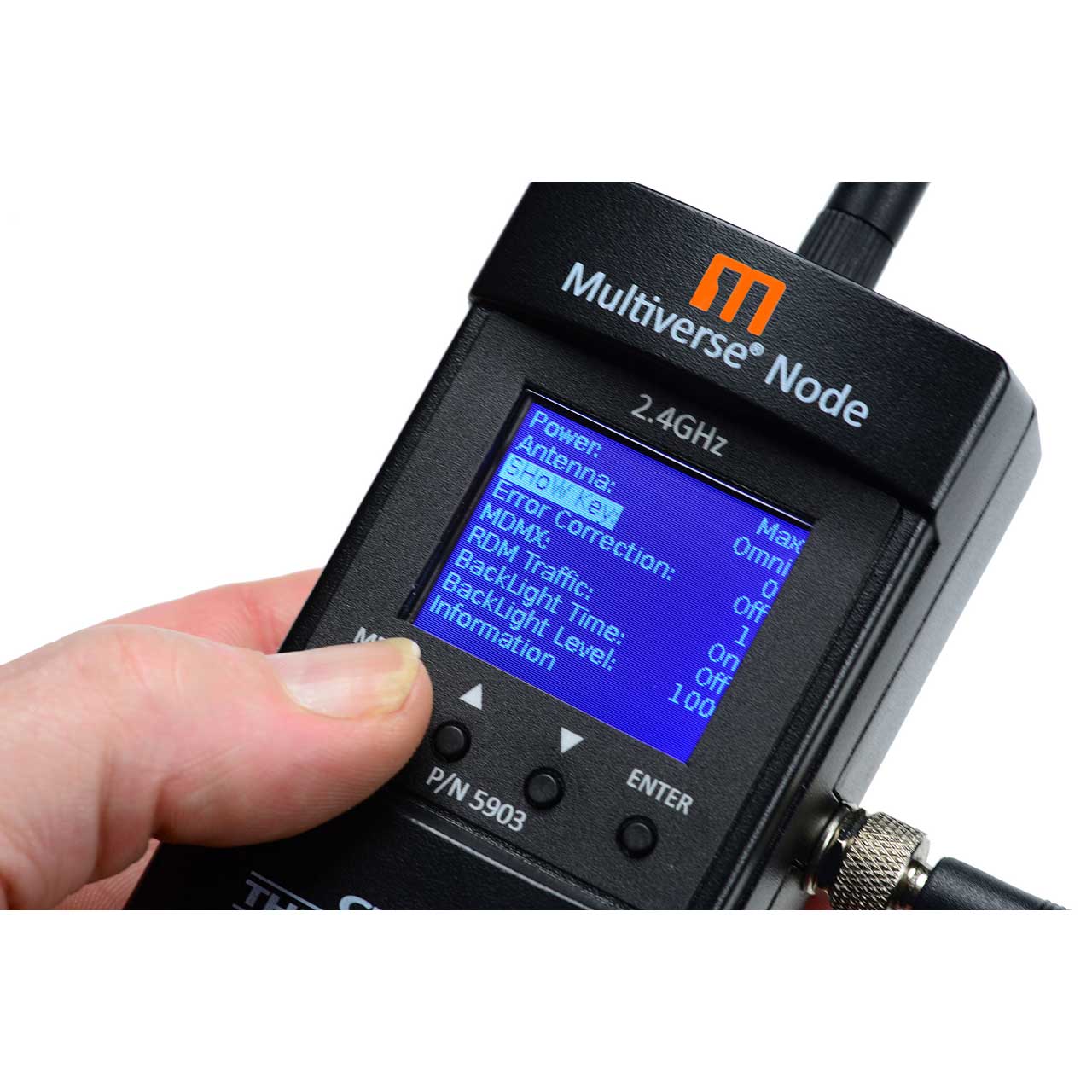

Each City Theatrical Multiverse Node 5903 is a transceiver. As a single universe transmitter, it functions in a similar plug and play manner to the Multiverse® SHoW Baby® and legacy SHoW DMX SHoW Baby® products, and also has a full user interface, with four buttons and a backlit LCD display. As a receiver, the Multiverse Node is the primary single universe standalone receiver in the Multiverse system, and can be part of a larger multi-universe setup.
Multiverse Node models include:
The Multiverse Node 900MHz/2.4GHz (P/N 5902), which is licensed for use in North America only. It contains two built-in radios, 2.4GHz and 900MHz, which allow the user to select which single universe to transmit, and which radio band to use via the SHoW ID. This model is shown in the diagram below.

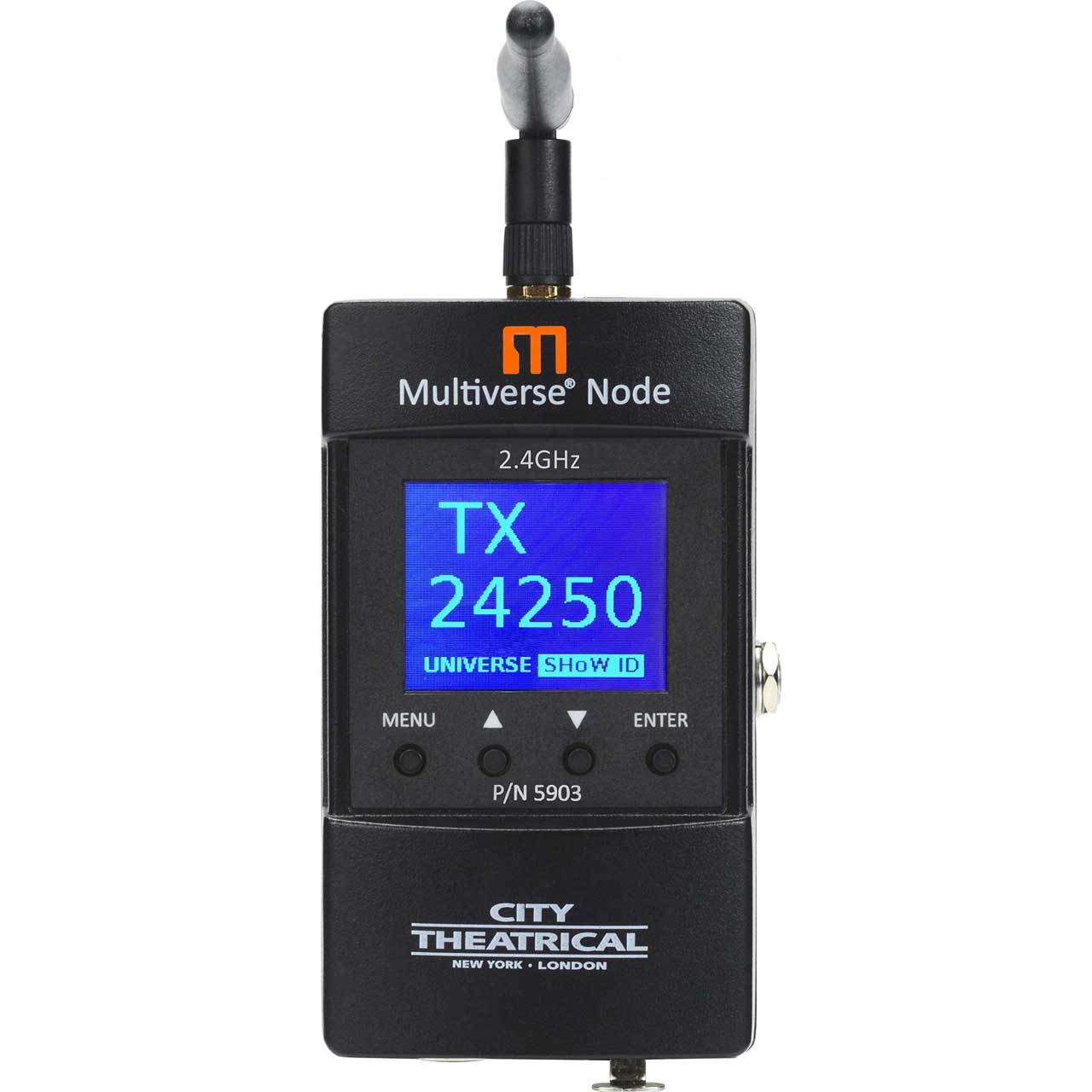

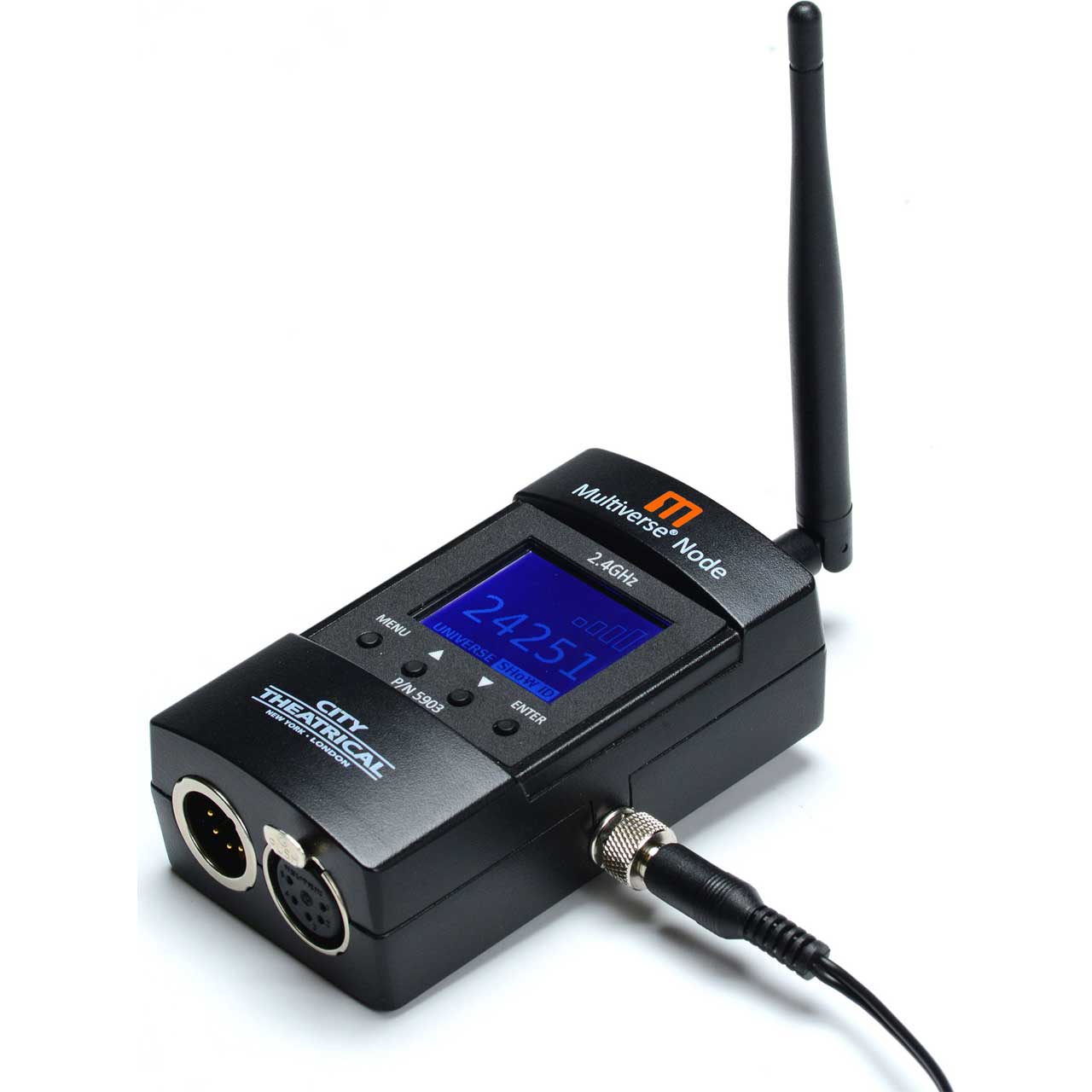

The Multiverse Node 2.4GHz (P/N 5903) contains a 2.4GHz radio and can be used worldwide.
