Dream Chip 001-00020-01-K16 Atom One Global Shutter Camera with Fixed C-Mount 16mm Lens 2SDI Output Genlock and RS485

ITEM #: DC-001-00020-16K MFG #: 001-00020-01-K16

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$4,128.80

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


001-00020-01-K16 - Overview

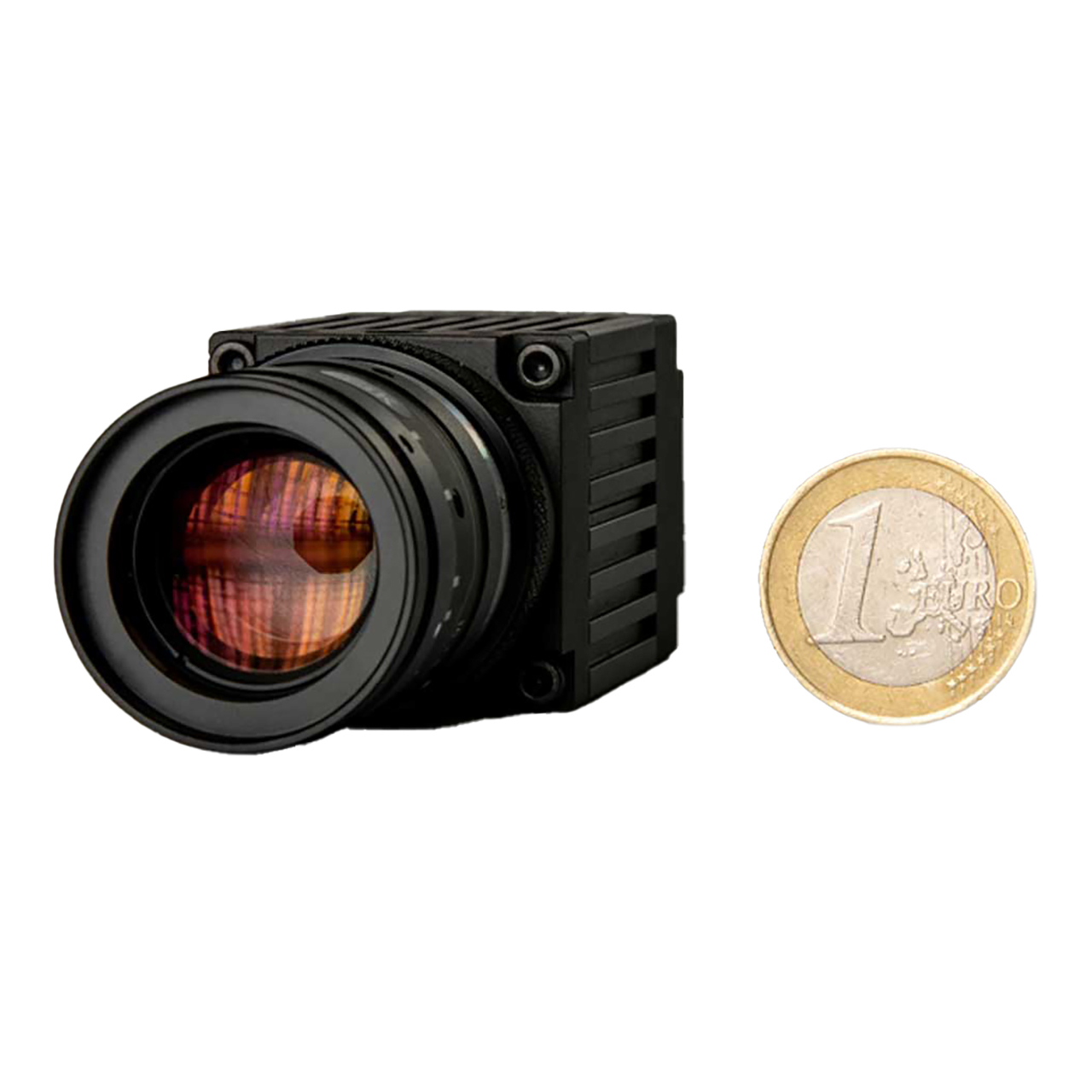

The Dream Chip Atom One DC-001-00020-16-K is a Global Shutter Camera with Fixed C-Mount 16mm Lens, 2SDI Output Genlock and RS485.

  • Features:

    • Low Latency (<100 ohms/microseconds)
    • Defect Pixel Correction (auto/manual)
    • Black Level, White Level, Master Black
    • White Balance / Auto White Balance
    • Flare Compensation
    • Lens Shading Correction
    • High Quality Color Interpolation (debayer)
    • Color Matrix / Color Correction
    • Color Temperature Settings / Profiles
    • Multi-Matrix Color Correction (12/24/32 Angles)
    • RGB LUT Programmable
    • Knee Function
    • Denoise Filter
    • Detail Filter
    • Color Post Processing (lumi, contr, sat, hue)
    • SDI Range Adjustable (black/white)
    • Mirror/Flip
    • Image Statistics (white balance, exposure)
    • Auto Exposure / Auto Gain

  • Specifications:

    • Overview
    • Resolution: Full HD 1920x1080
    • Mount: C-Mount
    • Size: 32mm x 32mm x 71mm
    • Weight: 0.22 lbs
    • Mount Points: 2x 1/4inch, 6x M3
    • Microphone: No

      Sensor
    • Type: 1 / 1.23inch
    • Pixel Size: 5.86um
    • Diameter: 13.1mm
    • Filter: IR Cut
    • Shutter Type: Global
    • Dynamic: 12 bit / 72 dB
    • Sensitivity ISO: Analog 125 - 2000 / Digital 12800
    • Sensitivity 2000 Lx 50Hz: F11
    • Maximum FOV (H): 89° @ 6mm Lens

      Electric

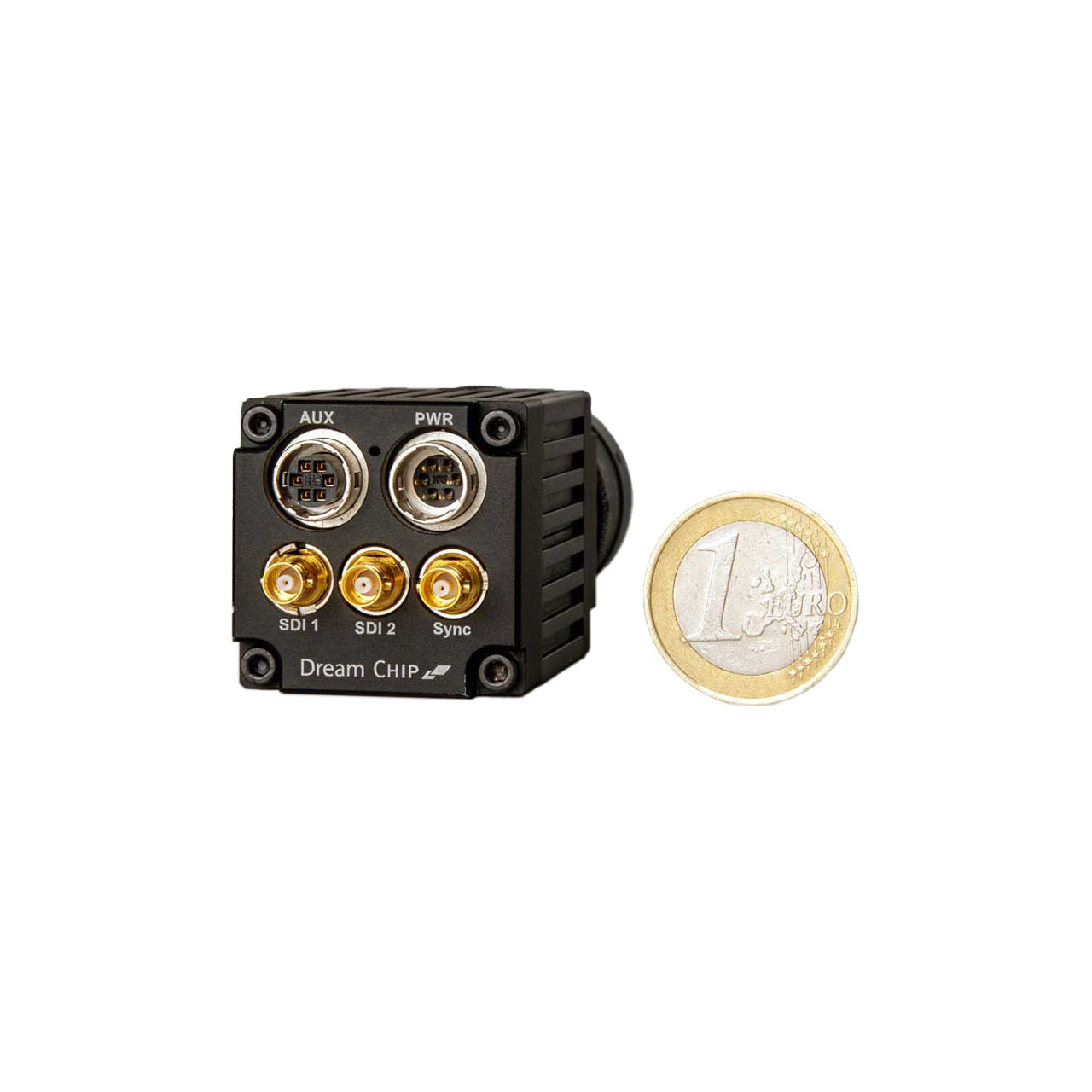

    • SDI Output: 2x HD-BNC / 3G SDI
    • Control: RS485
    • Genlock: Trilevel Sync in / out
    • Embedded Time Code: Yes
    • Voltage Range: 6V-36V
    • Power: 3.4watt 280mA@12V
    • Power Supply: 6-36V
    • Cooling: Passive

      Camera Features
    • Color Control Unit: Yes
    • 4K to 2K down-scale with oversampling: No
    • Independent LUT: Yes

      Video Formats
    • 10 bitYUV422: Yes
    • RAW: Yes
    • 1920x1080 Full HD Framerates: 23, 98, 24, 25, 29.97, 30, 50, 50.94, 60, 50i, 59.94i, 60i
    • 3840x2160 UHD: No
    • 4096x2160 4K Framerates: No
